Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. .
  2. Remove the two nuts. Discard the nuts.

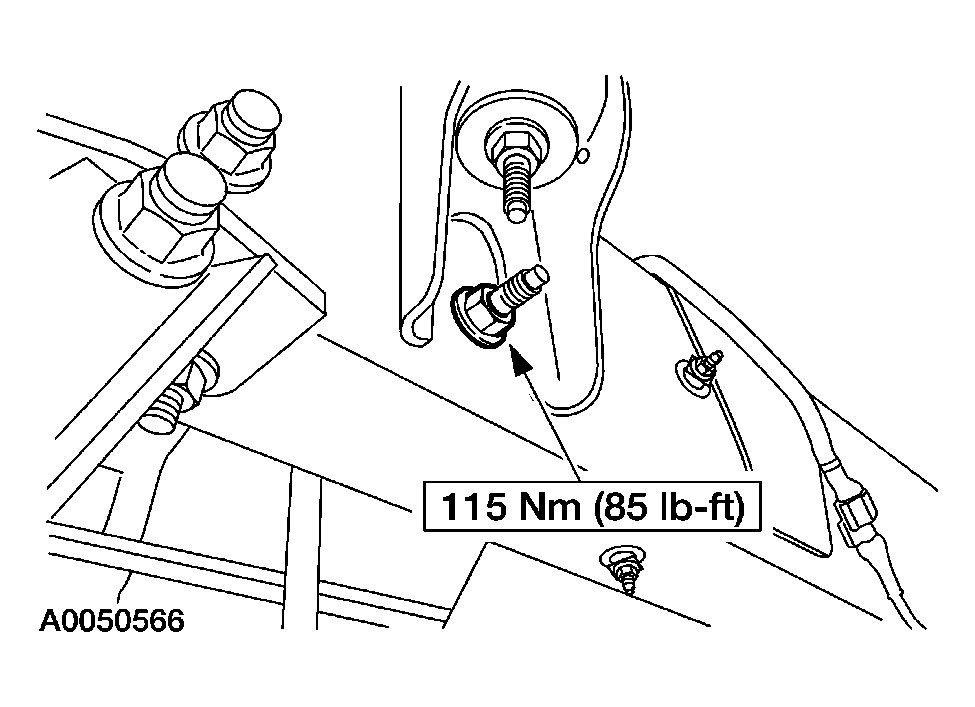

    Fig 1: Removing Nuts
    G04025785Courtesy of FORD MOTOR CO.
  3. Remove the two nuts, bolts and the stabilizer bar links. Discard the nuts.

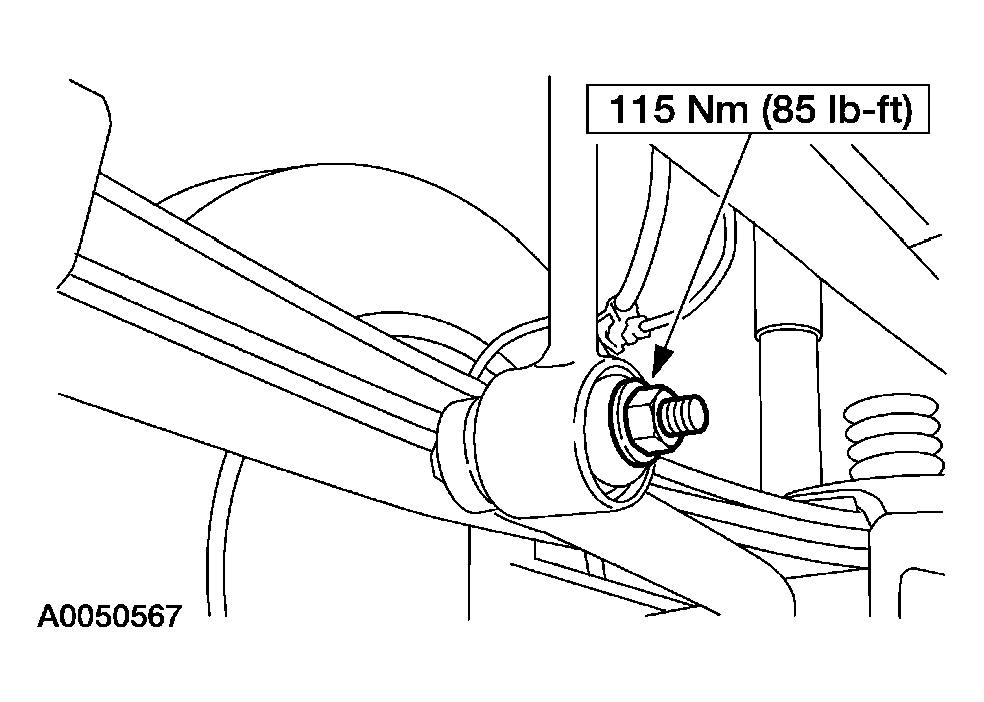

    Fig 2: Removing Stabilizer Bar Links
    G04025786Courtesy of FORD MOTOR CO.
  4. Remove the four nuts, bolts and the stabilizer bar. Discard the nuts.

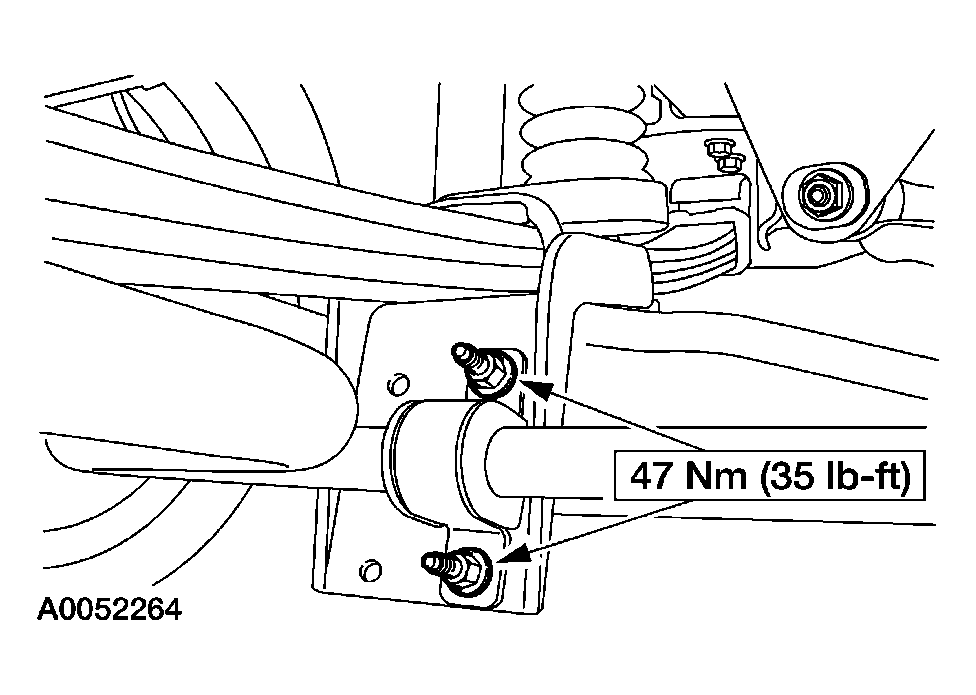

    Fig 3: Removing Stabilizer Bar
    G04025787Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
