Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger, 2002 Ford Explorer Sport Trac, 2002 Ford Explorer Sport, and 2002 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

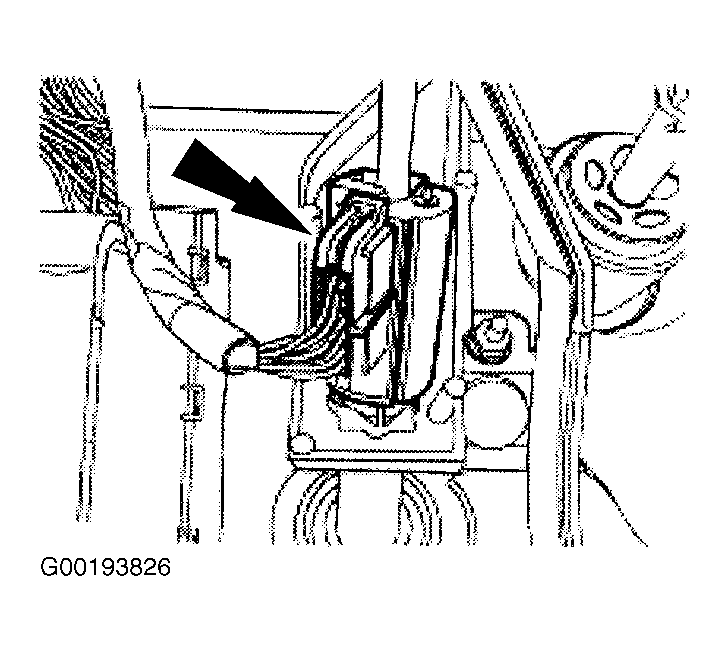

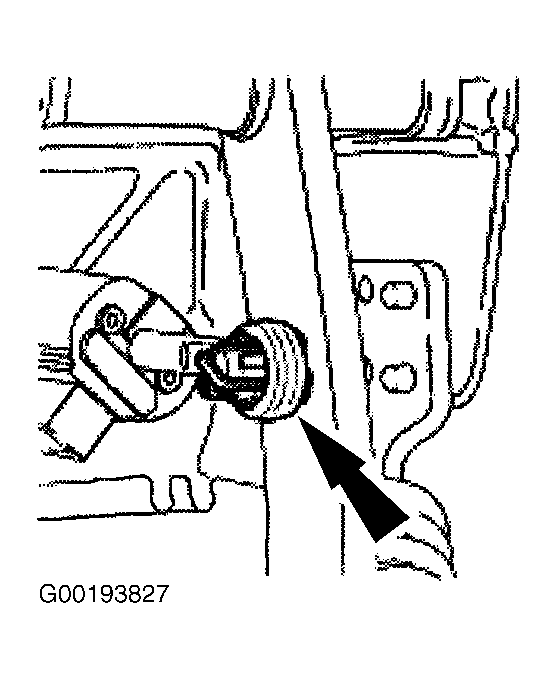

  1. Disconnect the Clutch Pedal Position (CPP) switch harness connector. See Figure. CPP switch is located on clutch pedal push rod. Disconnect the clutch master cylinder rod from the clutch pedal arm. See Figure. Remove and discard the clutch master cylinder push rod bushing. See Figure.

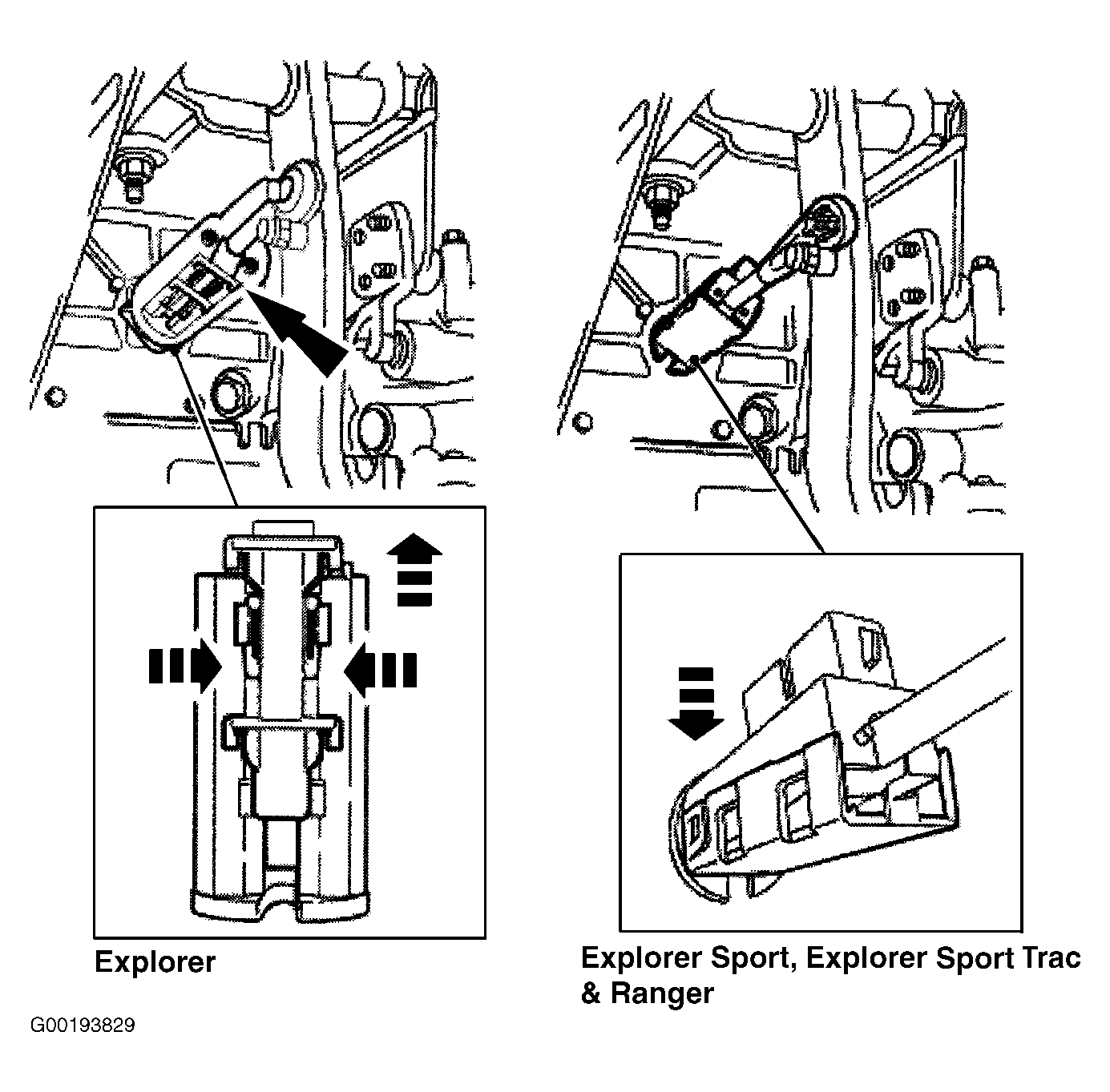

  2. Remove the CPP switch by pinching the lock tabs and pulling the clip forward. See Figure.
  3. Rotate and snap the CPP switch from the clutch master cylinder rod. To install, reverse the removal procedure.
