Brake Pedal and Bracket: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If equipped with adjustable pedals, when removing the adjustable pedal assembly, make sure the pedals are adjusted to the full forward position.
  1. Depower the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
    2. CAUTION: The brake pedal must be connected to the booster rod, in an at-rest position, before removing the speed control deactivator switch or the switch will be damaged.
  2. If equipped, remove the speed control deactivator switch.
  3. Disconnect the booster rod redundant self-locking pin cover and the self-locking pin.
  4. Remove the stoplamp switch bushing, spacers and the brake booster rod from the brake pedal and position the stoplamp switch aside.
  5. If equipped with power adjustable pedals, disconnect the adjustable pedal motor electrical connector.
  6. If equipped with adjustable pedals, disconnect the accelerator pedal motor electrical connector.
  7. Remove and discard the 4 brake booster nuts.
  8. Position the brake master cylinder and brake booster assembly forward to allow the brake pedal assembly to clear the studs.
  9. Remove the 3 brake pedal bracket nuts.
  10. Remove the 2 wiper arms.
  11. Remove the cowl grille.
    • The grille is secured with 14 spring clips. Pull upward on the grille to release the clips.
  12. Remove the 2 instrument panel support bracket bolts and the 2 nuts.
    Fig 1: Removing Instrument Panel Support Bracket Bolts And Nuts
    G03944792Courtesy of FORD MOTOR CO.
  13. Remove the front floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  14. Remove the 4 instrument panel support bracket bolts from the LH and RH instrument support brackets.

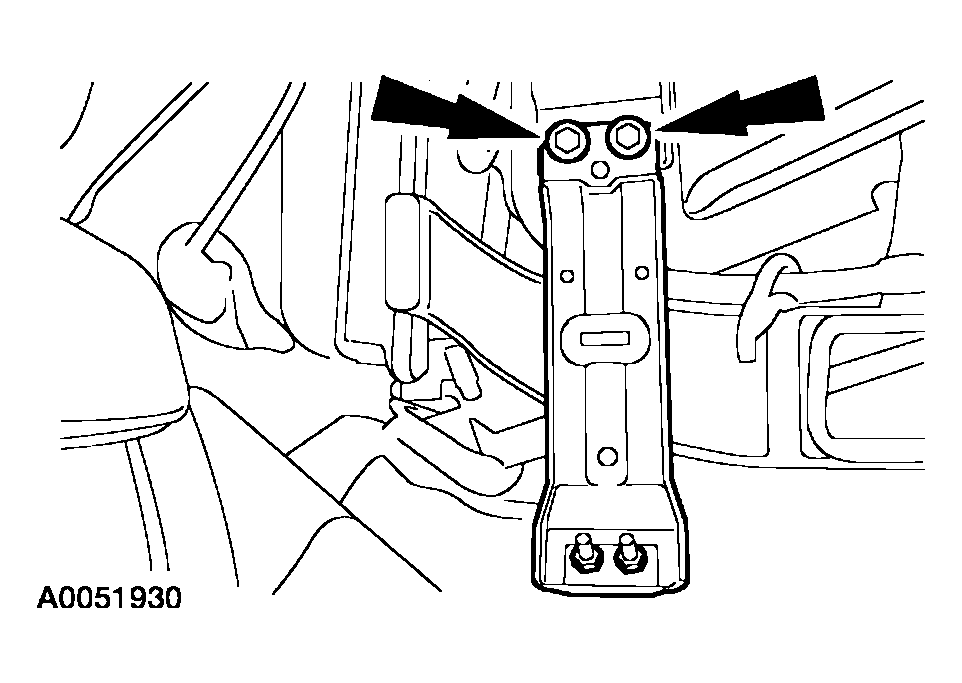

    Fig 2: Removing Instrument Panel Support Bracket Bolts From LH And RH Instrument Support Brackets
    G03944793Courtesy of FORD MOTOR CO.
  15. Remove the 2 door scuff plates.
  16. Remove the retainer and the 2 A-pillar lower trim panels.
  17. Remove the 2 instrument panel side finish panels.
  18. Remove the 4 A-pillar passenger assist handles caps.
  19. Remove the 4 bolts and the 2 A-pillar passenger assist handles.
  20. Remove the 2 windshield side garnish mouldings.
  21. Remove the defroster grille.
  22. Remove the duct bolt and the top instrument panel-to-cowel bolt.
    Fig 3: Removing Duct Bolt And Top Instrument Panel-To-Cowel Bolt
    G03944794Courtesy of FORD MOTOR CO.
  23. Remove the 2 steering column opening cover screws and the steering column opening cover panel.
    24. CAUTION: Do not allow the steering wheel to rotate while the steering column intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence the steering column shaft has rotated, the clockspring must be removed and centered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  24. Secure the steering wheel to prevent it from rotating.
  25. Remove the steering intermediate shaft pinch bolt and separate the steering shafts.
  26. Loosen the bolt and disconnect the bulkhead electrical connectors.

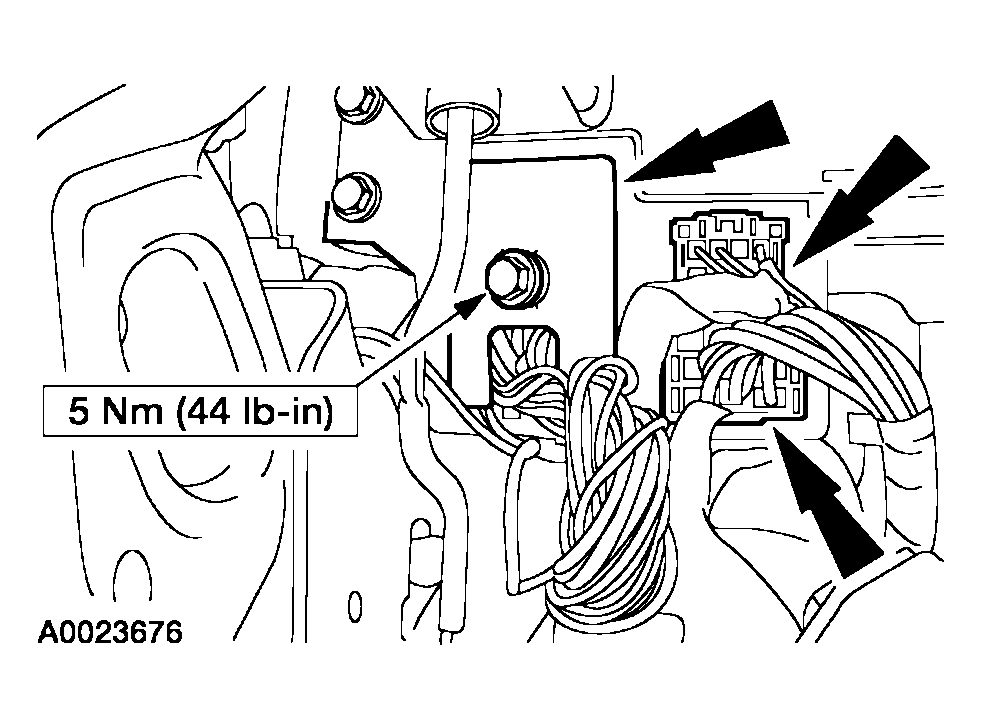

    Fig 4: Disconnecting Bulkhead Electrical Connectors
    G03944795Courtesy of FORD MOTOR CO.
  27. Remove the 4 instrument panel to cowl support bolts.
  28. Position the instrument panel approximately 25.4 mm (1 inch) away from the dash panel.
  29. Remove the brake pedal assembly from the vehicle.
