Toe Adjustment: Front

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the straight-ahead position using a suitable holding device.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.

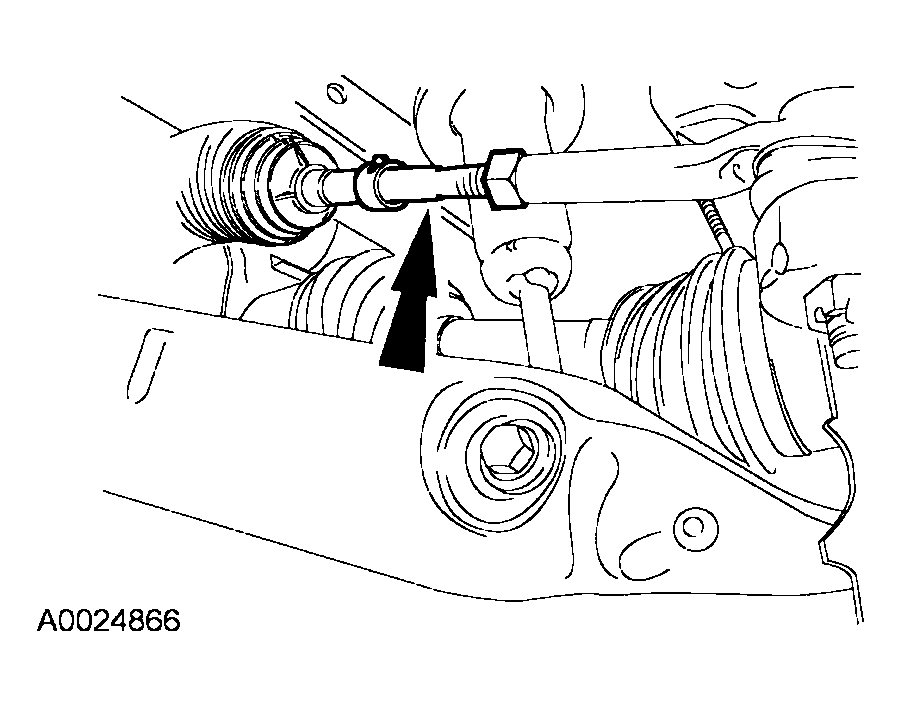

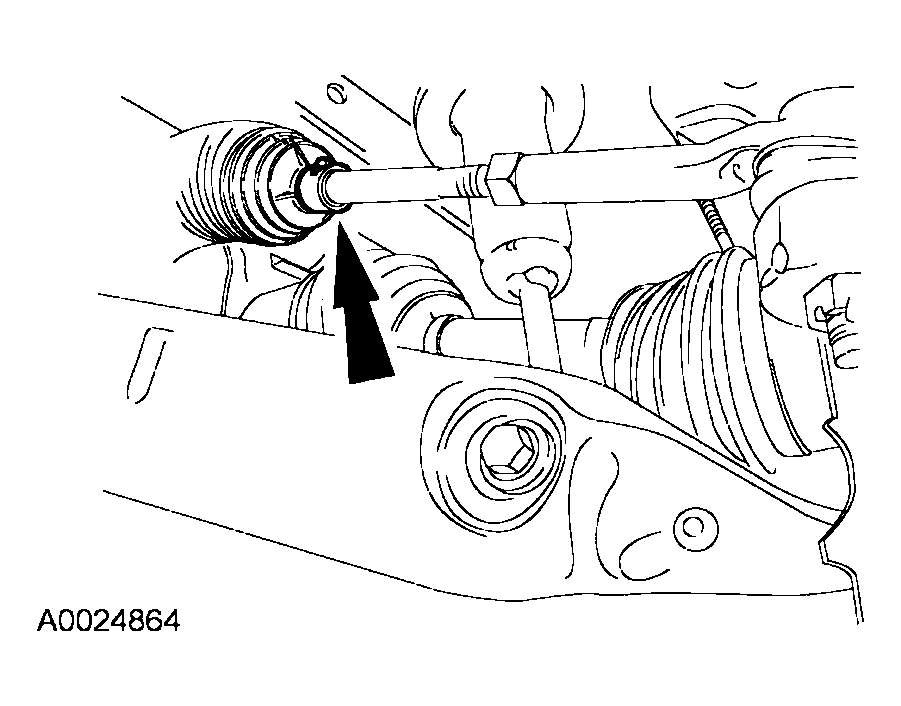

Fig 1: Removing Clamps

Courtesy of FORD MOTOR CO.

Remove the clamps.
Loosen the nuts.
- Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

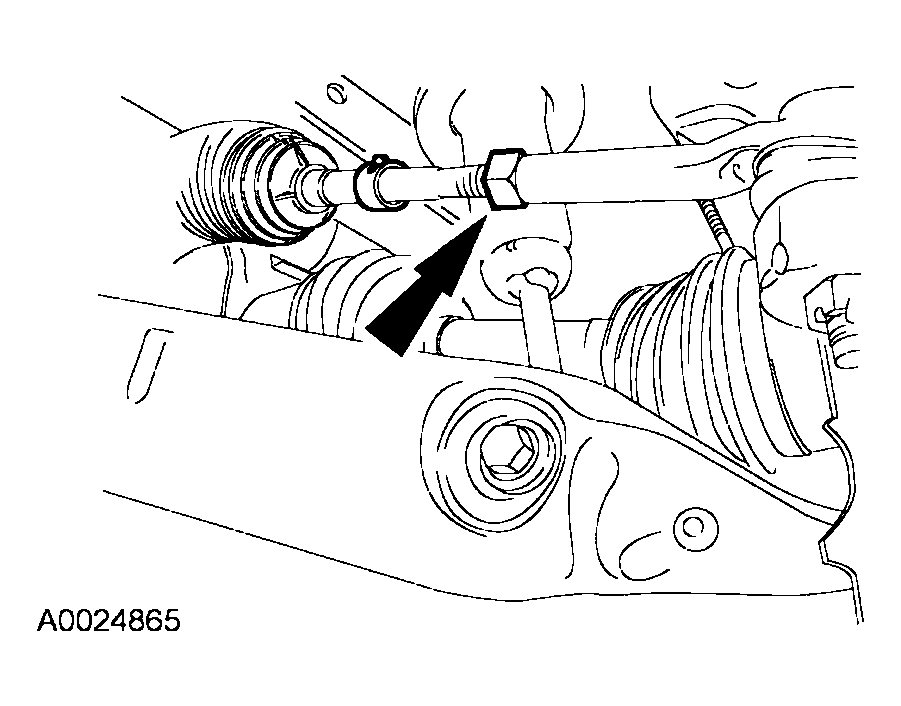

  Fig 2: Loosening Nuts
  Courtesy of FORD MOTOR CO.
Rotate the front wheel spindle tie rods.

Fig 3: Rotating Front Wheel Spindle Tie Rods
Courtesy of FORD MOTOR CO.
Start the engine and recenter the steering wheel.
- Recheck the toe settings and adjust if necessary.

CAUTION: Make sure to hold the tie rod end stationary with a wrench while tightening the nut or damage to the boot can occur.

NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

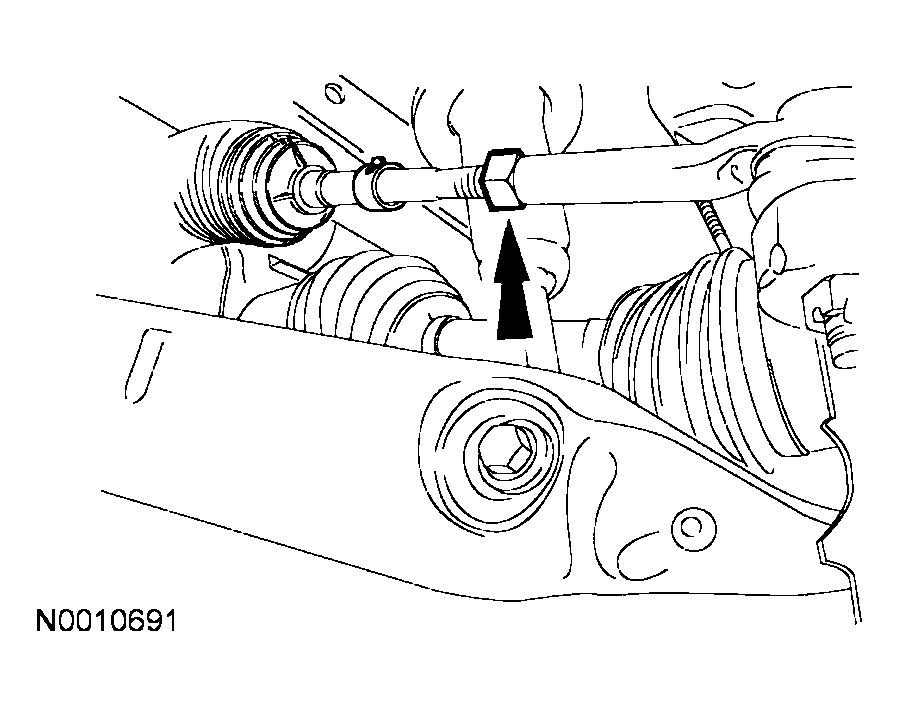

Fig 4: Tightening Nut

Courtesy of FORD MOTOR CO.

Tighten to 70 Nm (52 lb-ft).
Install the clamps.

Fig 5: Installing Clamps
Courtesy of FORD MOTOR CO.
