Power Steering Pump Pulley - 4.6L Engine: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  2. Rotate the tensioner and remove the engine accessory drive belt from the power steering pump pulley.
  3. Using the special tool, remove the pulley.

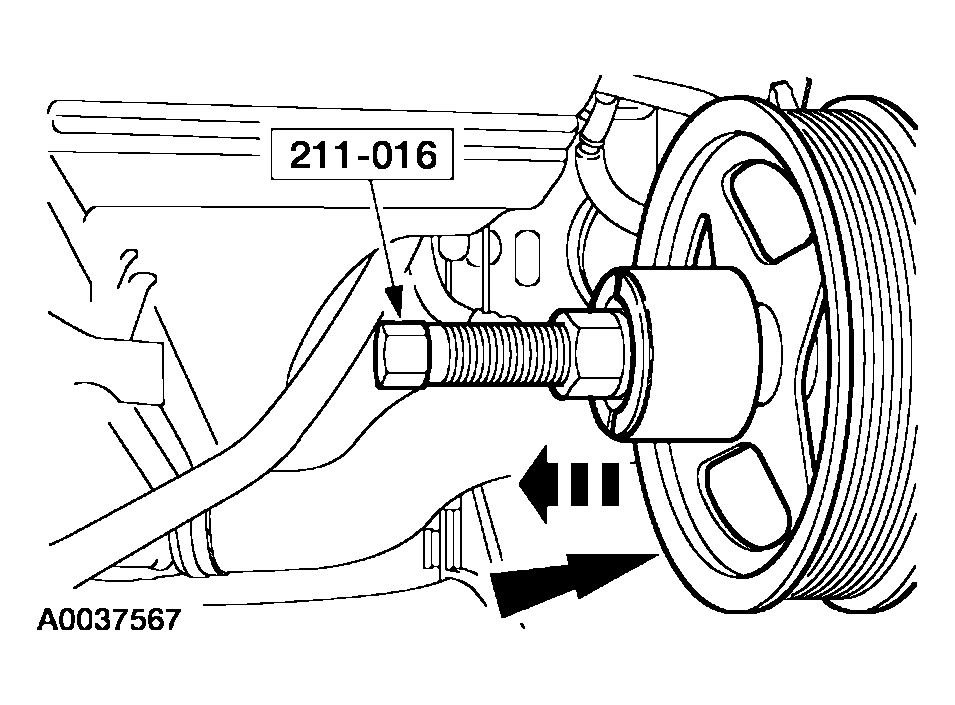

    Fig 1: Removing Pulley Using Special Tool
    G03945466Courtesy of FORD MOTOR CO.
