Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1 and Fig 2 .

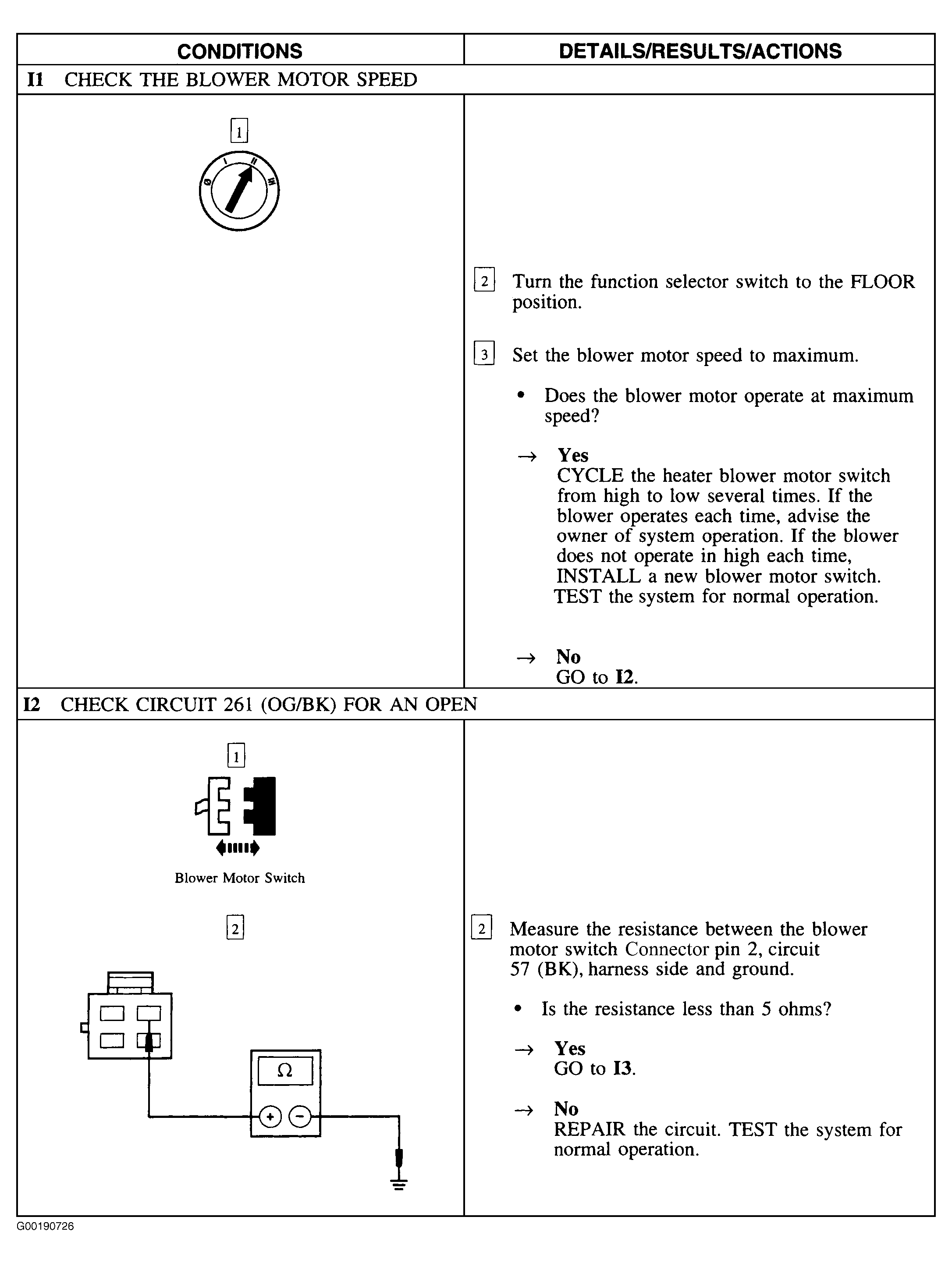

Fig 1: Test I (1 Of 2 - Steps I1-I2)
G00190726Courtesy of FORD MOTOR CO.
Fig 2: Test I (2 Of 2 - Step I3)
G00190727Courtesy of FORD MOTOR CO.
