Removal & Installation
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

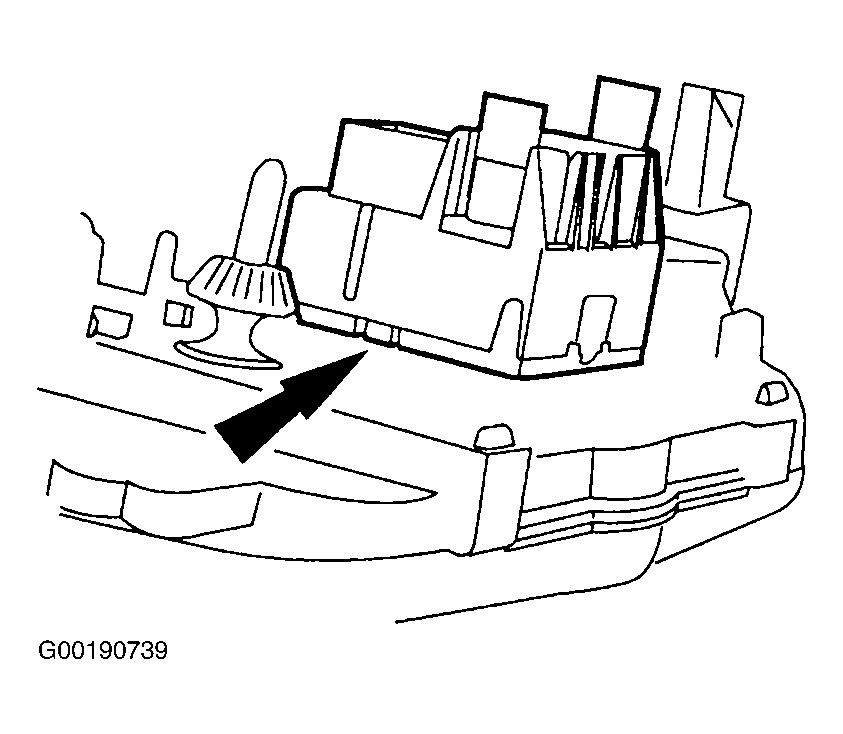

Remove instrument panel center finish panel. See INSTRUMENT PANEL CENTER FINISH PANEL . Remove function selector switch knob. Push in locking tab on one side of function selector switch and remove function selector switch. See Fig 1. To install, reverse removal procedure.
NOTE:
NOTE: Align function selector switch locking tabs with holes in housing and press function selector into housing. Verify that both locking tabs are secured.
