Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1 and Fig 2 .

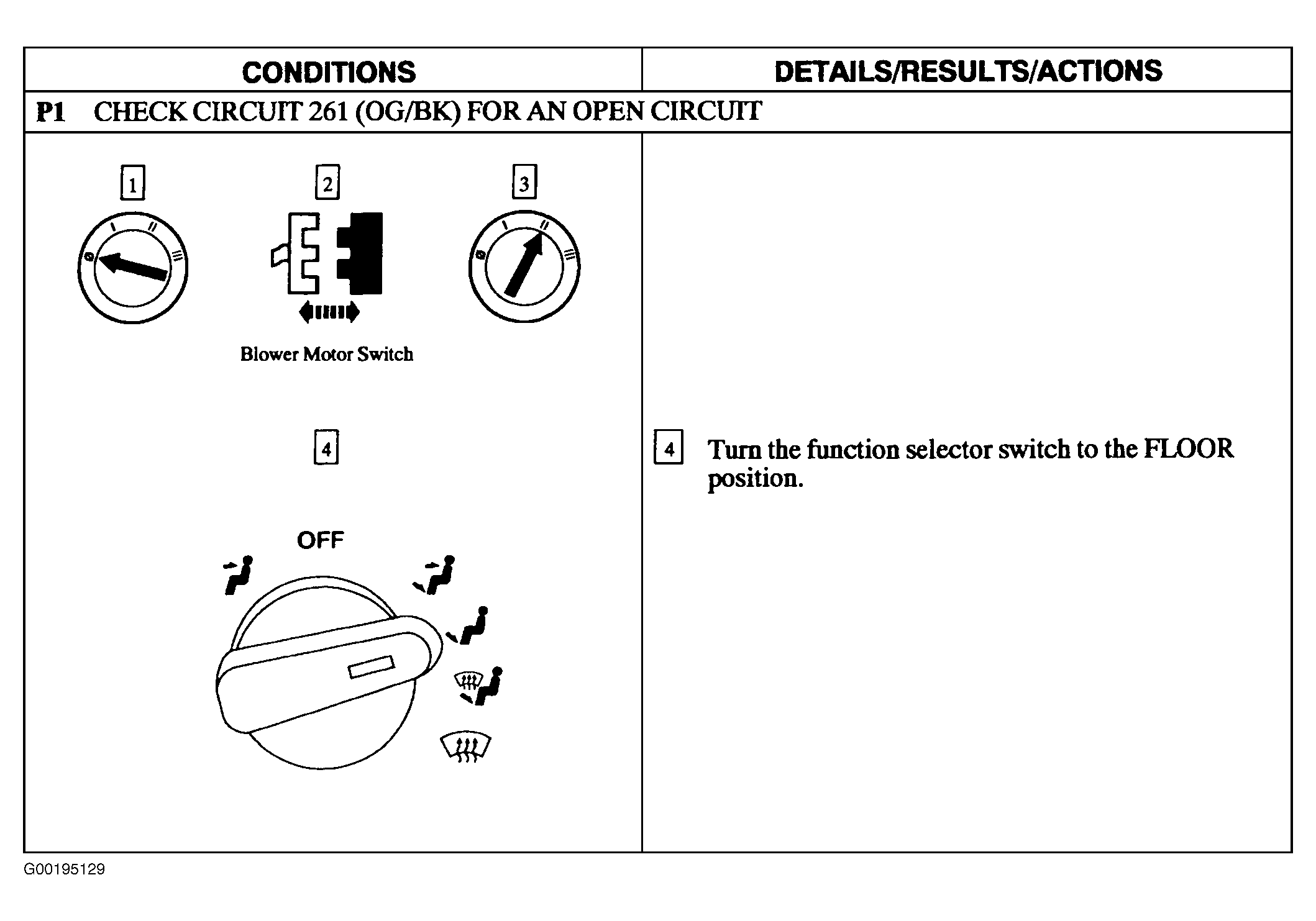

Fig 1: Test P (1 Of 2 - Step P1)
G00195129Courtesy of FORD MOTOR CO.

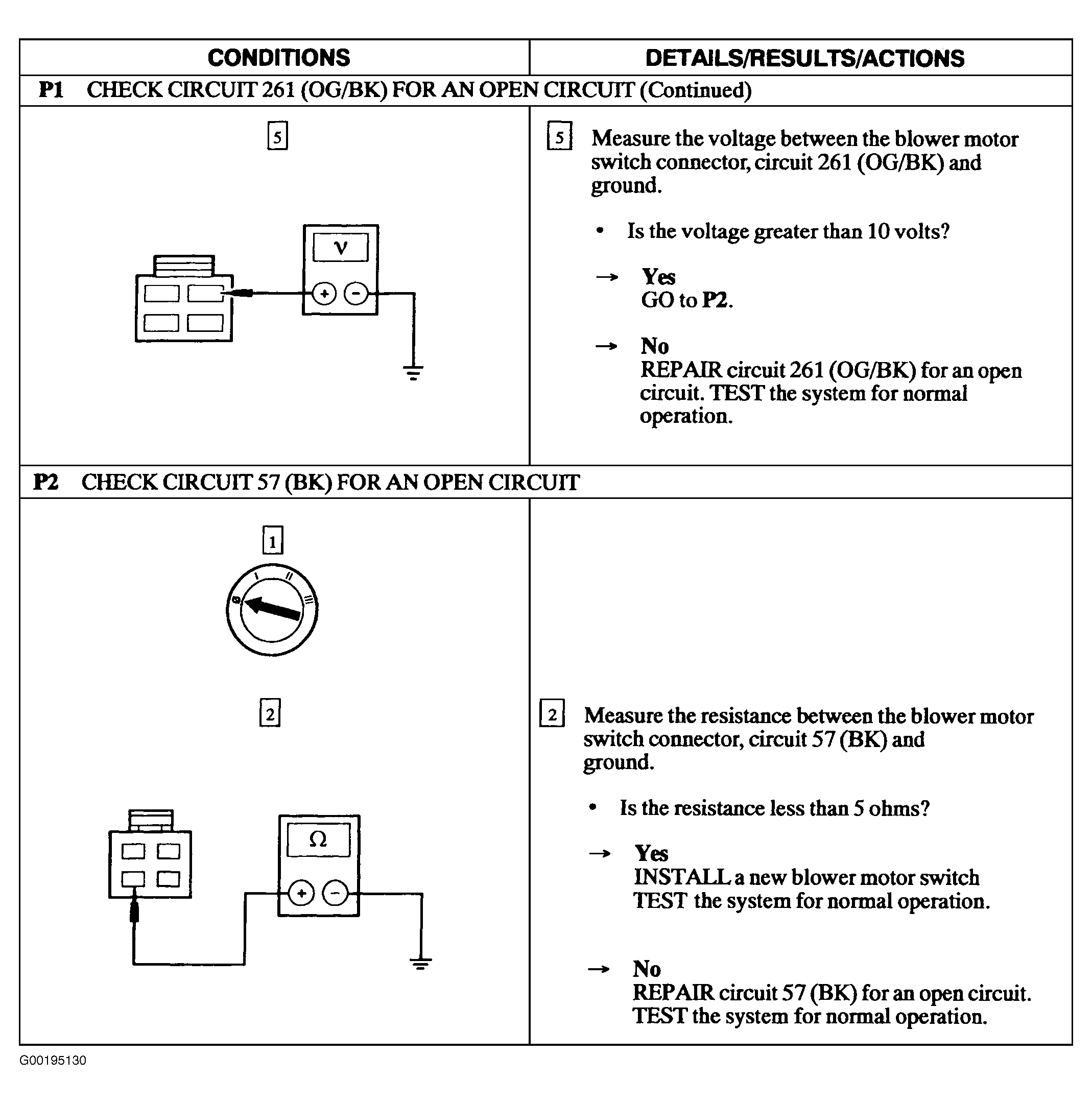

Fig 2: Test P (2 Of 2 - Steps P1 Cont.-P2)
G00195130Courtesy of FORD MOTOR CO.
