Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 9

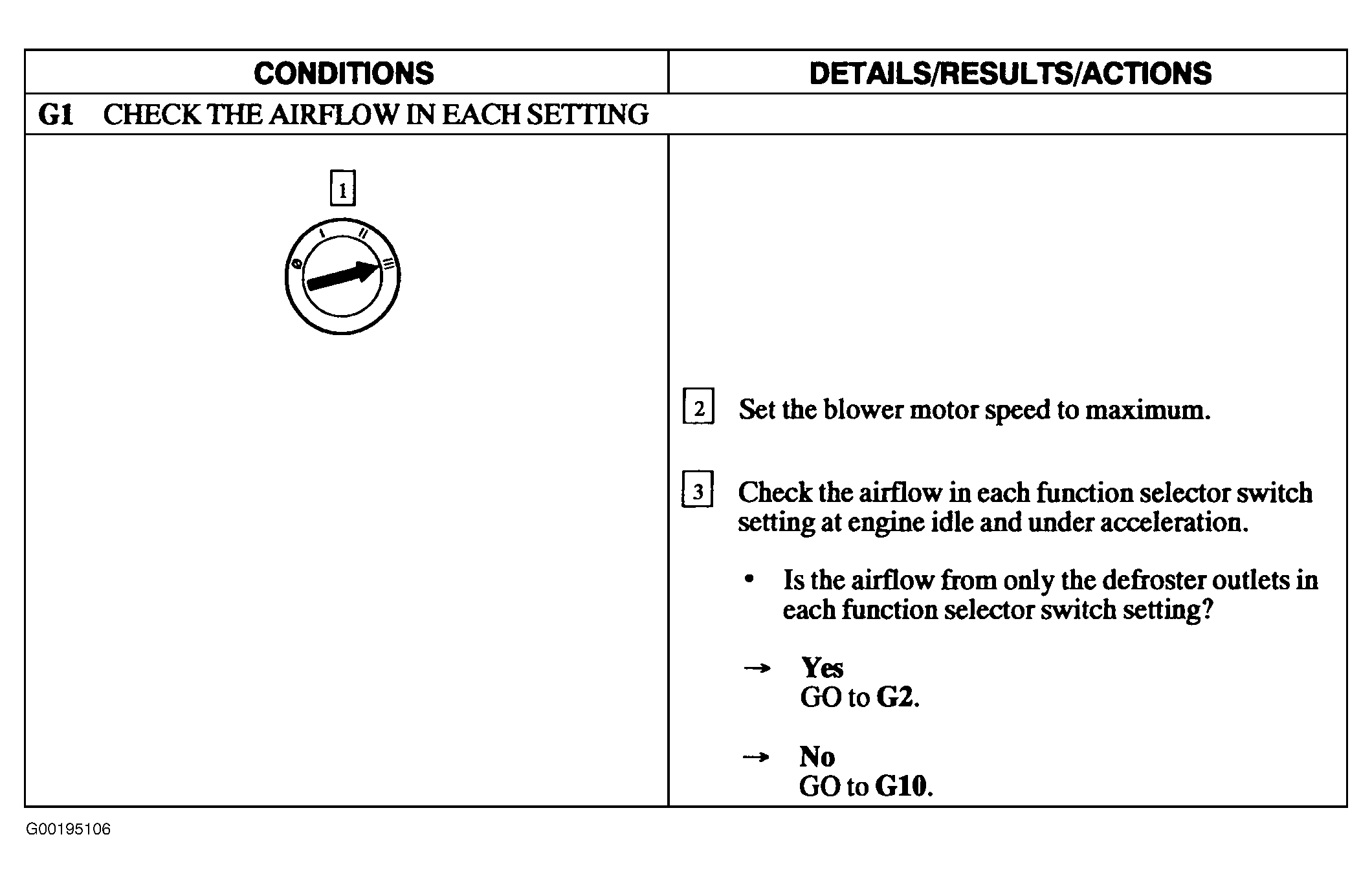

Fig 1: Test G (1 Of 9 - Step G1)

Courtesy of FORD MOTOR CO.

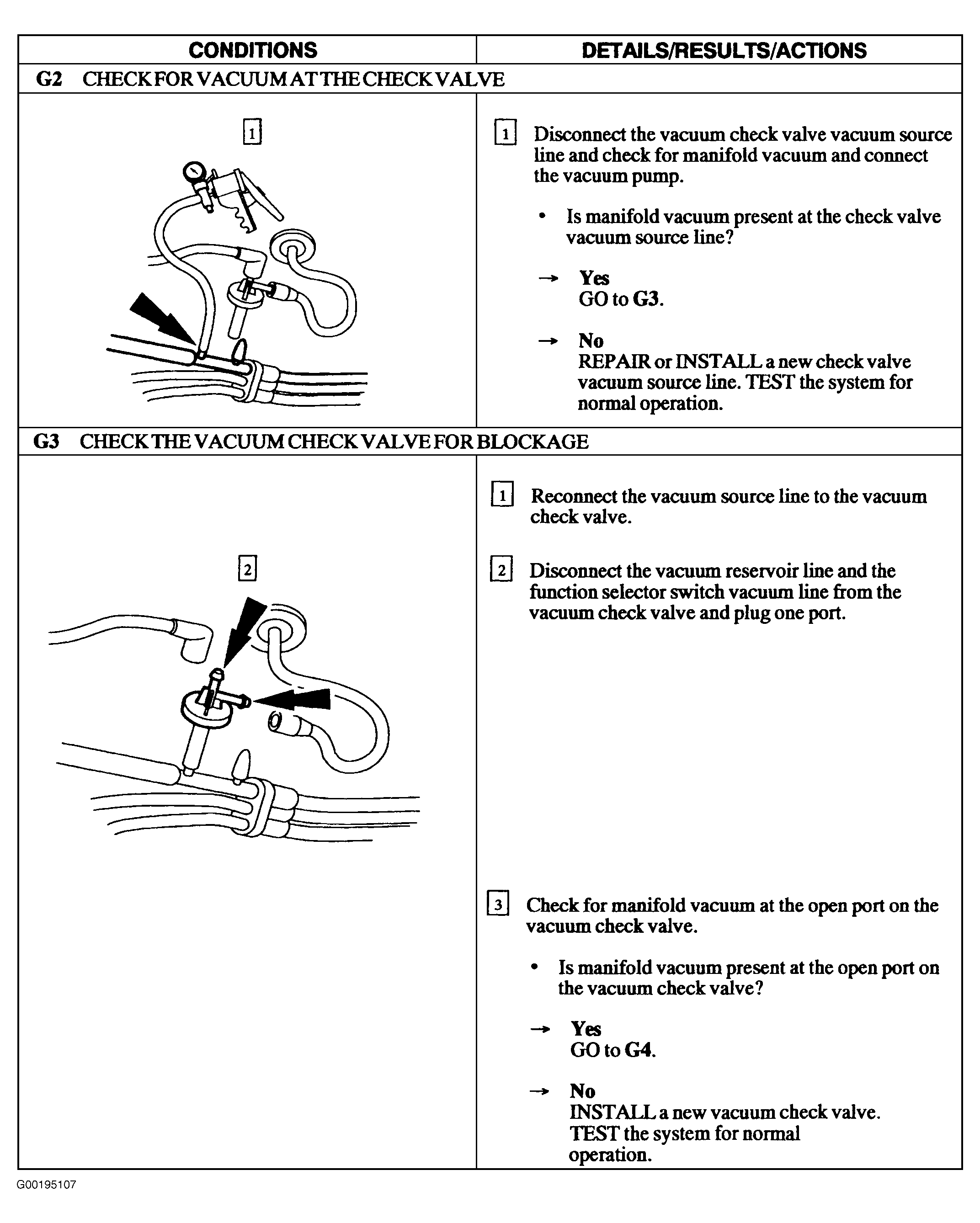

Fig 2: Test G (2 Of 9 - Steps G2-G3)

Courtesy of FORD MOTOR CO.

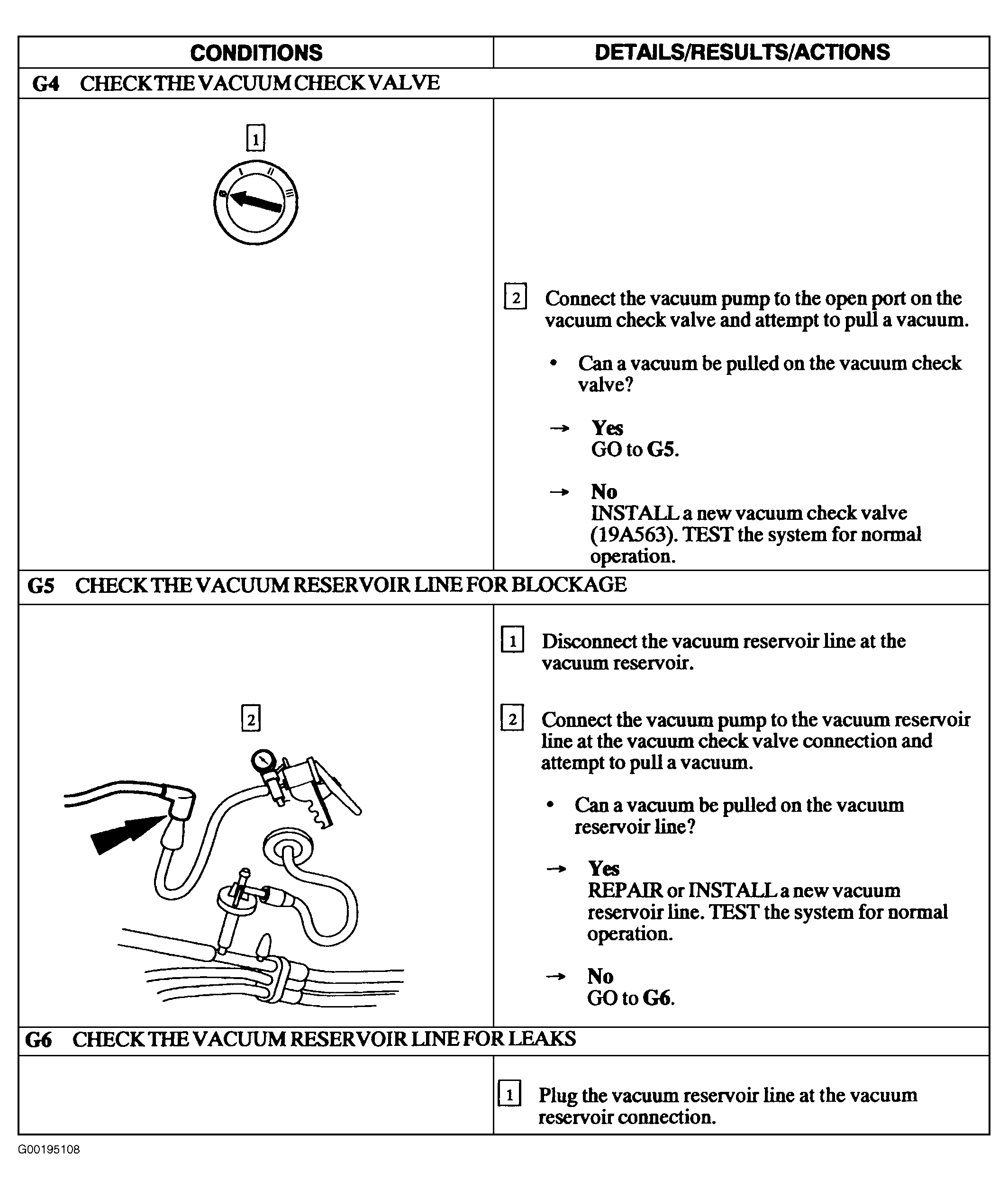

Fig 3: Test G (3 Of 9 - Steps G4-G6)

Courtesy of FORD MOTOR CO.

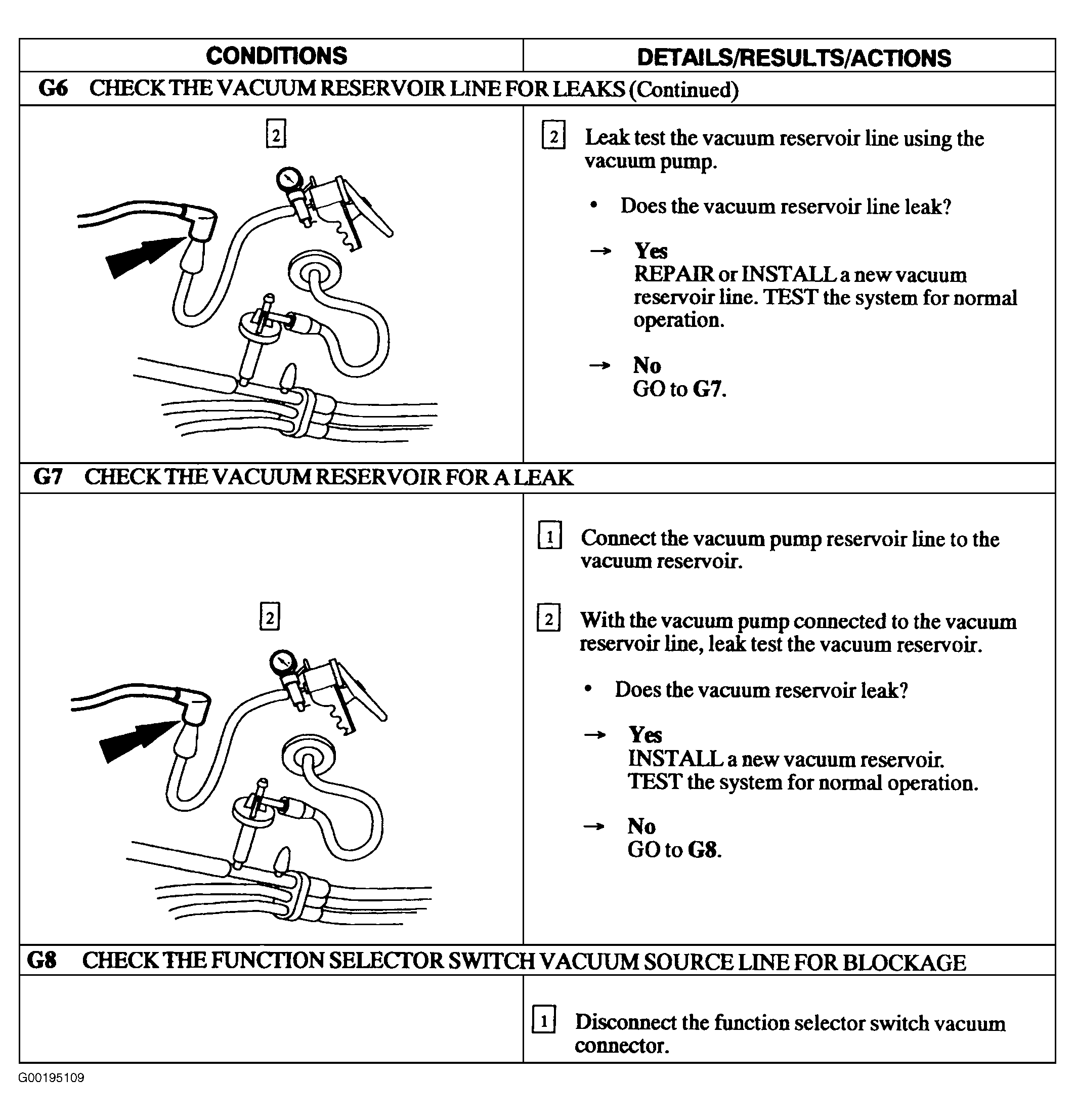

Fig 4: Test G (4 Of 9 - Steps G6 Cont.-G8)

Courtesy of FORD MOTOR CO.

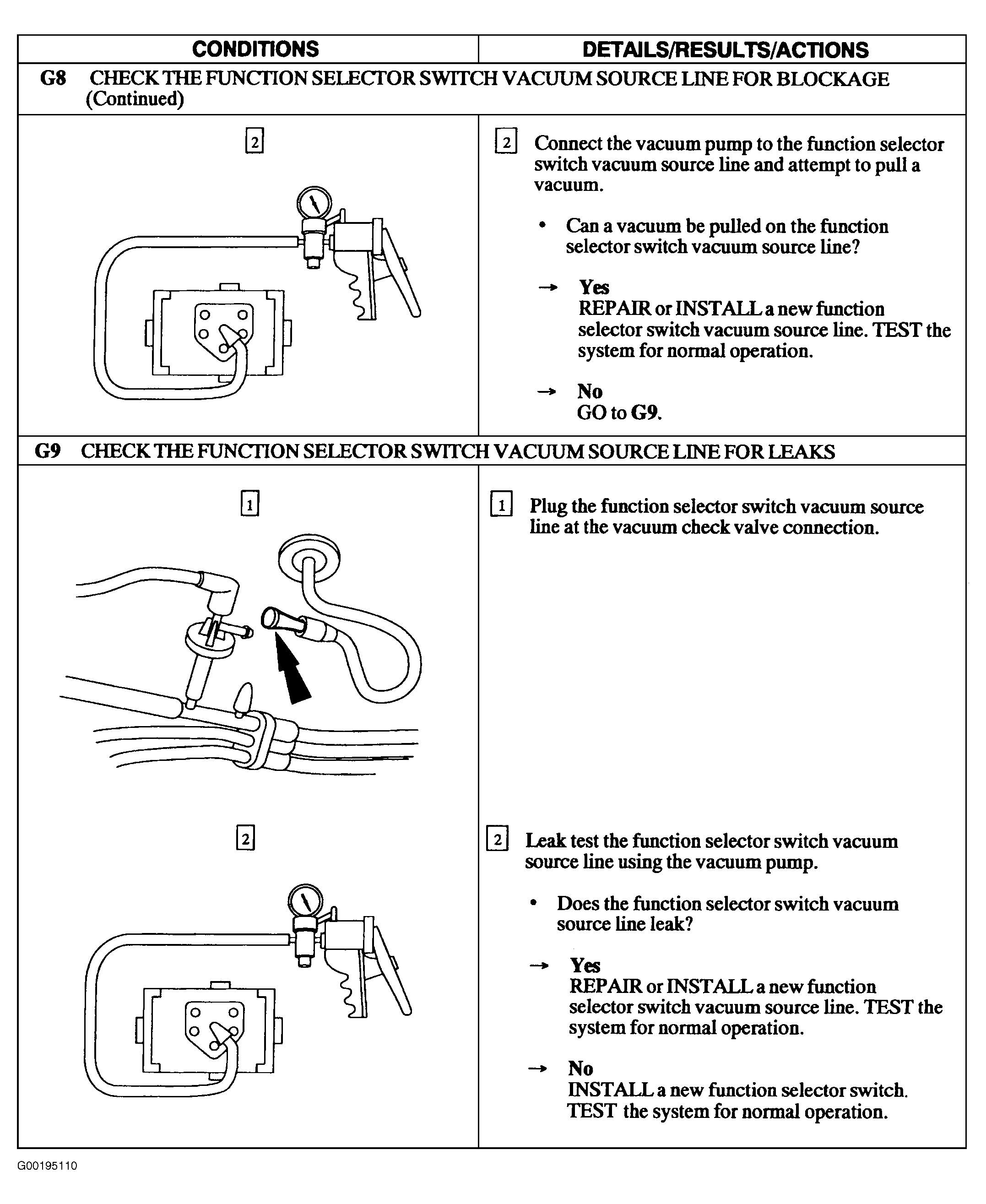

Fig 5: Test G (5 Of 9 - Steps G8 Cont.-G9)

Courtesy of FORD MOTOR CO.

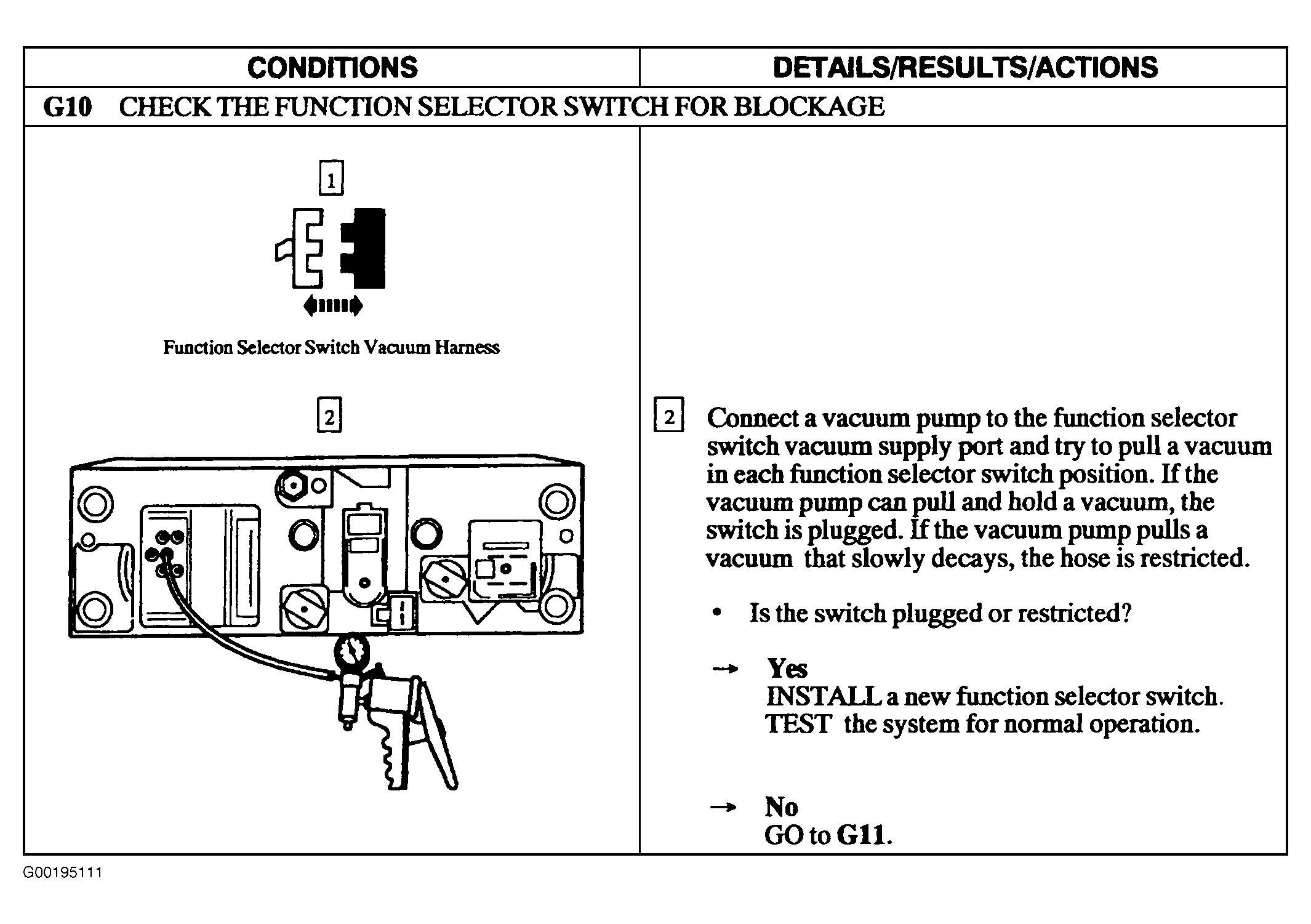

Fig 6: Test G (6 Of 9 - Step G10)

Courtesy of FORD MOTOR CO.

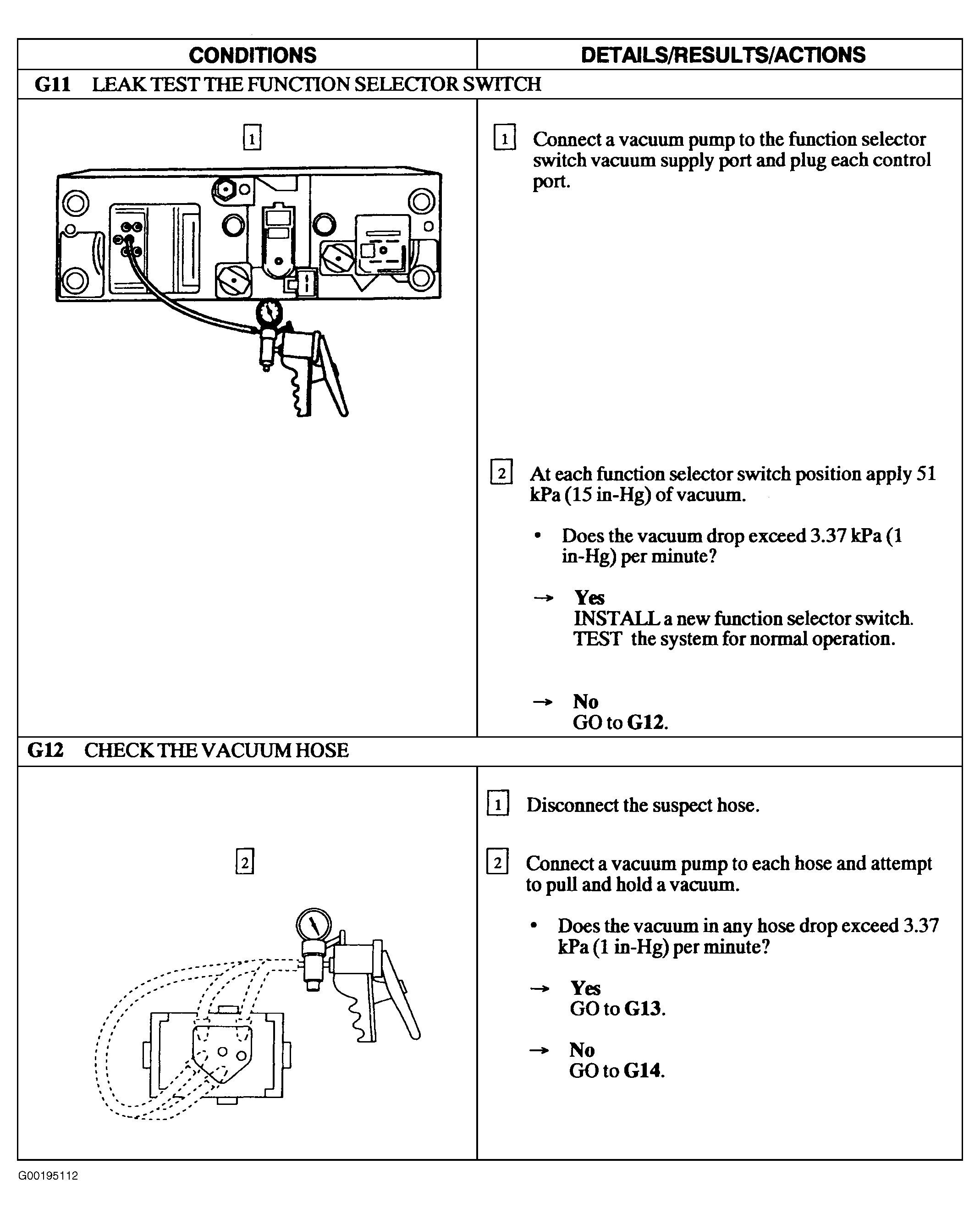

Fig 7: Test G (7 Of 9 - Steps G11-G12)

Courtesy of FORD MOTOR CO.

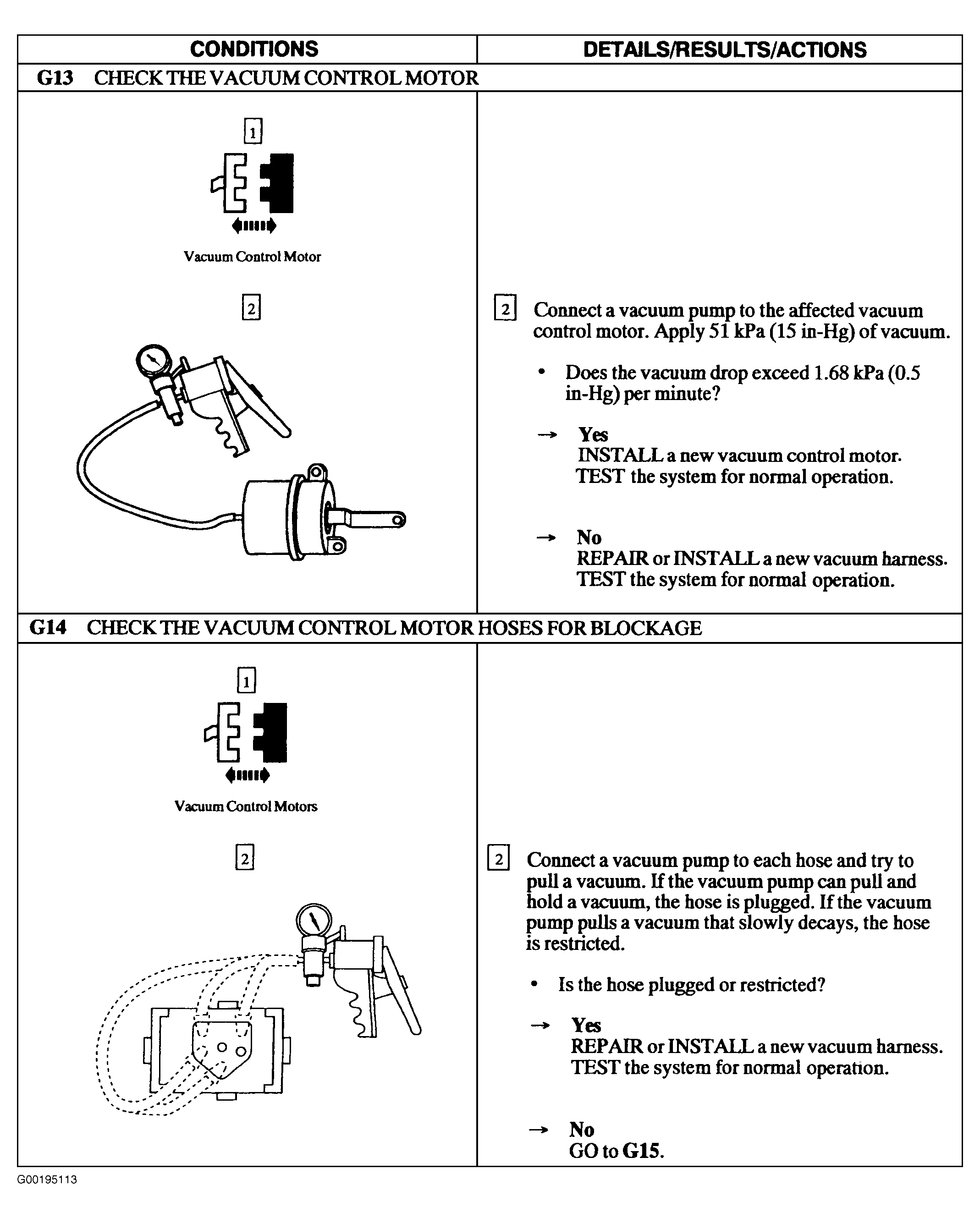

Fig 8: Test G (8 Of 9 - Steps G13-G14)

Courtesy of FORD MOTOR CO.

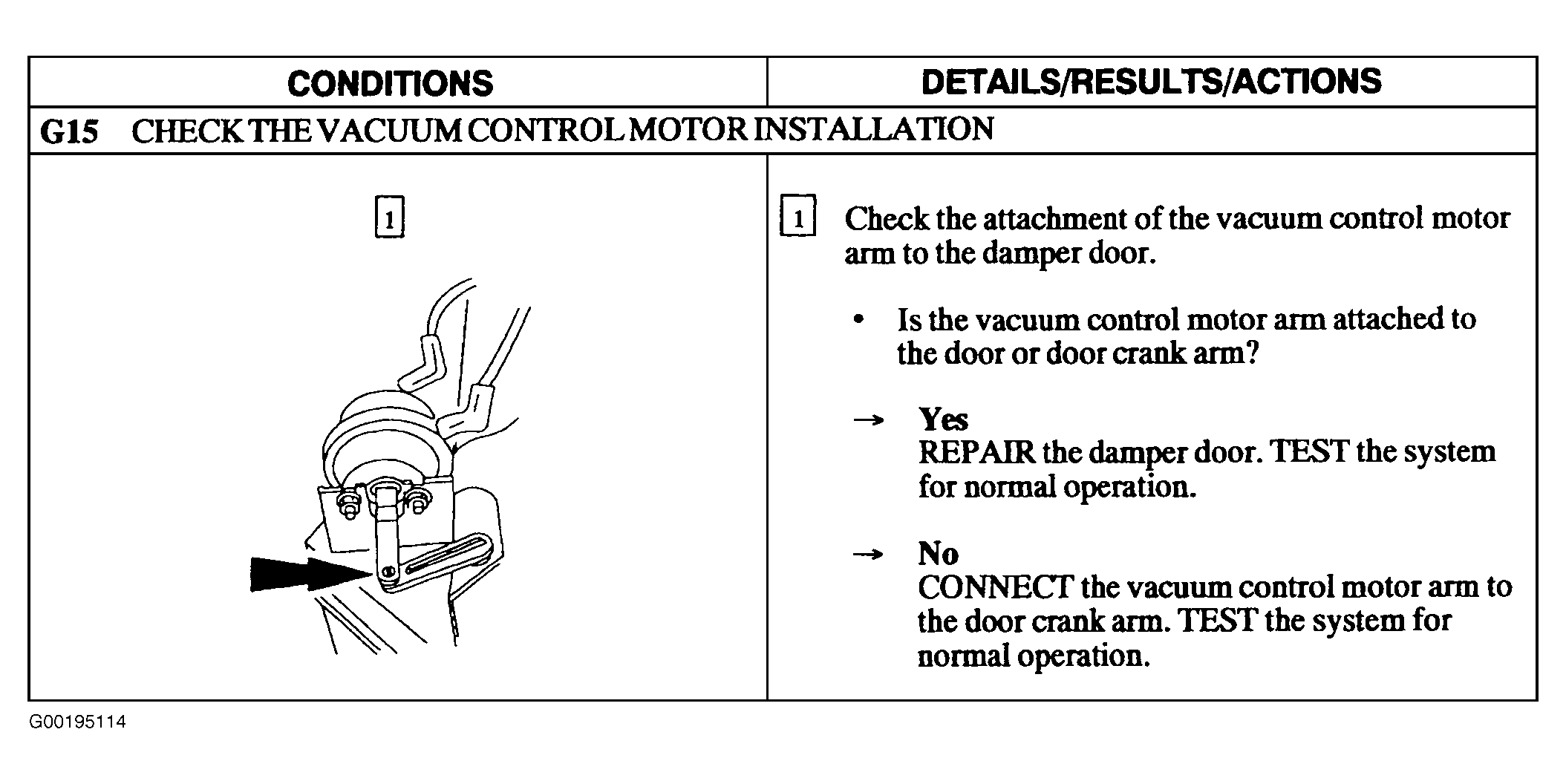

Fig 9: Test G (9 Of 9 Step G15)

Courtesy of FORD MOTOR CO.
