Wheel Hub, Steering Knuckle Inspection

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. Refer to WHEELS & TIRES .
  2. Position the special tool. Push and pull the wheel hub by hand and measure the wheel bearing play.

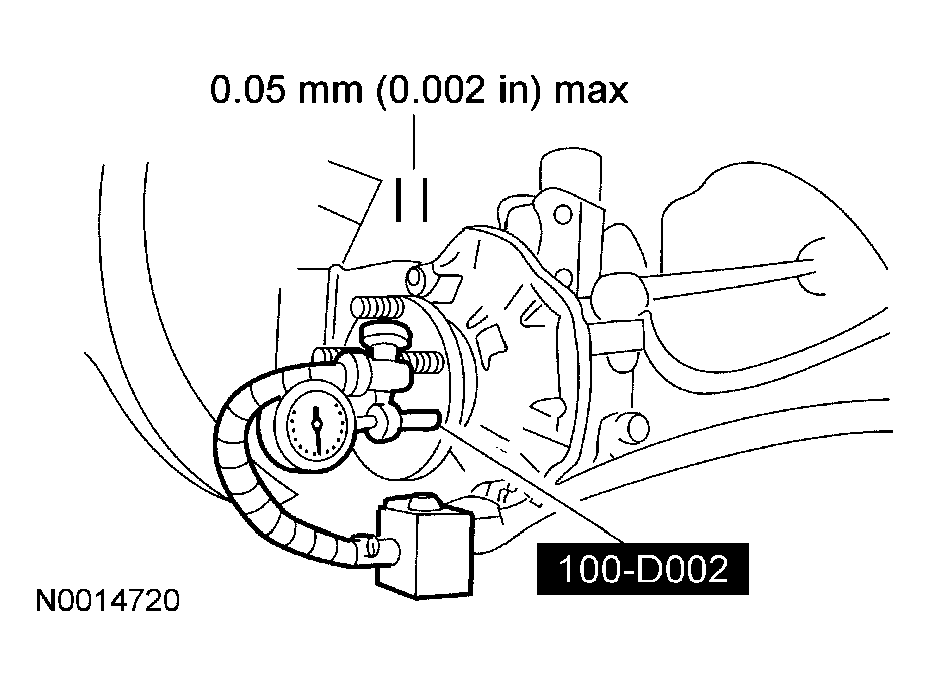

    Fig 1: Measuring Wheel Bearing Play
    G03988374Courtesy of FORD MOTOR CO.
  3. If the wheel bearing play exceeds specification, install a new locknut. Refer to FRONT SUSPENSION .
  4. Reset the wheel bearing play and install a new wheel hub if necessary. Refer to FRONT SUSPENSION .
