Without a Detachable Anchor Buckle (Late Build)

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

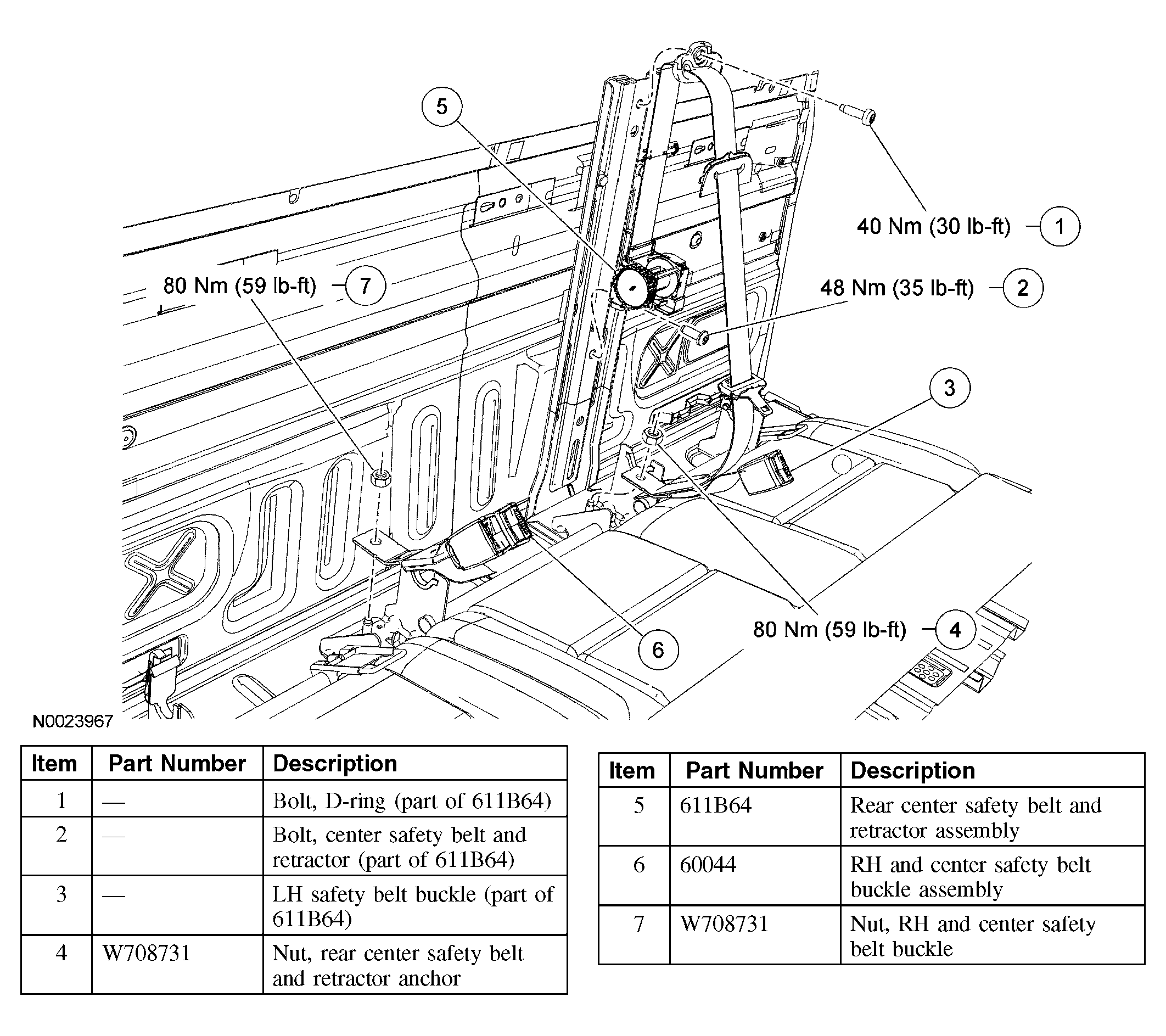

Fig 1: Identifying Rear Safety Belt Buckle Without Detachable Anchor Buckle (Late Build)
G03966548Courtesy of FORD MOTOR CO.
