Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The LH side is shown, the RH side is similar.
  1. Open and support the tailgate.
  2. Remove the 8 screws and the tailgate access panel.
    • To install, tighten to 5 Nm (44 lb-in).
  3. Open the clip and release the tailgate latch actuating rod from the tailgate remote control.

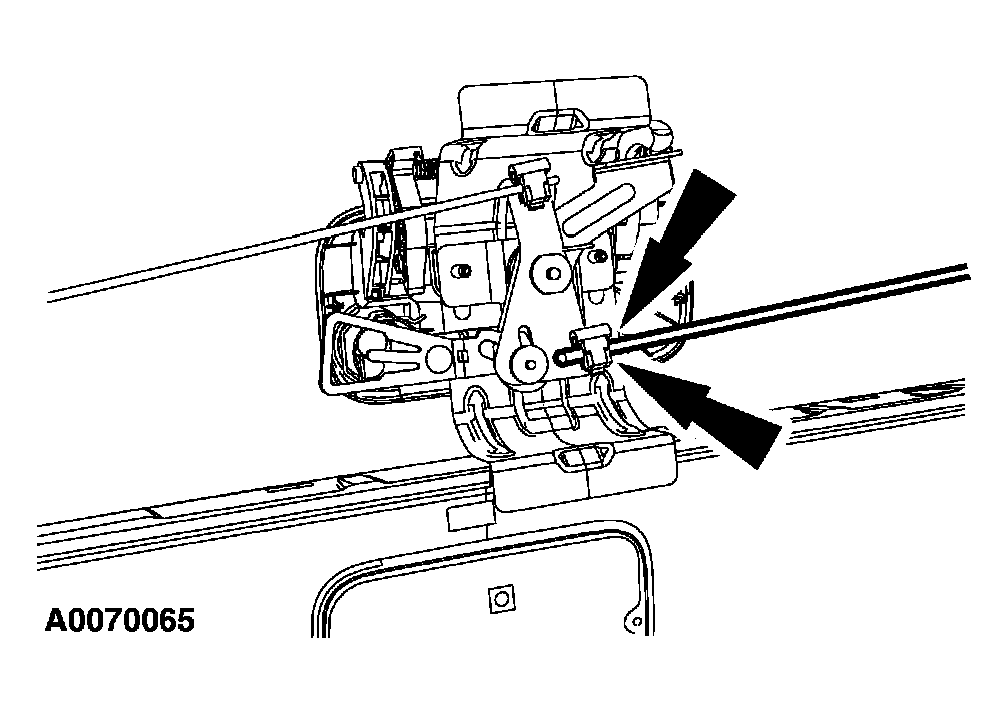

    Fig 1: Releasing Tailgate Latch Actuating Rod From Tailgate Remote Control
    G03966469Courtesy of FORD MOTOR CO.
  4. Release the tailgate latch actuating rod locator from the tailgate.
  5. Remove the tailgate latch bolt.
    • To install, tighten to 25 Nm (18 lb-ft).
  6. Remove the tailgate latch bolt and the tailgate latch cable.
    • To install, tighten to 25 Nm (18 lb-ft).
  7. Remove the tailgate latch.
  8. To install, reverse the removal procedure.
    • Lubricate the tailgate latch after installation.
