Headlamp Switch C2150a (vehicles built after 11/2004)

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

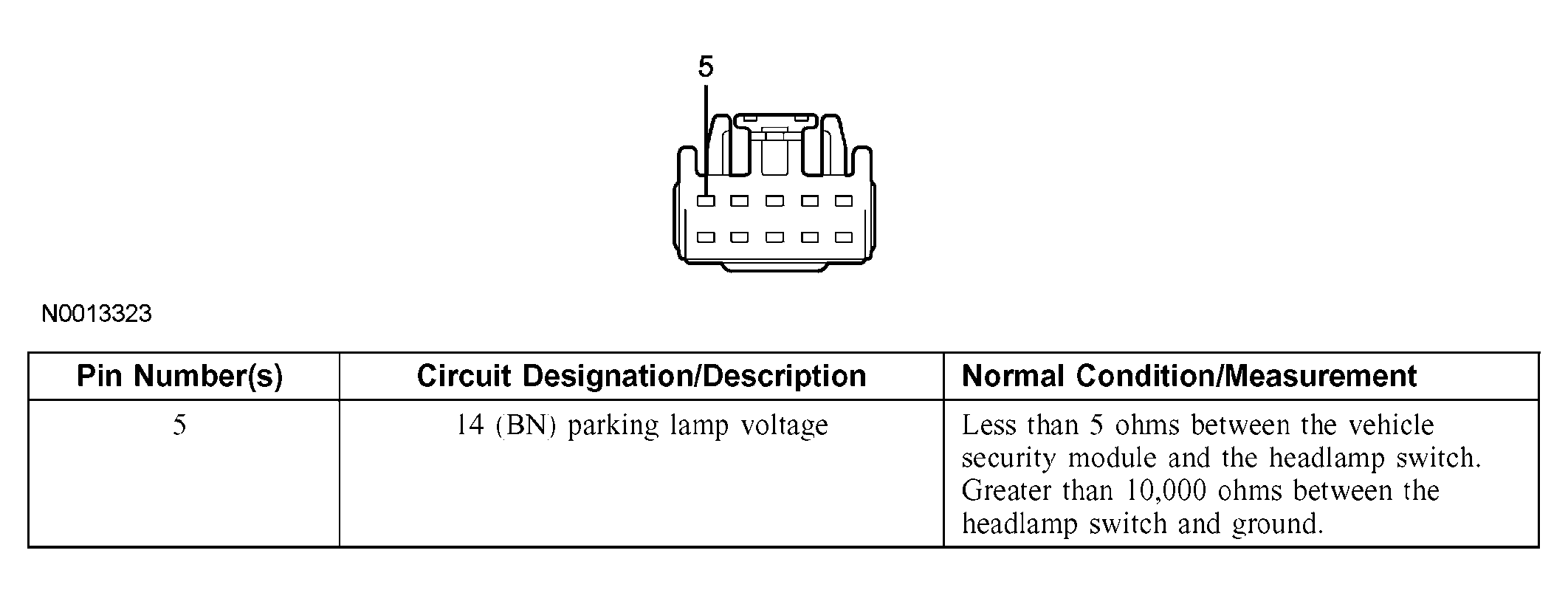

Fig 1: Identifying Headlamp Switch C2150a (Vehicles Built After 11/2004) Connector
G03966427Courtesy of FORD MOTOR CO.
