Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Carefully read cautionary information on the product label. For additional information, see product Material Safety Data Sheet (MSDS). For 24-hour MEDICAL EMERGENCY INFORMATION on Ford/Motorcraft products call: 1-800-959-3673 (FORD). Failure to follow these instructions may result in personal injury.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash the surface with water immediately.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Using the special tool, disconnect the hydraulic line from the clutch slave cylinder.
    • Clean the area around the quick disconnect coupling.

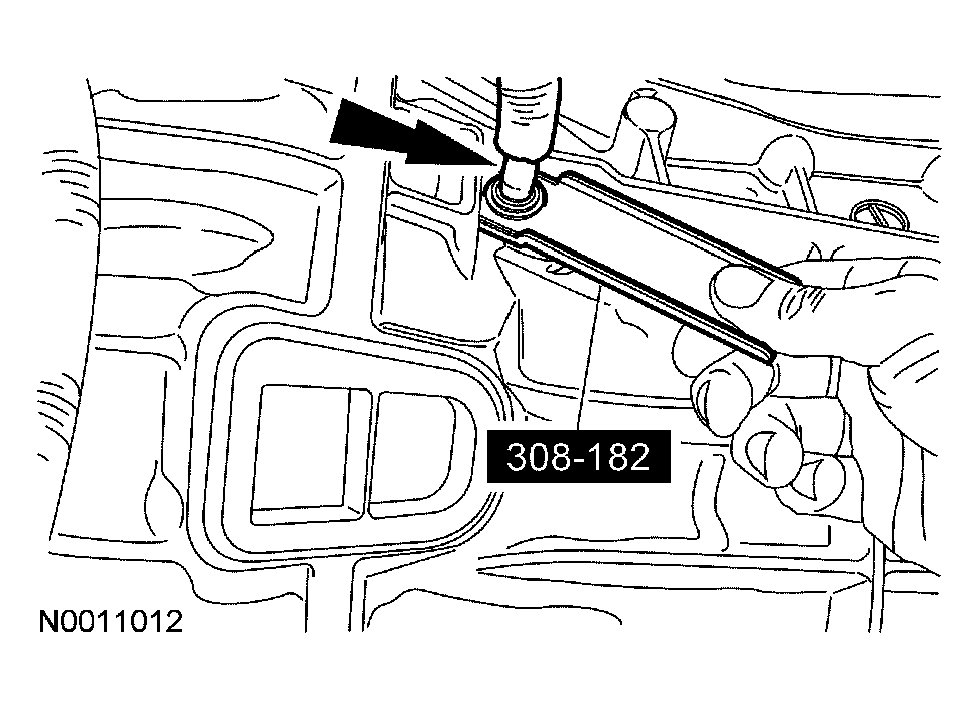

    Fig 1: Using Special Tool To Disconnect Hydraulic Line From Clutch Slave Cylinder
    G03964554Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
  4. Remove the clutch pedal position (CPP) switch.
    1. Disconnect the CPP switch electrical connector.
    2. Disconnect the clutch master cylinder push rod from the pedal assembly.
    3. Remove the CPP switch.
      • Lift the upper cover from the lock tabs and pull the cover upward. Rotate and remove the switch from the push rod.

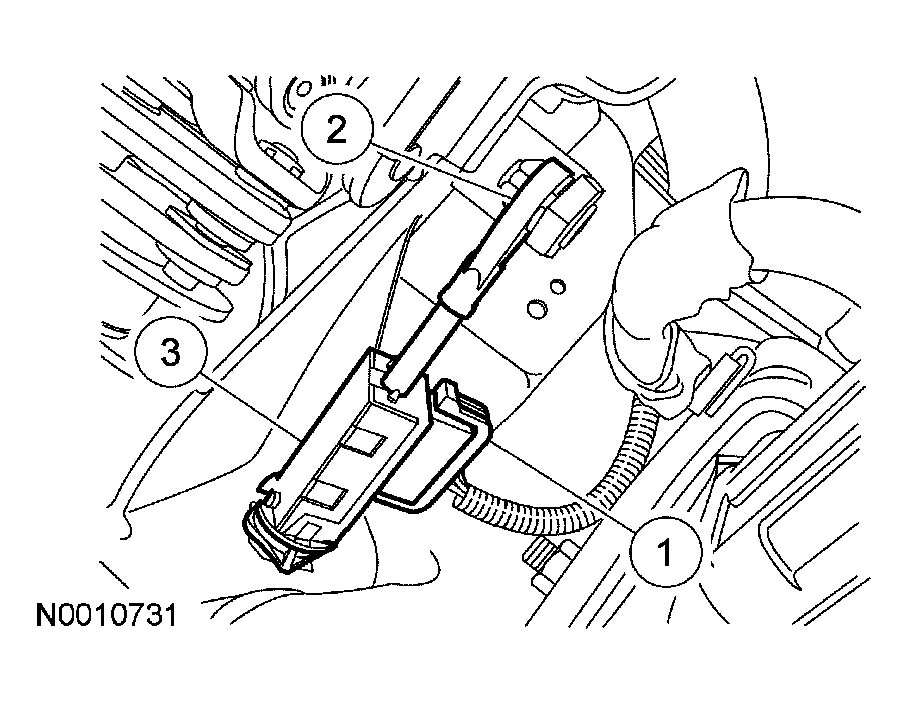

    Fig 2: Removing Clutch Pedal Position (CPP) Switch
    G03964555Courtesy of FORD MOTOR CO.
  5. Unclip the hydraulic line from the bulkhead.

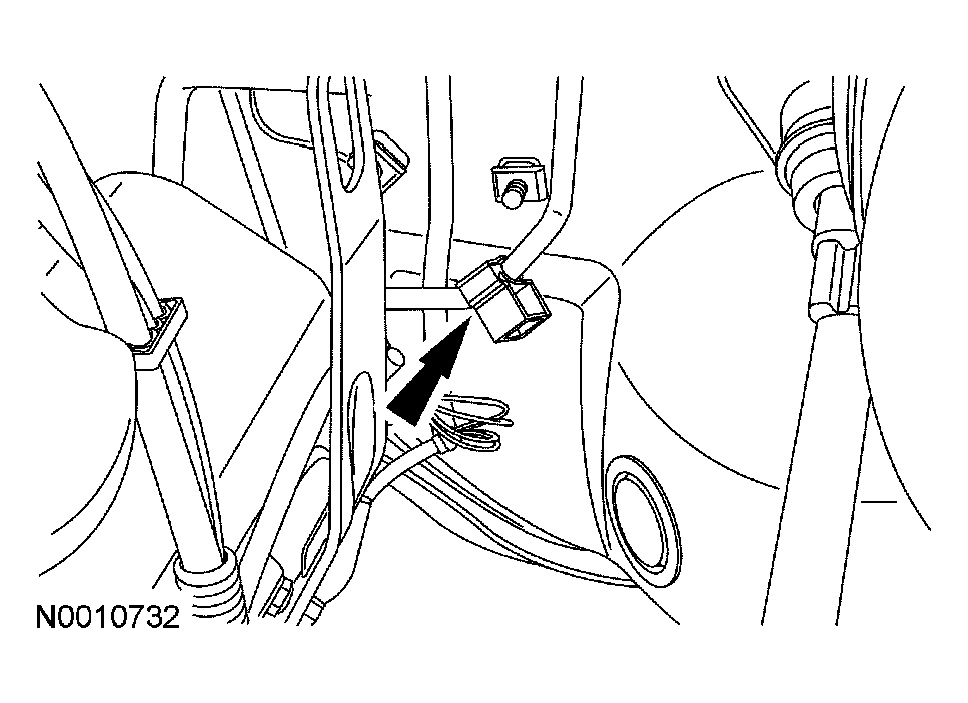

    Fig 3: Unclipping Hydraulic Line From Bulkhead
    G03964556Courtesy of FORD MOTOR CO.
  6. Remove the clutch reservoir.

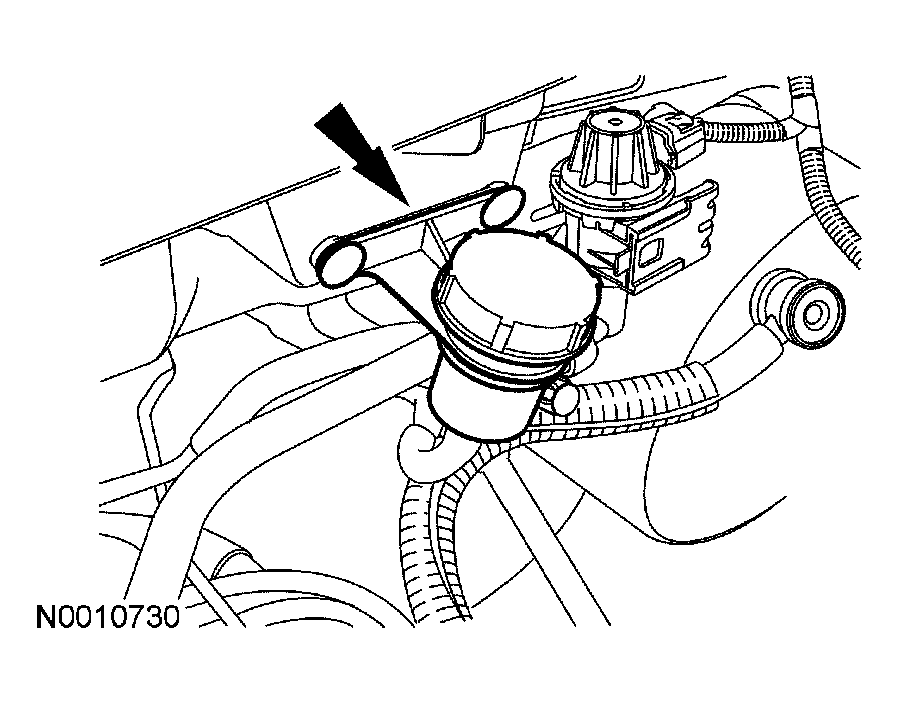

    Fig 4: Removing Clutch Reservoir
    G03964557Courtesy of FORD MOTOR CO.
  7. Unlock and remove the clutch master cylinder.
    • Twist the clutch master cylinder counterclockwise 45 degrees to unlock it from the pedal support bracket.

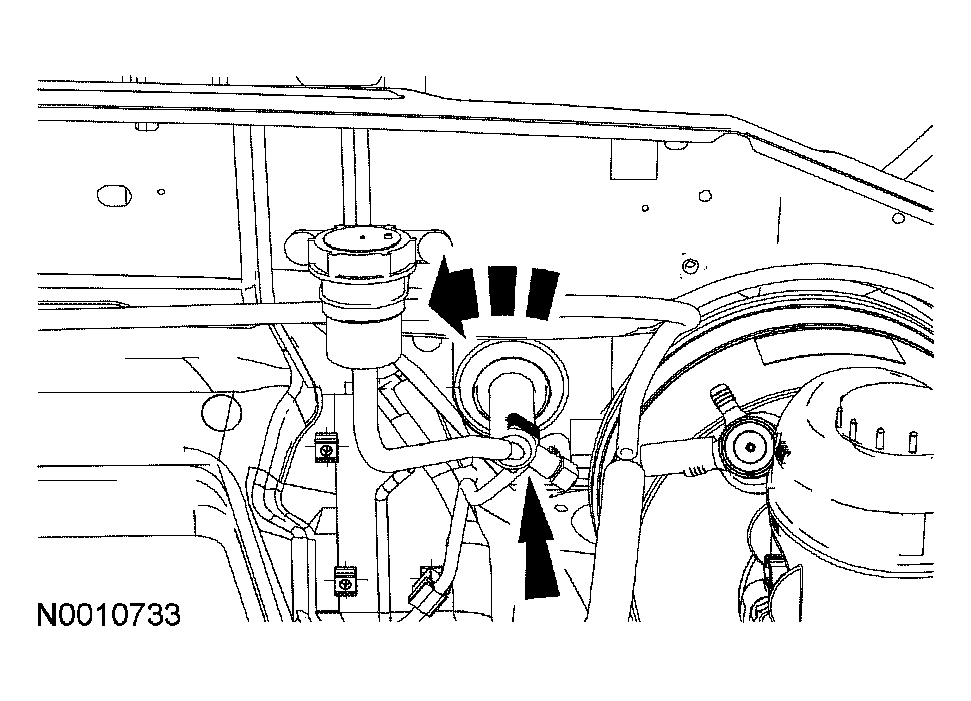

    Fig 5: Unlocking Clutch Master Cylinder
    G03964558Courtesy of FORD MOTOR CO.
  8. Remove the clutch reservoir, clutch master cylinder and hydraulic line as an assembly.
  9. To install, reverse the removal procedure.
    • Install a new clutch master cylinder push rod retainer.
    • If installing a new clutch master cylinder, install a new clutch master cylinder push rod.
    Fig 6: Installing New Clutch Master Cylinder Push Rod
    G03964559Courtesy of FORD MOTOR CO.
