Washer Pump Motor C137

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

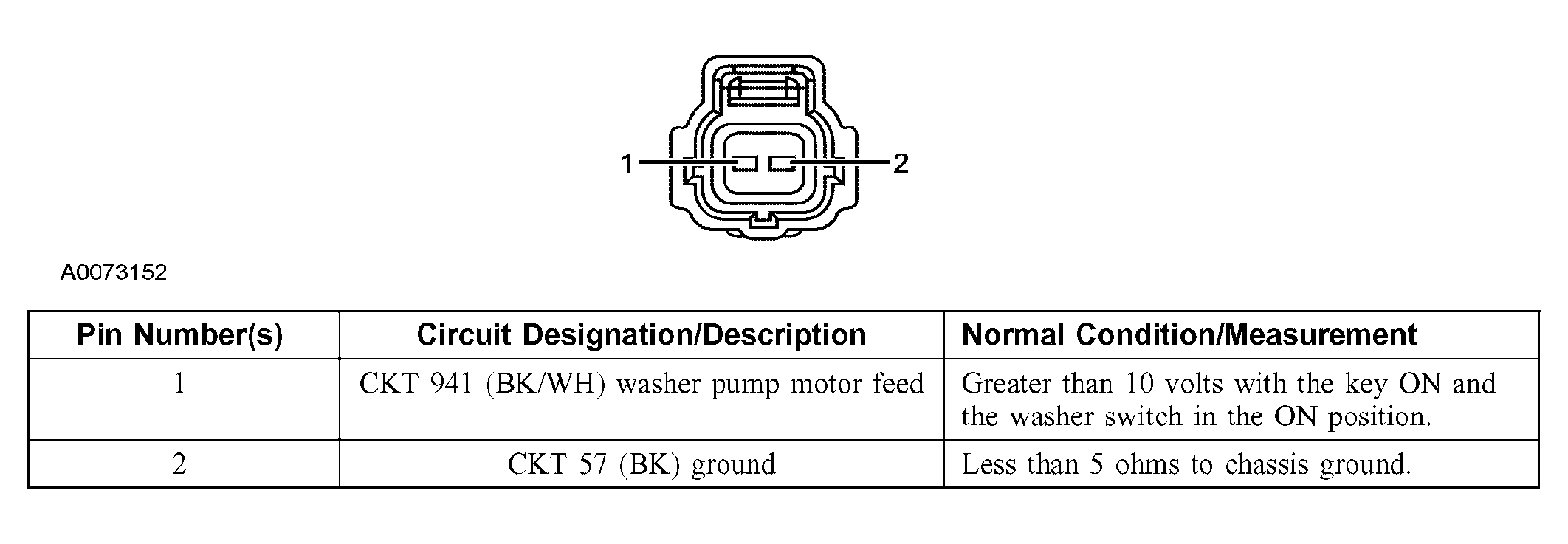

Fig 1: Identifying Washer Pump Motor C137 Connector Pinout
G03966478Courtesy of FORD MOTOR CO.
