Activating System (Express, Van & Savana)

1. Remove key from ignition. Connect passenger air bag 2-pin Yellow SIR connector. Install CPA clip. Connect driver air bag 2-pin Yellow SIR connector. Install CPA clip. Install knee bolsters and trim panel.
2. Install AIR BAG fuse in fuse block. Staying well away from air bag modules, turn ignition switch to ON position. Ensure AIR BAG warning light flashes 7 times, and then turns off.

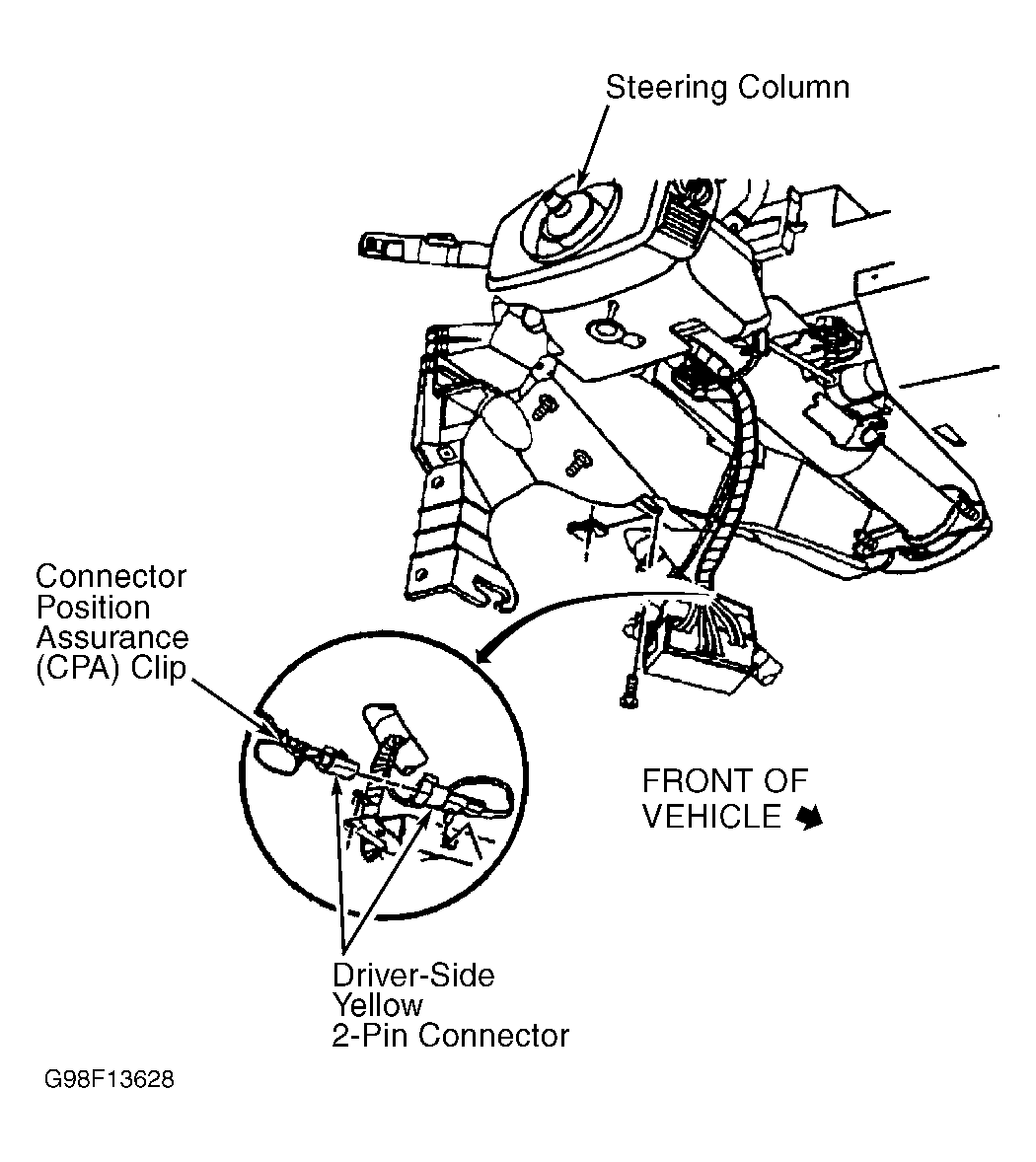

Fig 1: Locating Driver Air Bag Yellow 2-Pin Connector (Express, Van & Savana)

Courtesy of GENERAL MOTORS CORP.

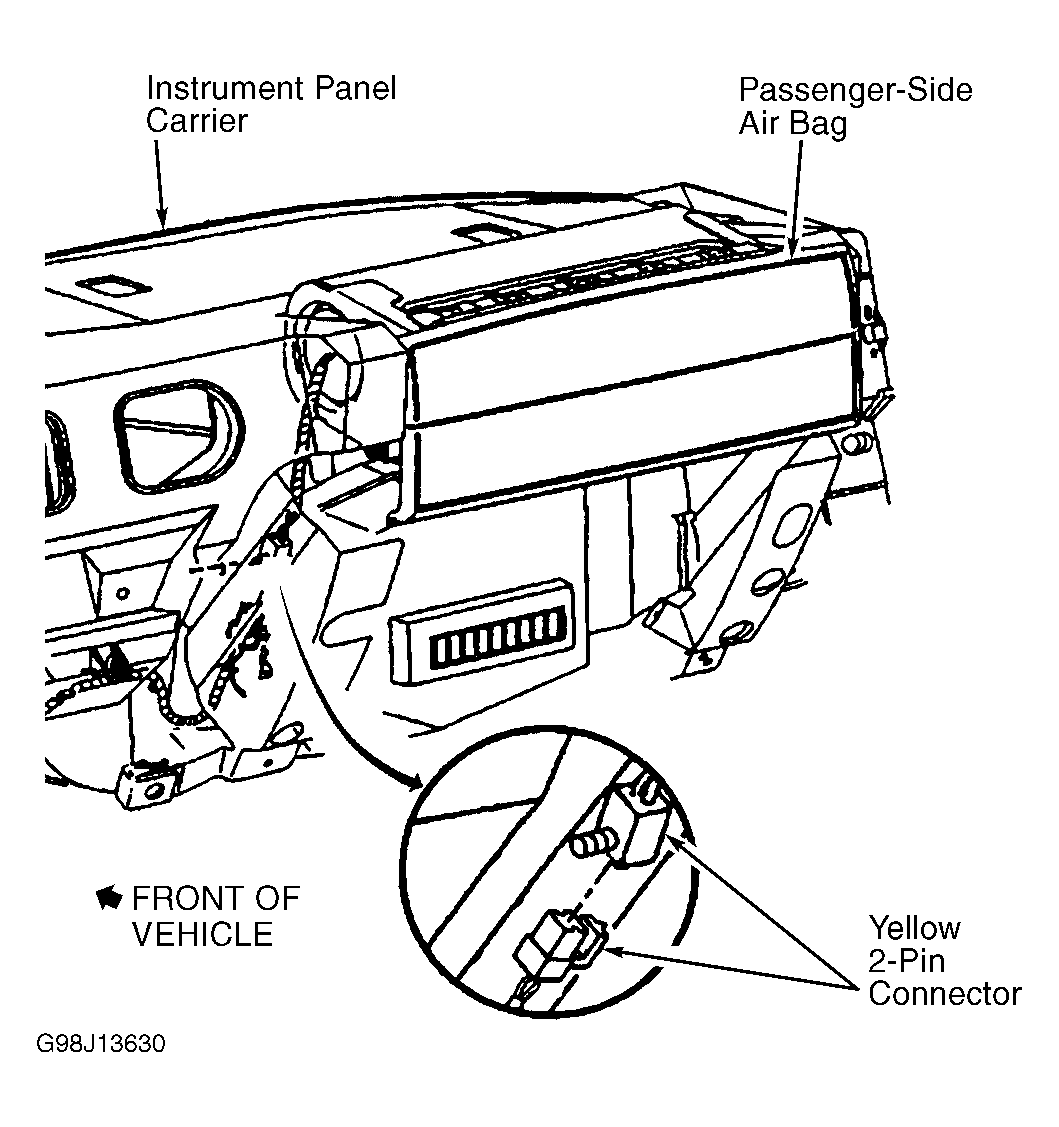

Fig 2: Locating Passenger Air Bag Yellow 2-Pin Connector (Express, Van & Savana)

Courtesy of GENERAL MOTORS CORP.
