Fuel Injector: Installation

WARNING: This page is about a different variant/trim than selected.
  1. If fuel injector sleeves are not being installed, go to step 3)  . If installing fuel injector sleeve in cylinder head, use Fuel Injector Sleeve Brush (D94T-9000-D) and clean bore in cylinder head for fuel injector sleeve. Ensure all debris are cleaned from bore.
  2. Apply Threadlock® Sealant 262 at designated areas onto fuel injector sleeve. See Fig 1. Using rubber hammer and Fuel Injector Sleeve Installer (D94T-9000-C), tap fuel injector sleeve into cylinder head. Remove fuel injector sleeve installer.

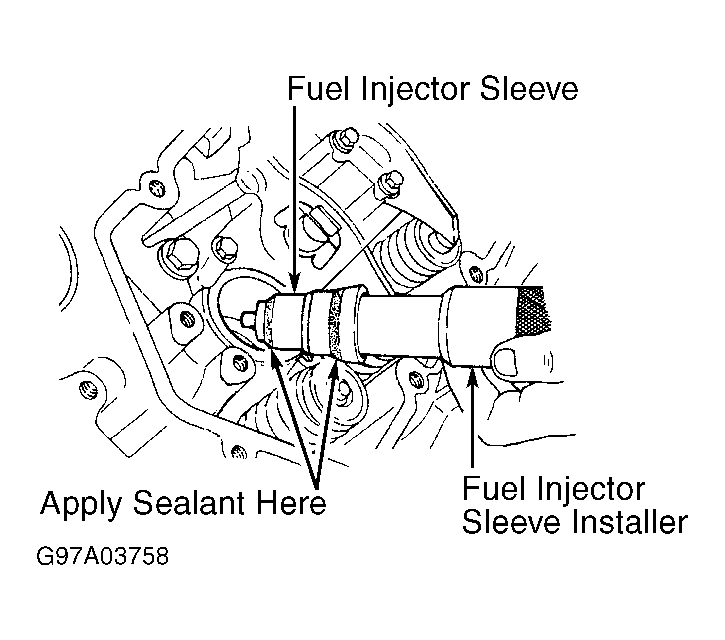

    Fig 1: Applying Sealant On Fuel Injector Sleeve
    G97A03758Courtesy of FORD MOTOR CO.
    CAUTION: Two different fuel injectors may be available, a 49 state fuel injector and a California fuel injector. These fuel injectors MUST NOT be interchanged, as Powertrain Control Module (PCM) is calibrated for specified fuel injector. Before replacing any fuel injectors, refer to Vehicle Emission Control Information decal for proper fuel injector application. Decal is located under hood. Improper fuel injector application may result in poor engine performance, high emission levels and/or damage to engine.
    CAUTION: Remove all fuel and oil from cylinders before installing fuel injectors. Failure to ensure cylinders are clean may result in engine damage caused by hydrostatic lock.
  3. Using proper size brush from Brush Set (D94T-9000-D), clean bore for fuel injector in fuel injector sleeve. Ensure seating area at end of fuel injector sleeve is clean.
  4. Ensure fuel and oil are removed from cylinders before installing fuel injectors. Install NEW back-up ring, cushion rings, seals and copper washer on fuel injector. Ensure components are installed in correct location. See Figure.
    CAUTION: DO NOT tap on top of fuel injector to seat fuel injector in fuel injector sleeve or fuel injector will be damaged. Ensure copper washer does not fall from fuel injector during fuel injector installation.

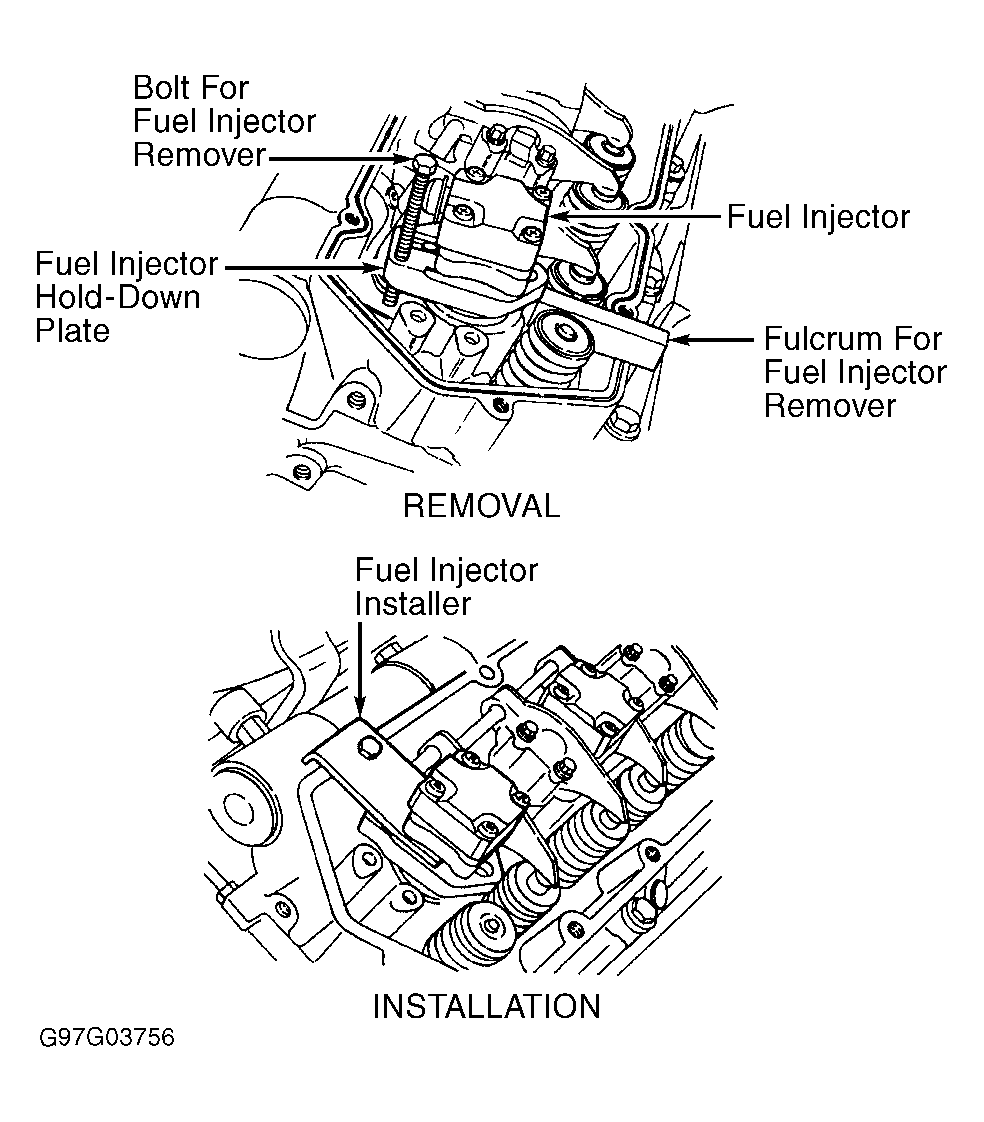

  5. Lubricate fuel injector, back-up ring, cushion rings and seals with clean engine oil. Using Fuel Injector Installer (D94T-9000-AH2), install fuel injector in cylinder head until fuel injector is fully seated. See Figure.
  6. Remove fuel injector installer. Install oil deflector. Tighten oil deflector retaining bolt to specification. See TORQUE SPECIFICATIONS . Install and tighten fuel injector retaining bolt and oil rail drain plugs to specification.
  7. Reinstall engine wiring harness wires onto fuel injector. DO NOT pierce any wires in engine wiring harness. To install remaining components, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
