Removal & Installation (Rear Lateral Link)

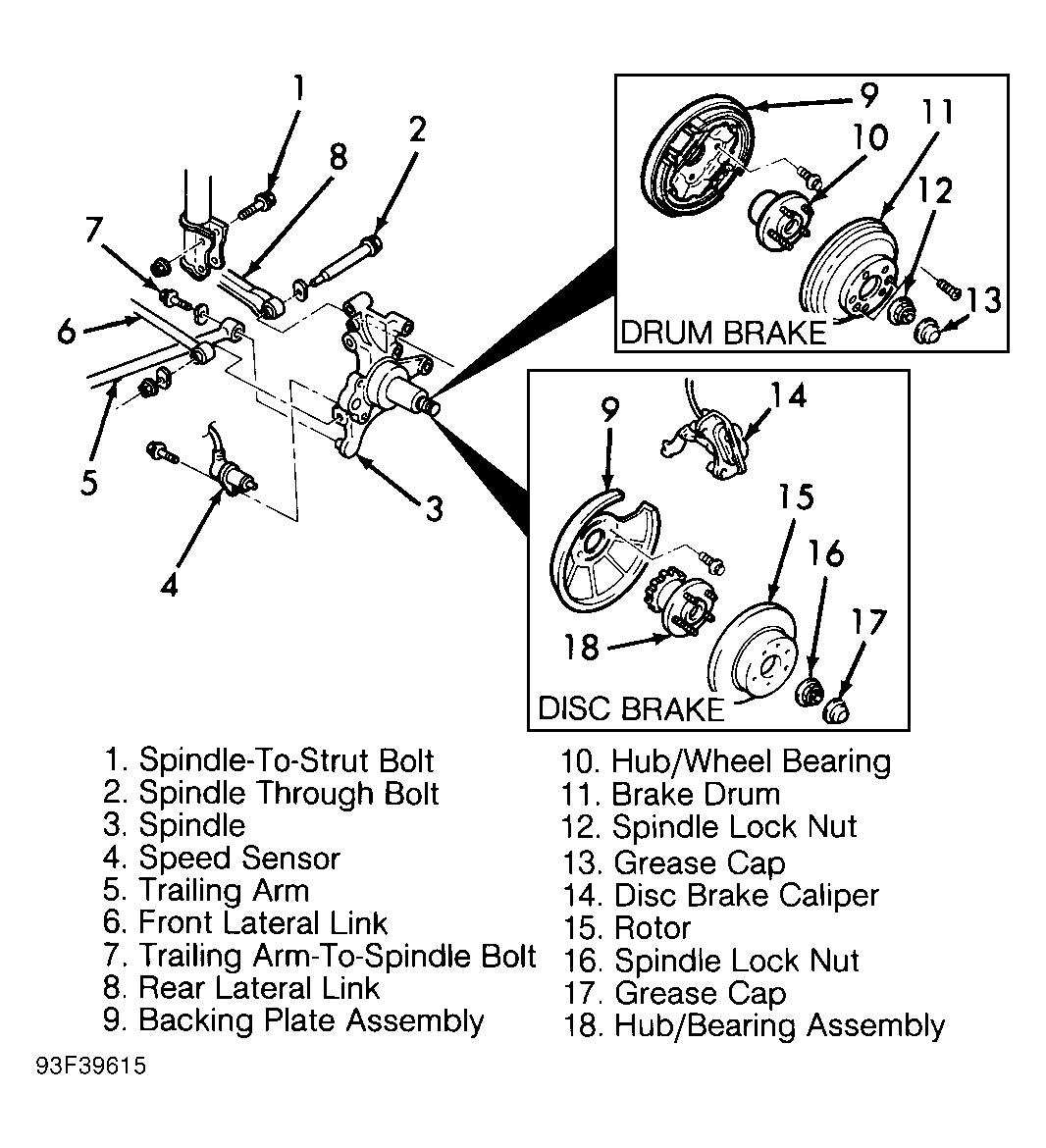

Raise vehicle. Remove spindle through-bolt. Remove stabilizer control link. See STABILIZER CONTROL LINK  . Mark position of adjusting cam bolt, and remove bolt. Remove rear lateral link. See Figure and Figure . To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS  table.
