Removal & Installation (Rear Disc Brake)

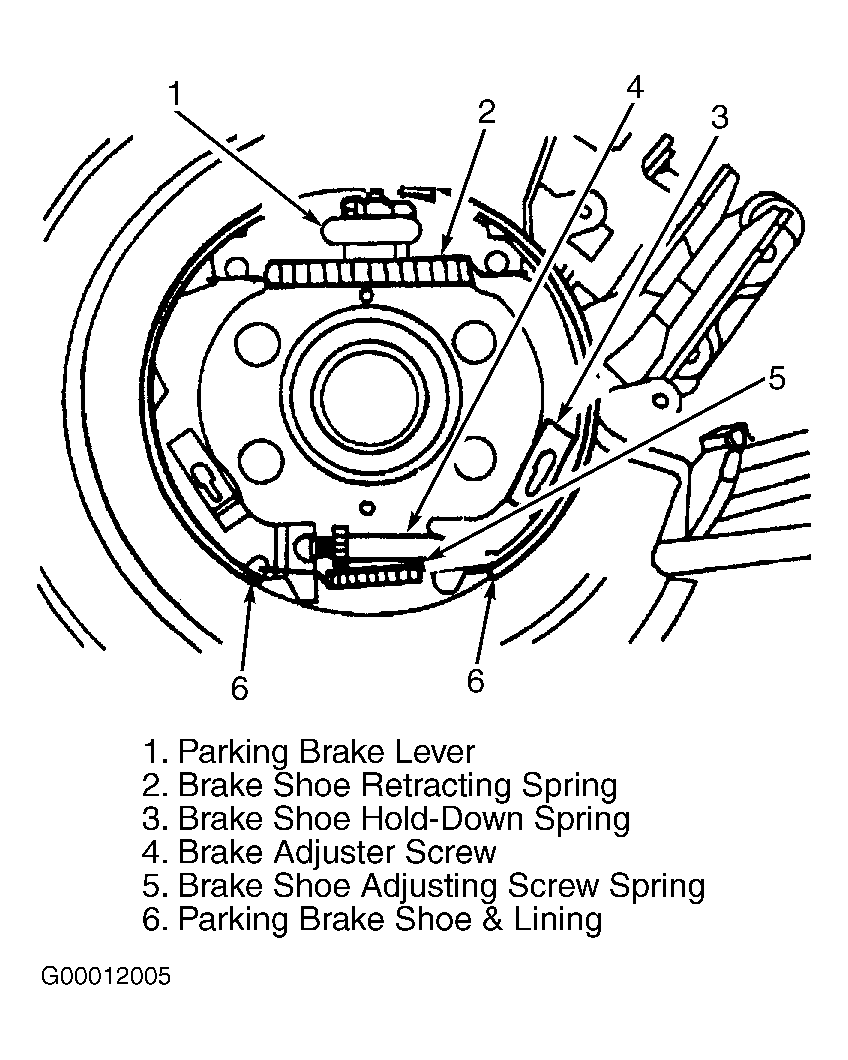

Remove the rotor. See REAR BRAKE ROTOR . Remove brake shoe retracting spring and brake shoe adjusting screw spring. See Fig 1 . Remove brake shoe adjusting screw. Remove brake shoe hold-down springs. Remove parking brake shoes. To install, reverse removal procedure. Adjust parking brake shoes. See PARKING BRAKE under ADJUSTMENTS.
