Clutch Pedal Position (CPP) Switch

Disconnect wiring harness from CPP switch. Using an ohmmeter, check for continuity between pins No. 1 and 2. See Fig 1 . Switch should be open (infinity) when pedal is up and clutch is engaged. Switch should be closed (zero ohms) when clutch pedal is pressed to floor. If switch does not function as specified, replace switch. See Fig 2 .

Fig 1: Identifying Clutch Pedal Position (CPP) Switch Pins

Courtesy of FORD MOTOR CO.

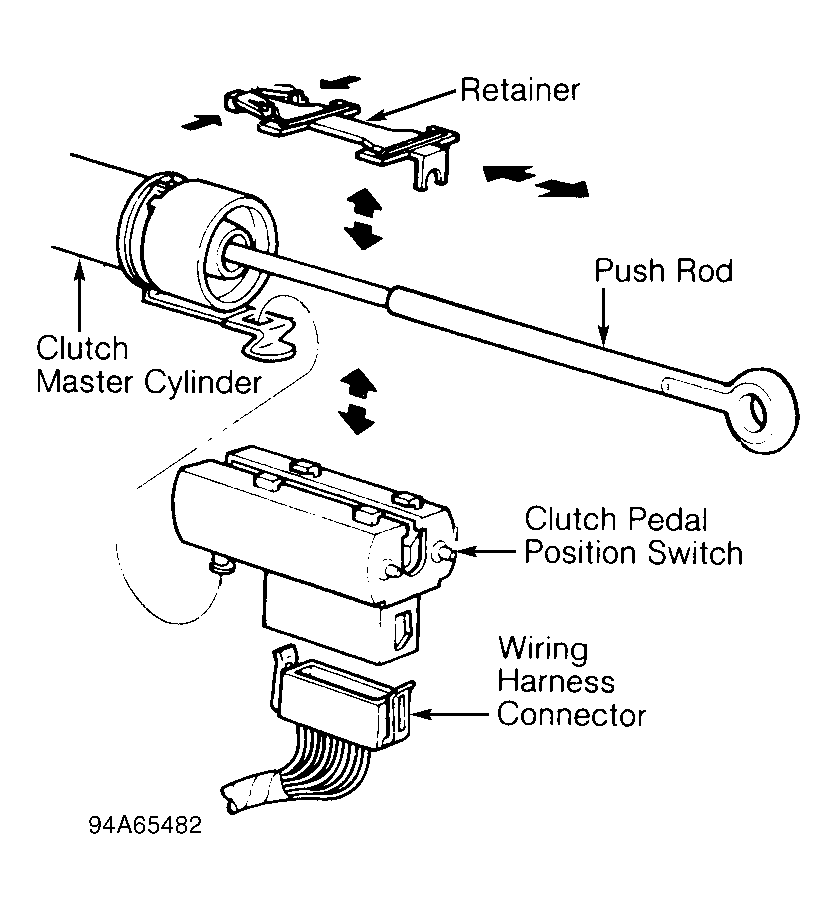

Fig 2: Identifying Clutch Pedal Position Switch & Components

Courtesy of FORD MOTOR CO.
