Reverse Brake Drum: Reassembly

Install one-way clutch with springs into reverse brake drum. Compress springs and install bearing rollers. See Fig 2 . After installing last roller, install Overrunning Clutch Replacing Guide (T74P-77193-A).

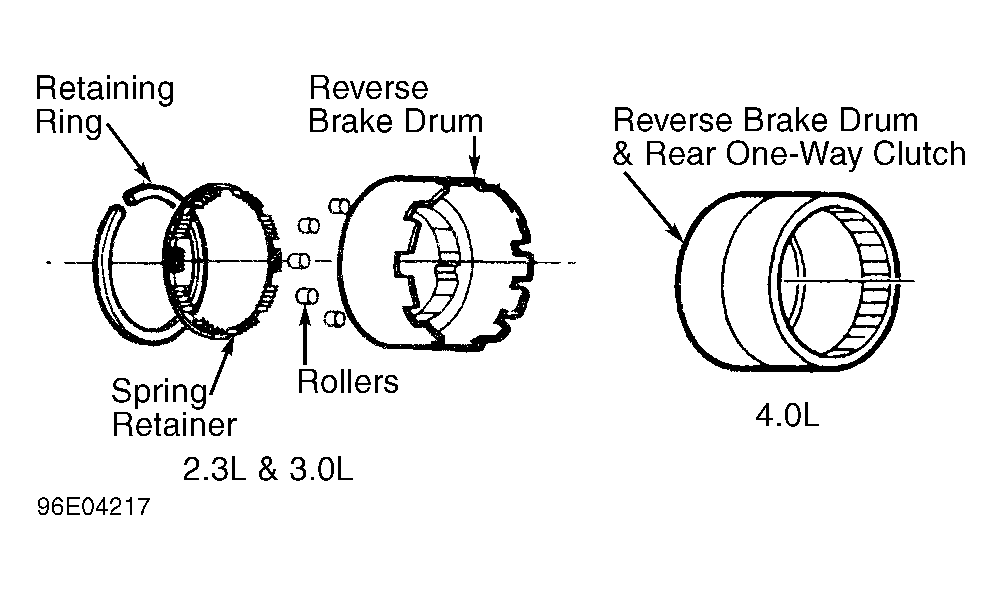

Fig 1: Exploded View Of Reverse Brake Drum

Courtesy of FORD MOTOR CO.

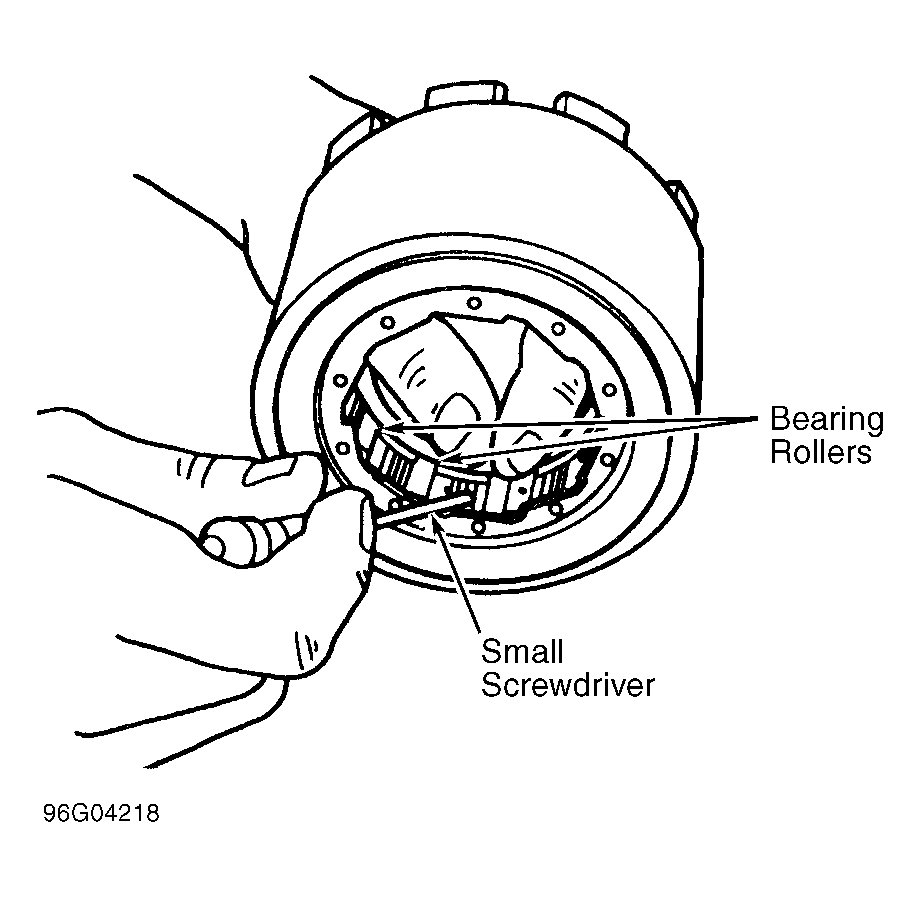

Fig 2: Installing Low One-Way Clutch Rollers

Courtesy of FORD MOTOR CO.
