Overdrive One-Way Clutch: Reassembly

  1. Install overdrive center shaft and overdrive one-way clutch into overdrive ring gear. Install center shaft retaining ring. Install No. 2 thrust bearing between overdrive center shaft face and planetary gear overdrive carrier. Install overdrive carrier into overdrive center shaft and overdrive ring gear.
  2. Ensure No. 12 thrust bearing race is centered and lip faces toward sun gear. Install overdrive sun gear into overdrive carrier. Install coast clutch adapter on overdrive sun gear. See Fig 2 .

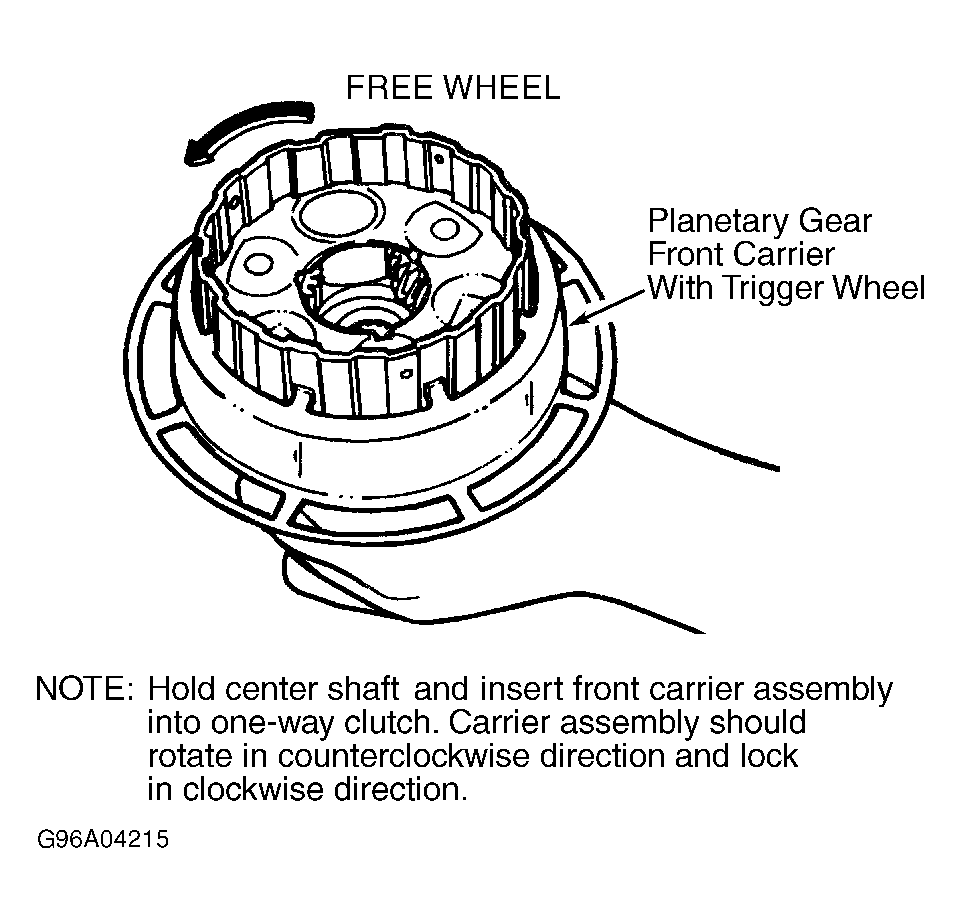

Fig 1: Overdrive One-Way Clutch Rotation
G96A04215Courtesy of FORD MOTOR CO.

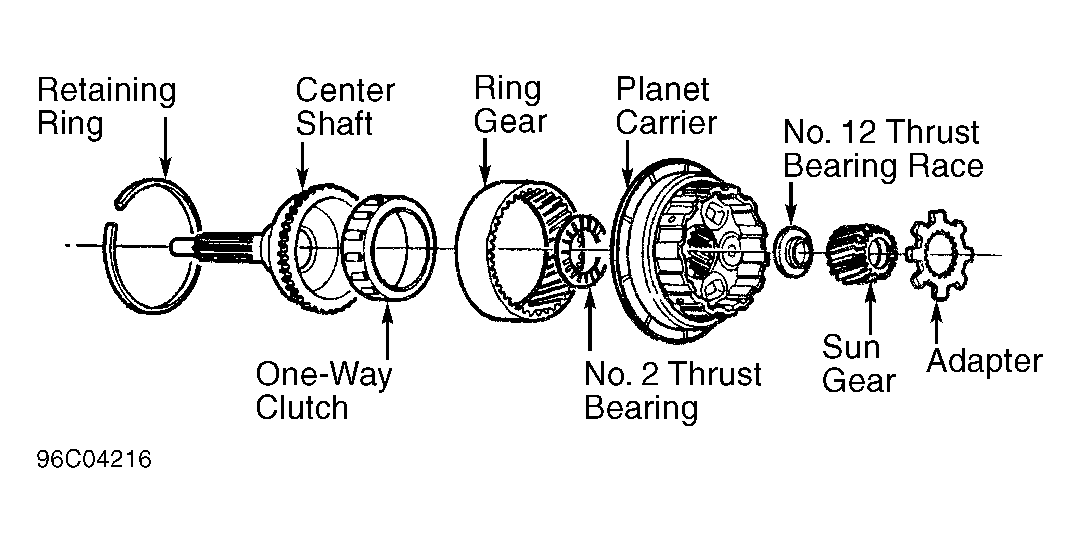

Fig 2: Exploded View Of Overdrive One-Way Clutch
G96C04216Courtesy of FORD MOTOR CO.
