Forward Gear Train Assembly: Assembly

  1. Install No. 5 thrust washer on direct clutch drum, ensure tabs are properly aligned. Install forward clutch assembly into direct clutch drum. Install No. 6A thrust bearing into clutch cylinder. Install No. 6B thrust washer into ring gear hub. Install ring gear and hub into clutch cylinder. See Fig 1 .
  2. Install No. 7 thrust bearing into ring gear. Install forward planet assembly into ring gear. Install input shell and forward sun gear assembly, ensure sun gear aligns with planet assembly and input shell aligns with direct clutch drum.

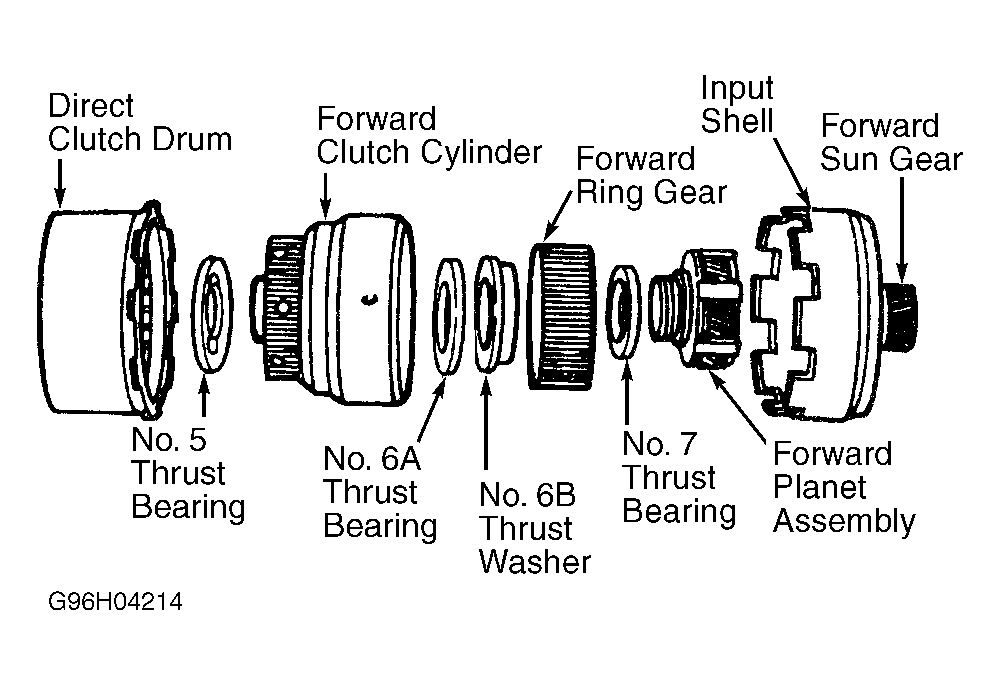

Fig 1: Exploded View Of Forward Gear Train Assembly
G96H04214Courtesy of FORD MOTOR CO.
