CONVERTOR Housing & Pump: Disassembly

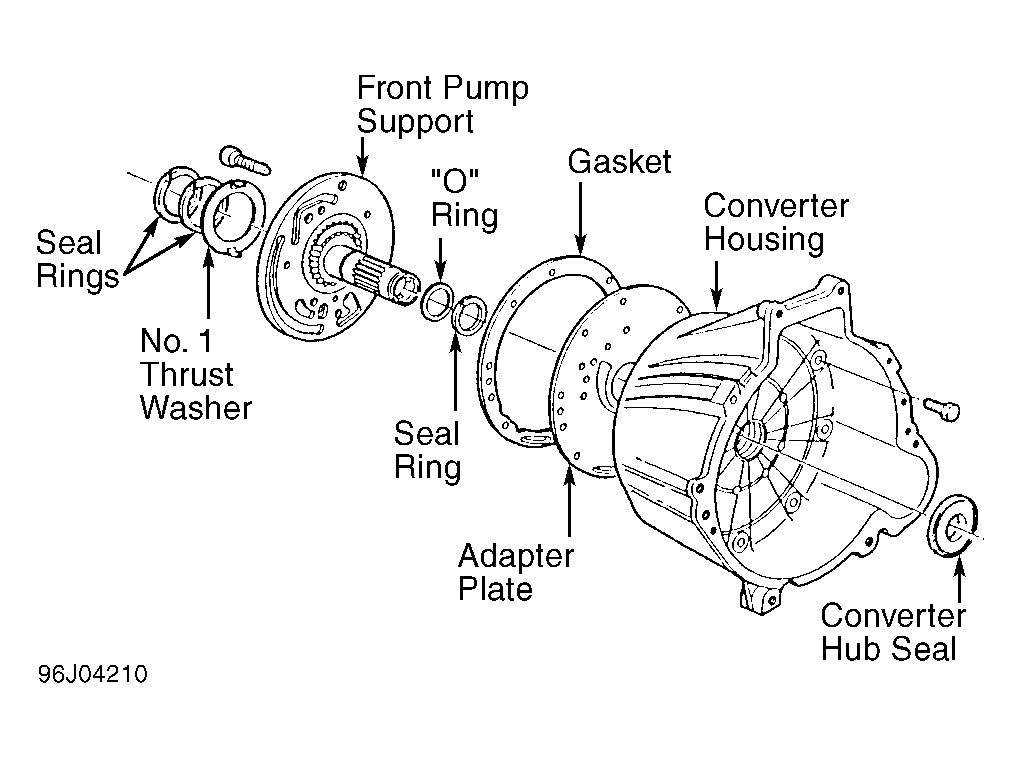

Remove front pump gasket, square cut seal ring, 2 overdrive brake drum seal rings and front pump support seal ring. See Figure . Remove front pump-to-convertor housing bolts. Remove front pump support, gear and adapter plate. Remove pump gears. Remove metal displaced by prior staking. Remove front pump seal. See related components under CLEANING & INSPECTION  .
