Rear Suspension Upper Arm Bushing: Removal

  1. Remove rear suspension upper arm. See REAR SUSPENSION UPPER ARM  .
  2. Unstake rear suspension upper arm bushing. See Fig 1 .

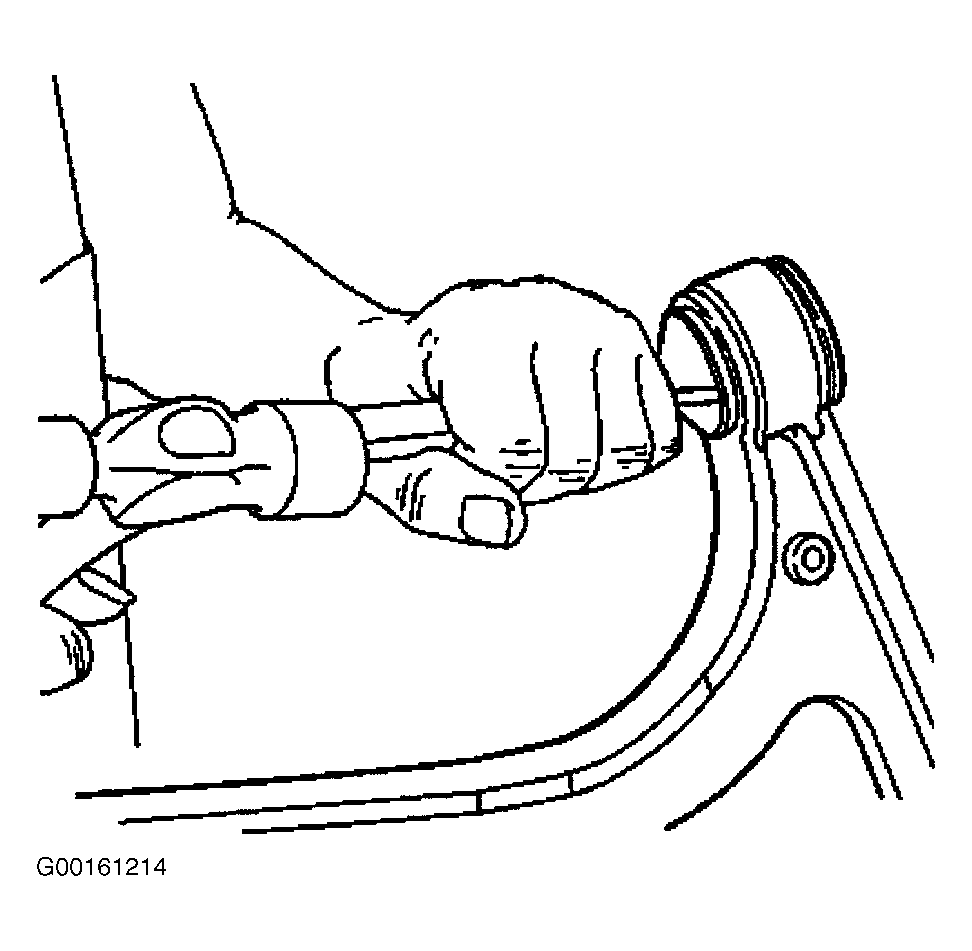

    Fig 1: Unstaking Rear Suspension Upper Arm Bushing
    G00161214Courtesy of FORD MOTOR CO.
  3. Press bushing from rear suspension upper arm bushing using Bushing Remove (T85T-5638-AH4), Receiving Cup (T85T-5638-AH6) and Forcing Screw (T78P-5638-A1). See Fig 2 . Discard bushing.

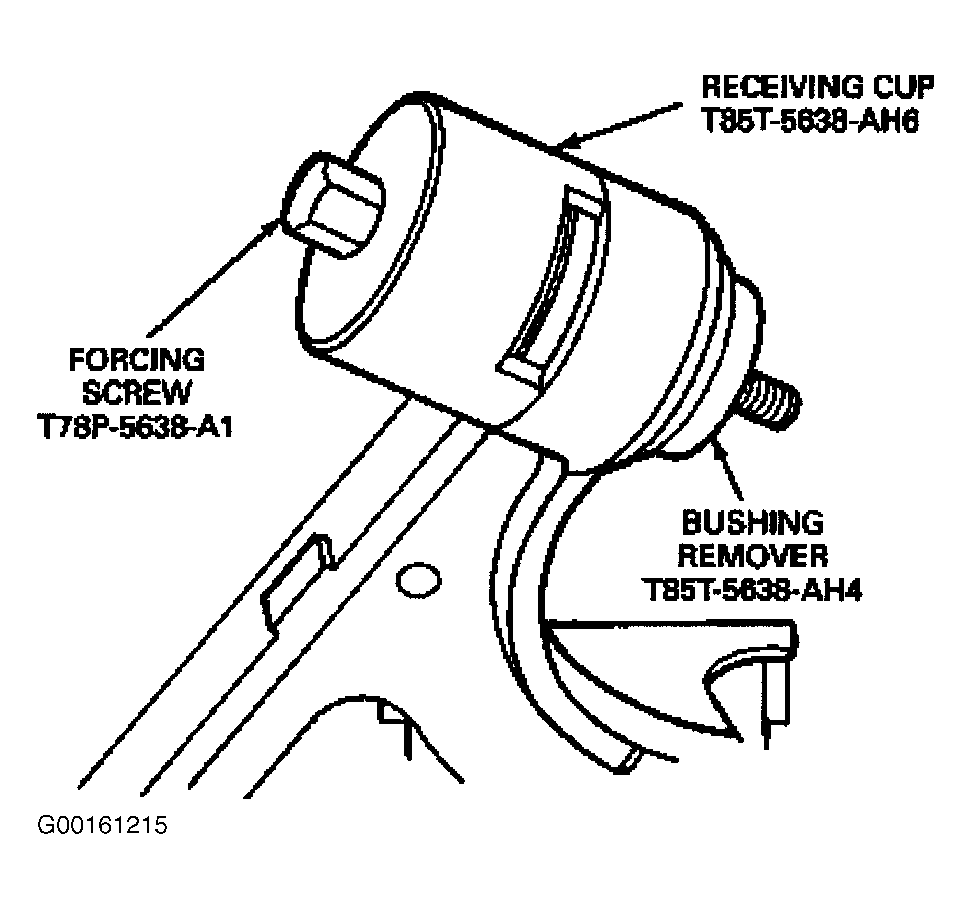

    Fig 2: Removing Rear Suspension Upper Arm Bushing
    G00161215Courtesy of FORD MOTOR CO.
