Rear Suspension Upper Arm Bushing: Installation

Press a new bushing in the rear suspension upper arm using Receiving Cup (T85T-5638-AH6), Bushing Replacer (T85T-5638-AH10) and Forcing Screw (T78P-5638-A1). See Fig 1 .

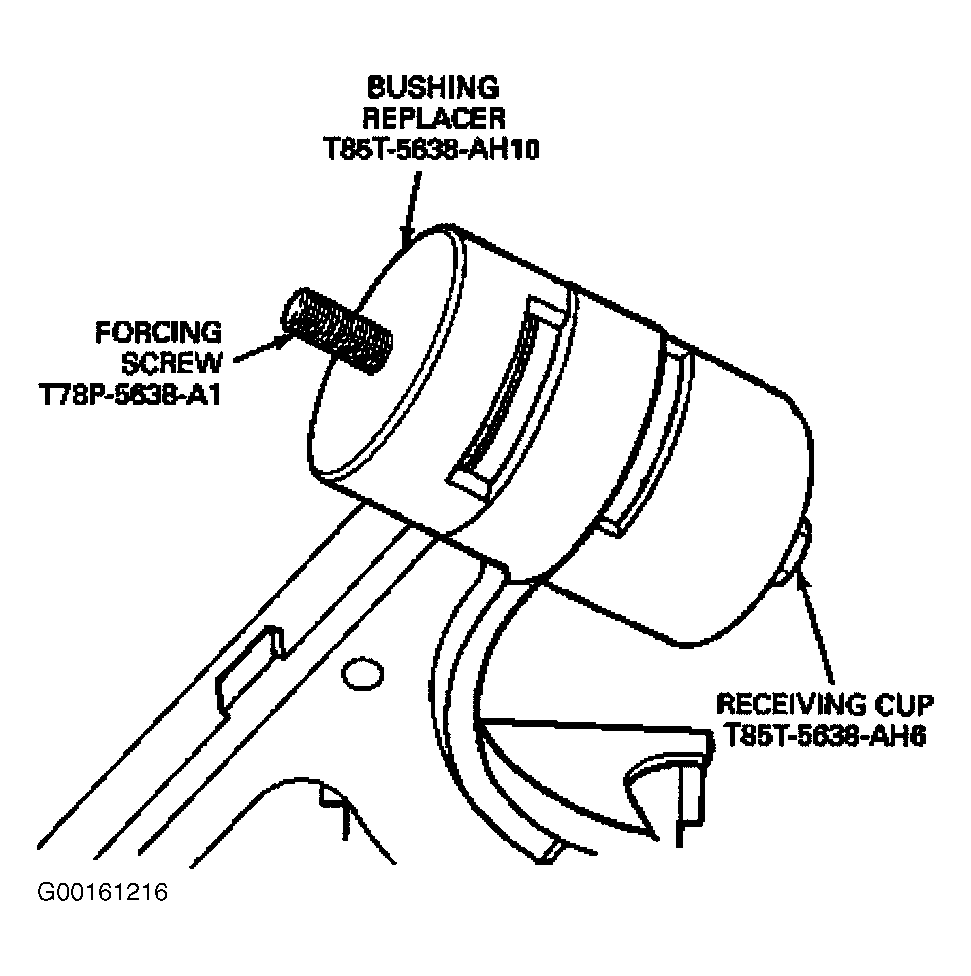

Fig 1: Installing Rear Suspension Upper Arm Bushing
Courtesy of FORD MOTOR CO.
Stake the bushing in place. Install rear suspension upper arm. See REAR SUSPENSION UPPER ARM .
