Lower Control Arm Bushings: Installation

  1. Press a new frame bushing in the lower control arm using Receiving Cup (T85T-5638-AH6), Spacer (T85T-5638-AH8), Bushing Replacer (T85T-5638-AH5) and Forcing Screw (T78P-5638-A1). Install bushing with notch in bushing flange toward the rear of vehicle.
  2. Stake the frame bushing in the lower control arm.
  3. Press a new axle bushing in the lower control arm using Nut (T78P-5638-A5), Bushing Replacer (T85T-5638-AH3), Spacer (T85T-5638-AH7), Receiving Cup (T85T-5638-AH2) and Forcing Screw (T78P-5638-A1). Install the bushing with notch in bushing flange toward the rear of vehicle. See Fig 1 .

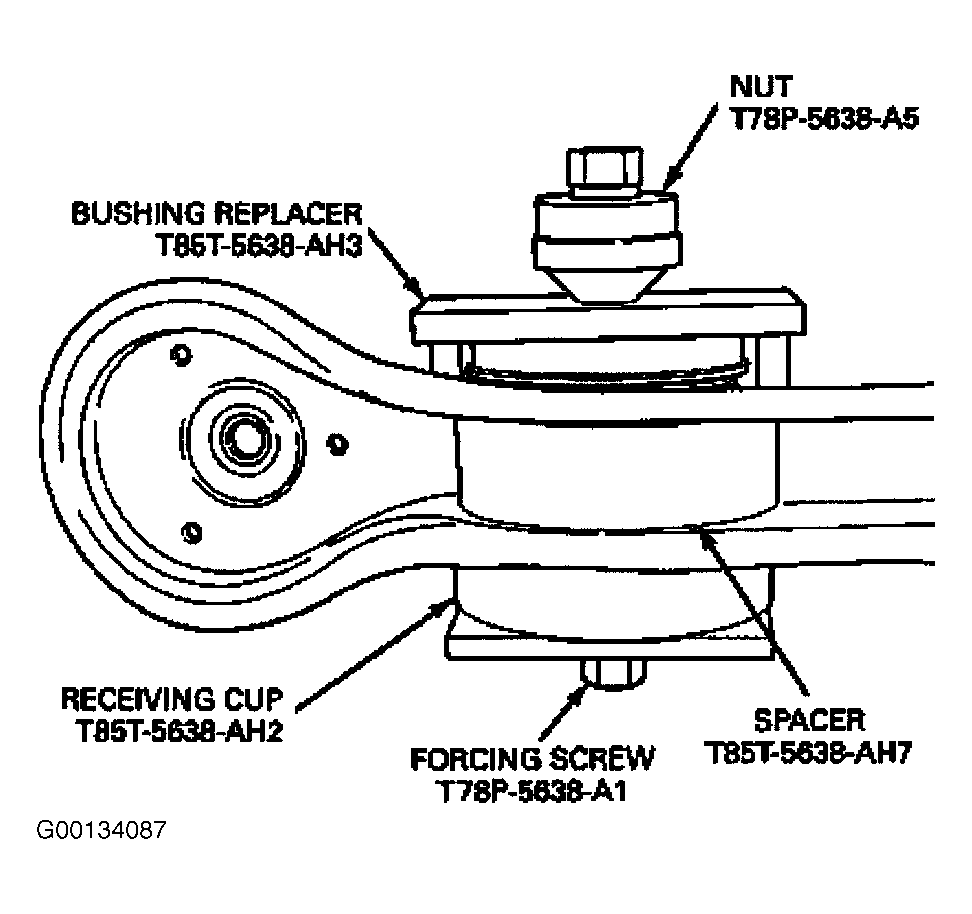

    Fig 1: Installing Lower Control Arm Axle Bushing
    G00134087Courtesy of FORD MOTOR CO.
  4. Stake the axle bushing in the lower control arm.
  5. Install the lower control arm. See LOWER CONTROL ARM  .
