Coil Spring: Removal

Using frame hoist, raise the vehicle and position tall jack under rear axle. Raise jack until axle is raised slightly (load removed from shock absorber).
Remove shock absorber-to-axle mount nut and bolt. See Fig 1 .

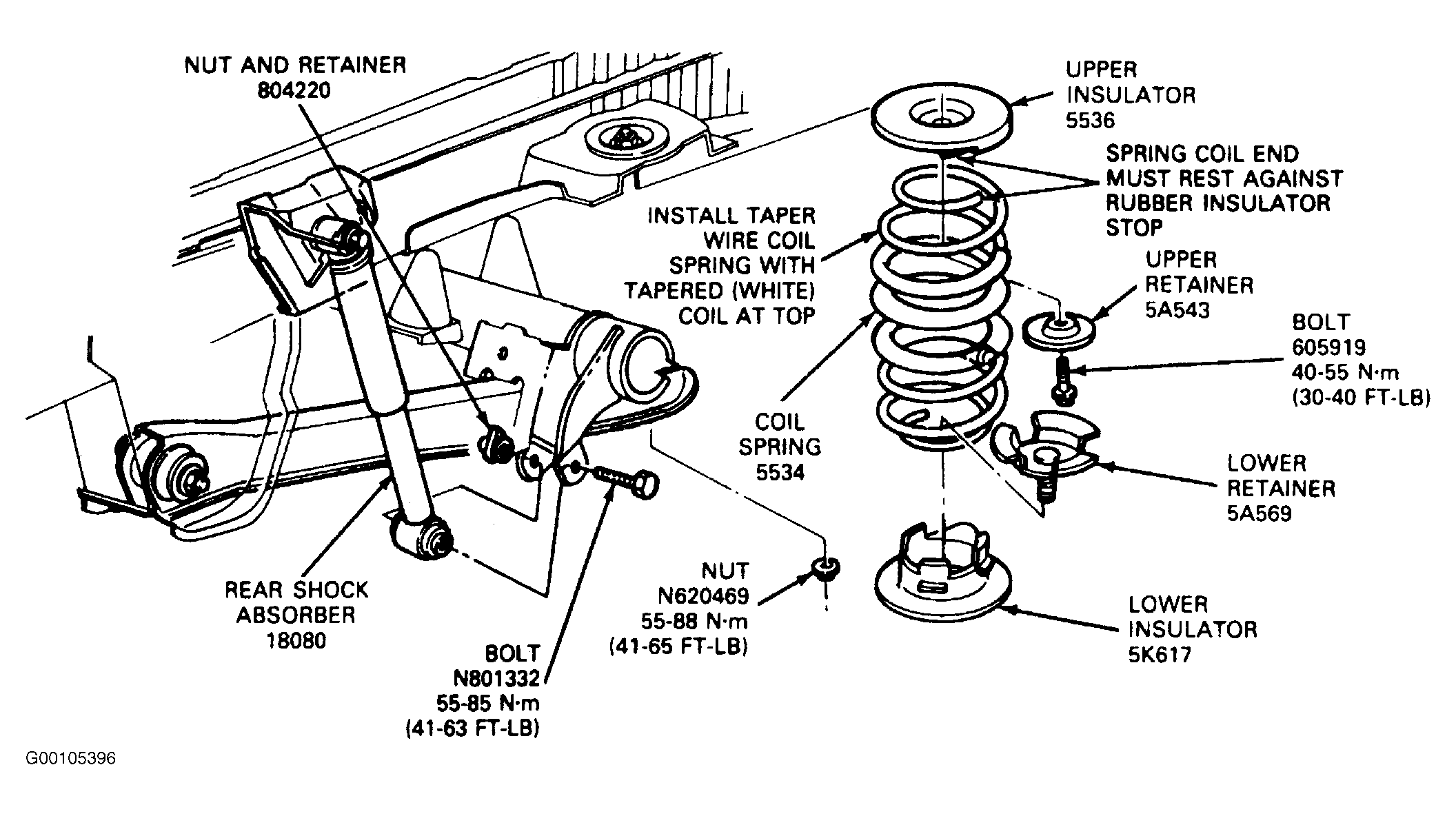

Fig 1: Exploded View Of Coil Spring Components
Courtesy of FORD MOTOR CO.
Disconnect the shock absorber from axle bracket.
Lower the rear axle until the rear springs are no longer under compression.
Remove lower retainer and spring-to-rear suspension lower arm nut.
Remove upper retainer and spring-to-frame bolt.
Remove the rear spring and retainers. See Fig 2 and Figure .
Remove the upper and lower insulators.

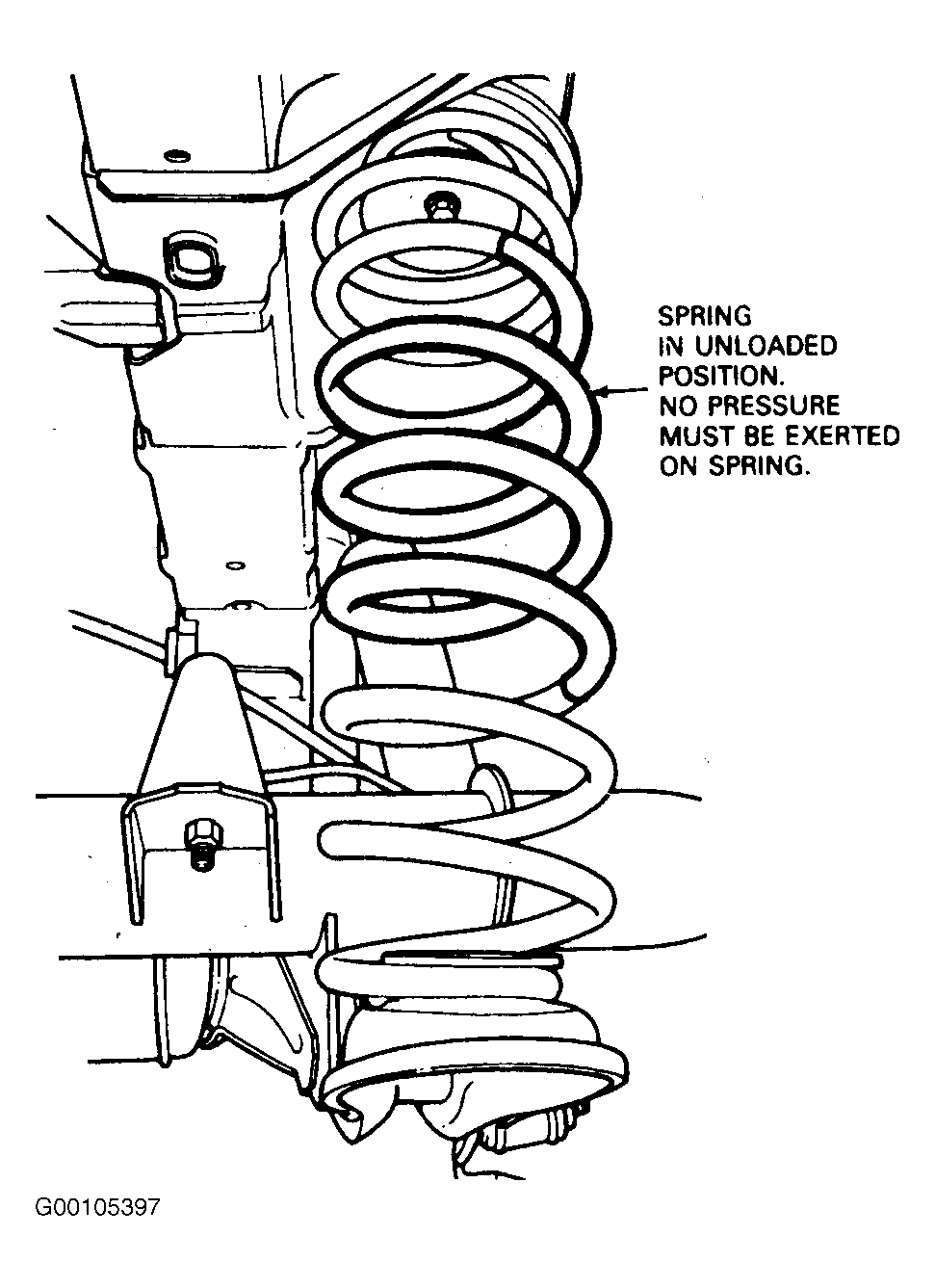

Fig 2: Removing Coil Spring

Courtesy of FORD MOTOR CO.
