Front Suspension - (2WD): Description

Front suspension consists of front wheel spindles, front suspension upper and lower arms with integral ball joints and bushings, adjustment shims, front coil springs, front shock absorbers and a front stabilizer bar. See Fig 1 .

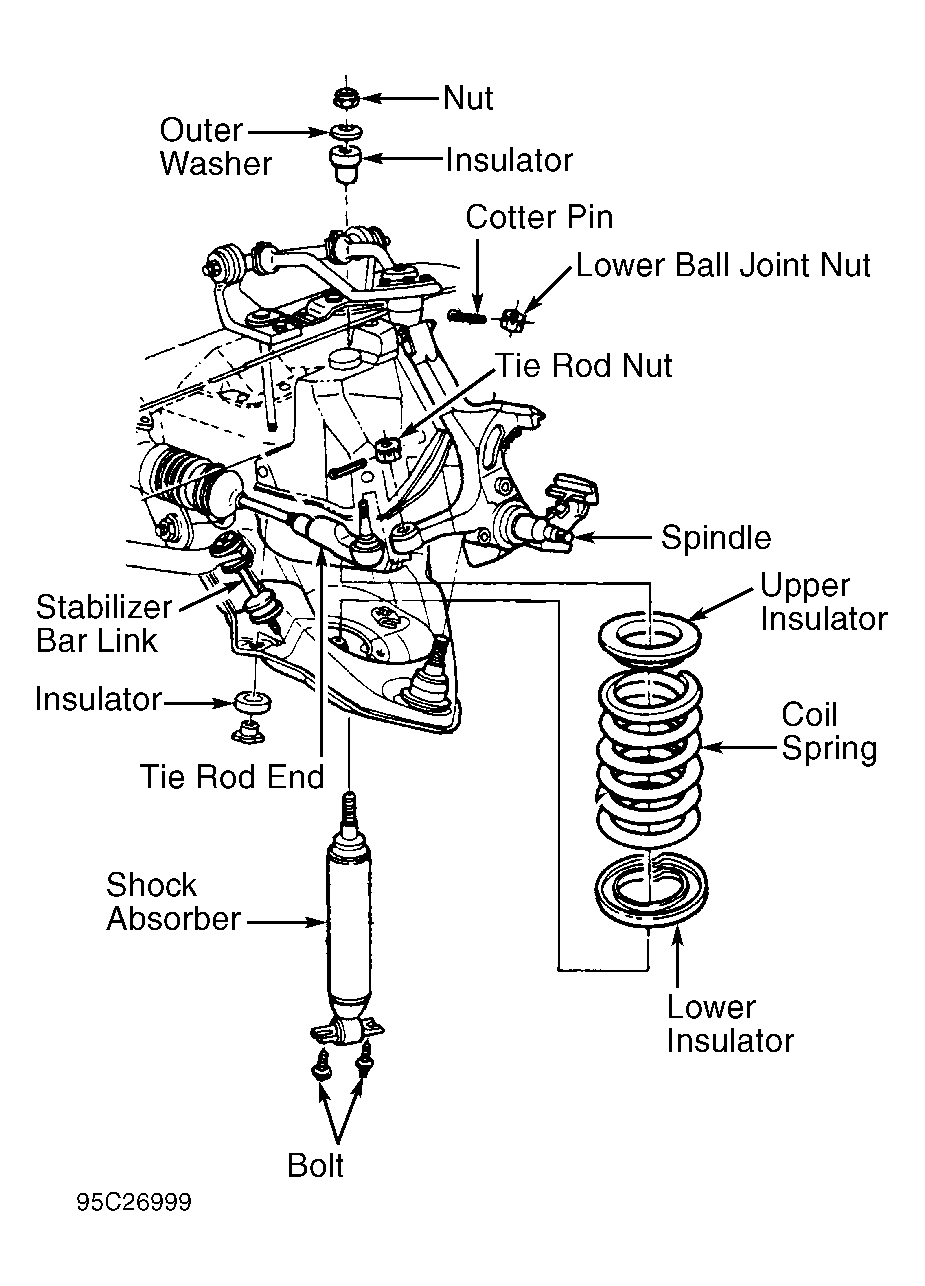

Fig 1: Exploded View Of Front Suspension

Courtesy of FORD MOTOR CO.
