Right Front Impact Sensor: Removal

Before proceeding, read and understand all air bag service precautions. See SERVICE PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Right front sensor is located under vehicle and is attached to right frame rail. See Fig 1 and Fig 2 . Disconnect sensor connector. Remove retaining screws and sensor.

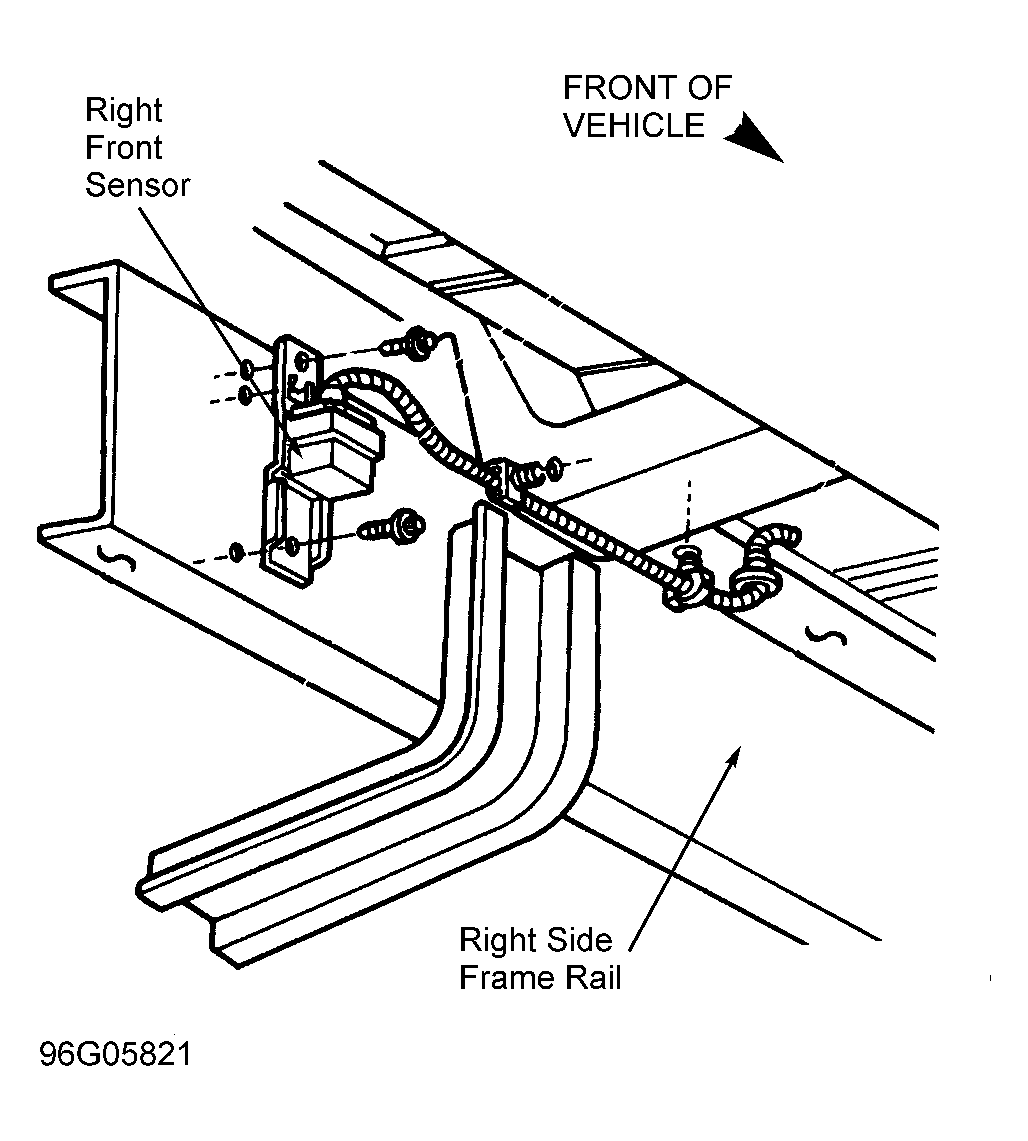

Fig 1: Locating Right Front Impact Sensor (Econoline)

Courtesy of FORD MOTOR CO.

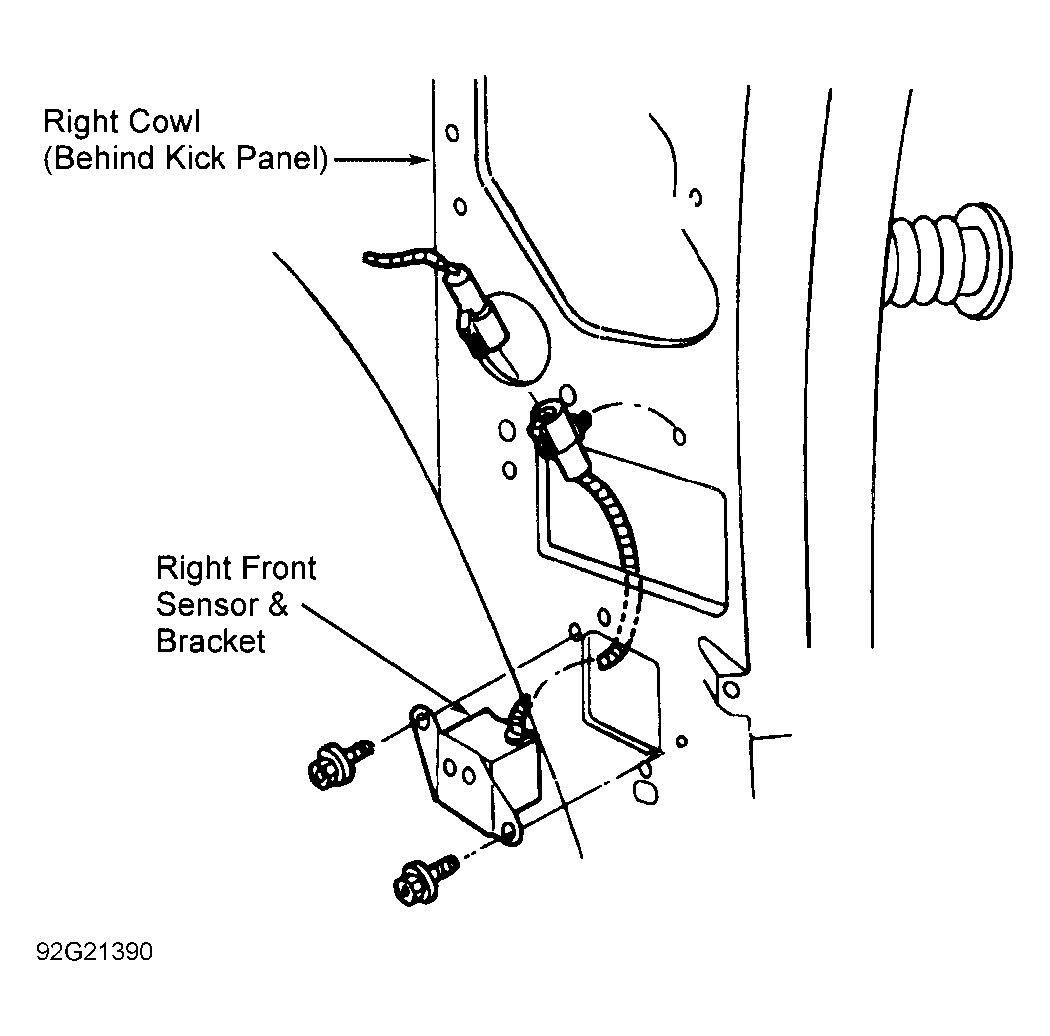

Fig 2: Locating Right Front Impact Sensor (Aerostar)

Courtesy of FORD MOTOR CO.
