Center Front Impact Sensor: Removal

Before proceeding, read and understand all air bag service precautions. See SERVICE PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Center sensor is located on upper radiator support. See Fig 1 and Fig 2 . Disconnect center front sensor connector. Remove retaining screws and sensor.

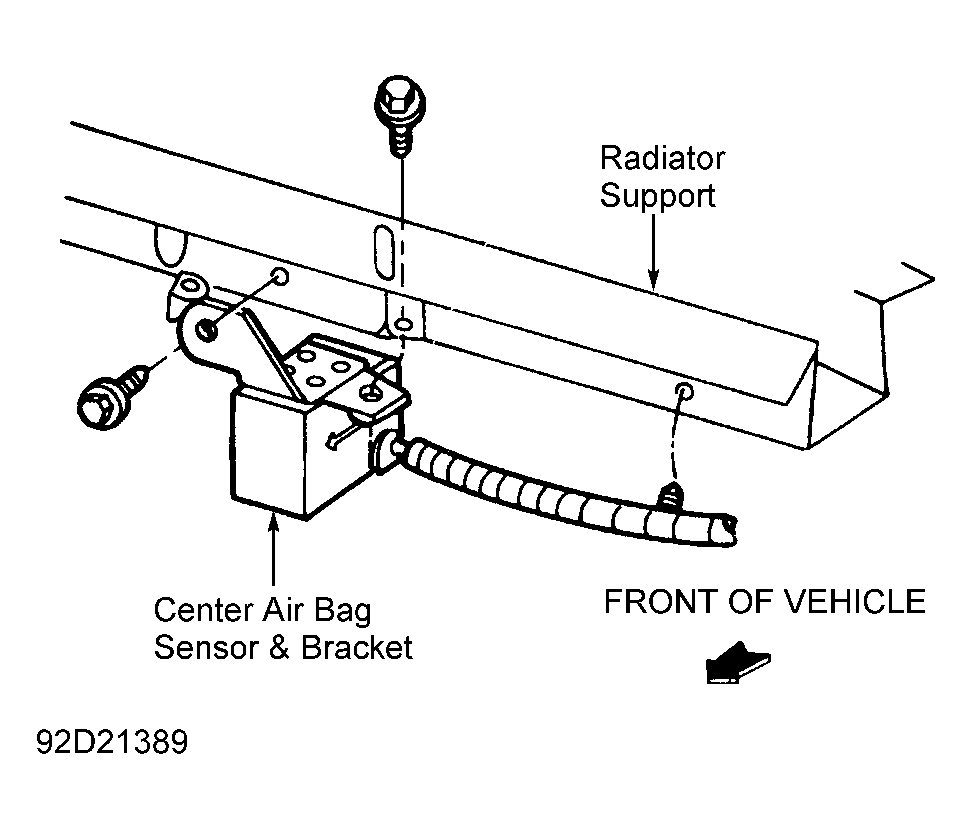

Fig 1: Locating Center Front Impact Sensor (Econoline)

Courtesy of FORD MOTOR CO.

Fig 2: Locating Center Front Impact Sensor (Aerostar)

Courtesy of FORD MOTOR CO.
