Description & Operation: CLOCKSPRING

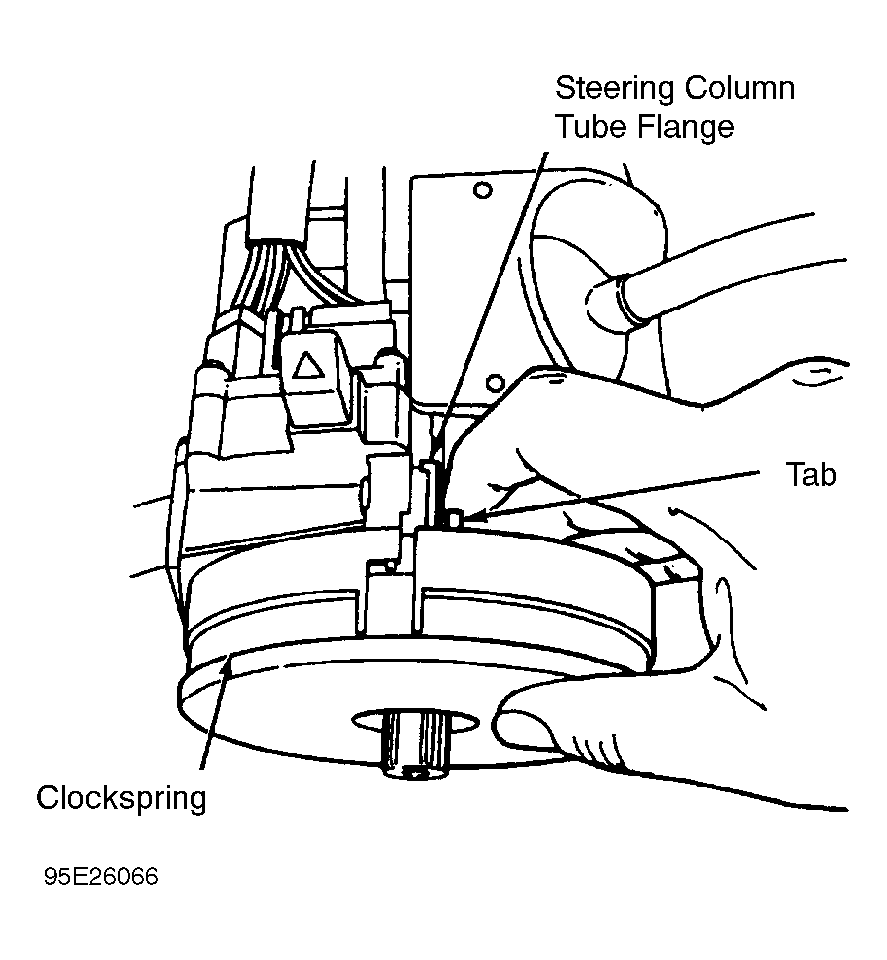

The steering column contains a clockspring contact assembly to transfer electrical signals from steering column wiring harness to air bag module. Clockspring is mounted on steering column between column and steering wheel. See Fig 1 .
