Valve Lifters: Installation
WARNING: This page is about a different variant/trim than selected.

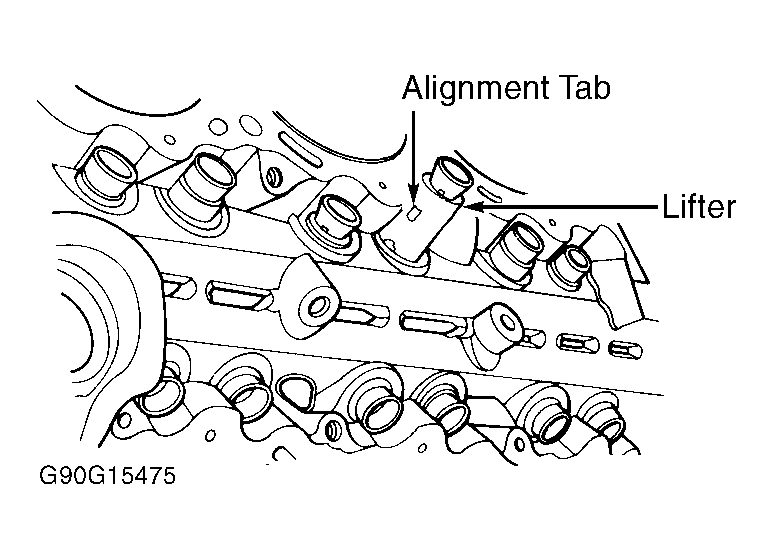

Lubricate lifter and cylinder block bore with Oil Conditioner (D9AZ-19579-D) or heavy engine oil. Install lifter in original location, with alignment tab in locating groove of bore. See Fig 1. Ensure lifters slide freely in bore. To complete installation, reverse removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS table.
