Millenia S (2.3L)
WARNING: This page is about a different car, the 1995 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.

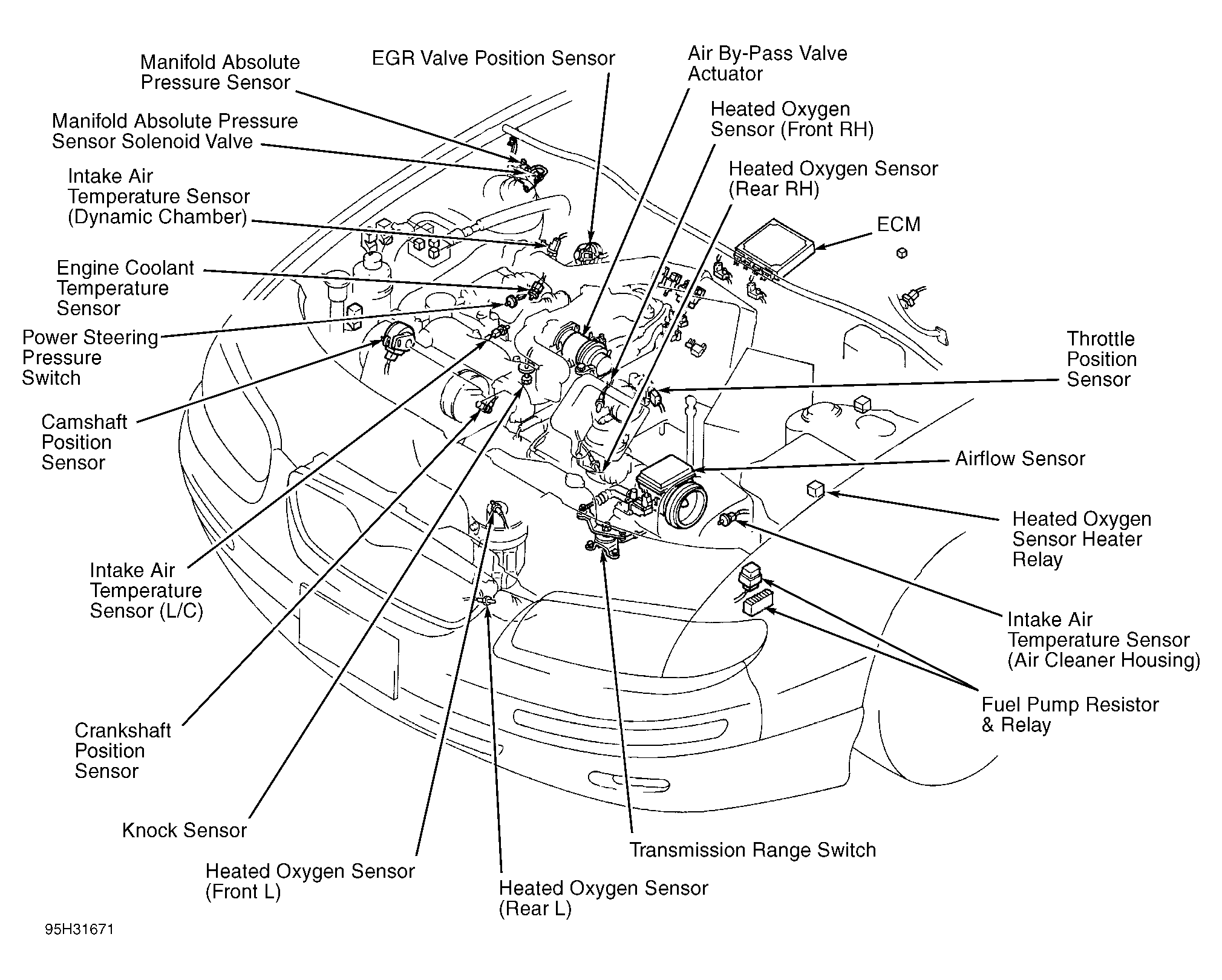

Millenia S uses 3 different intake air temperature sensors. Each IAT sensor has unique resistance characteristics. Locate and disconnect sensor(s) in question. See Figure . Using a DVOM, measure resistance across sensor terminals. Replace sensor if resistance is not within specification. See appropriate IAT SENSOR RESISTANCE table.
IAT SENSOR RESISTANCE (MILLENIA S)
| Temperature | Ohms | |
|---|---|---|
| IAT Sensor In Air Cleaner | ||
| 68°F (20°C) | 2450 | |
| 176°F (80°C) | 320 | |
| IAT Sensor In Intake Manifold | ||
| 77°F (25°C) | 32900 | |
| 176°F (80°C) | 4100 | |
| IAT Sensor Under Supercharger | ||
| 212°F (100°C) | 5600-6900 | |
| 320°F (160°C) | 1270 | |
