Section 59 (Vacuum Diagrams - 2.0L): Introduction

WARNING: This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC TESTING - 2.0L article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer indicated malfunctions.

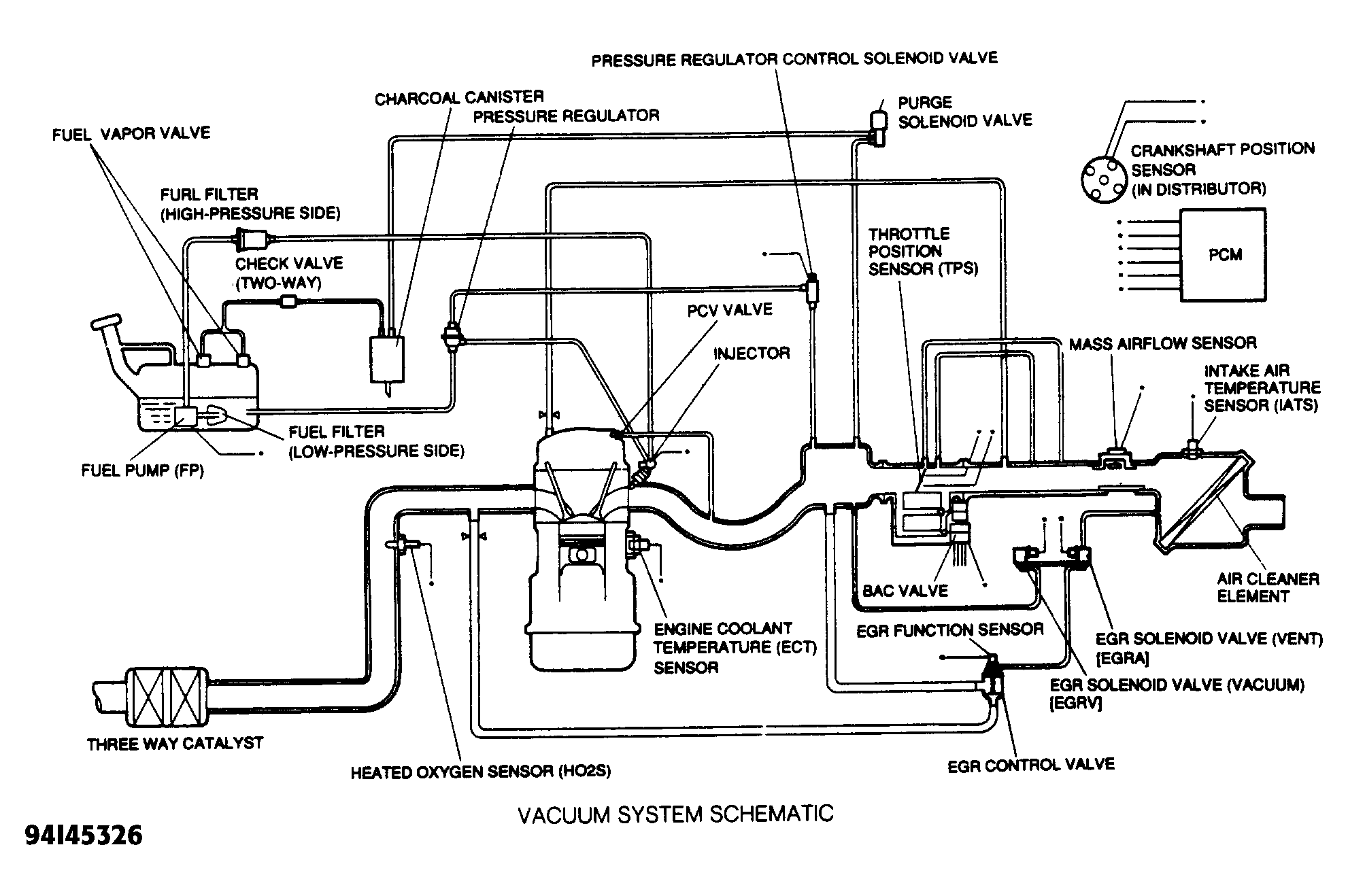

Fig 1: Vacuum Diagram (MX-6 & 626 2.0L A/T) Vacuum System Schematic

Courtesy of MAZDA MOTORS CORP.

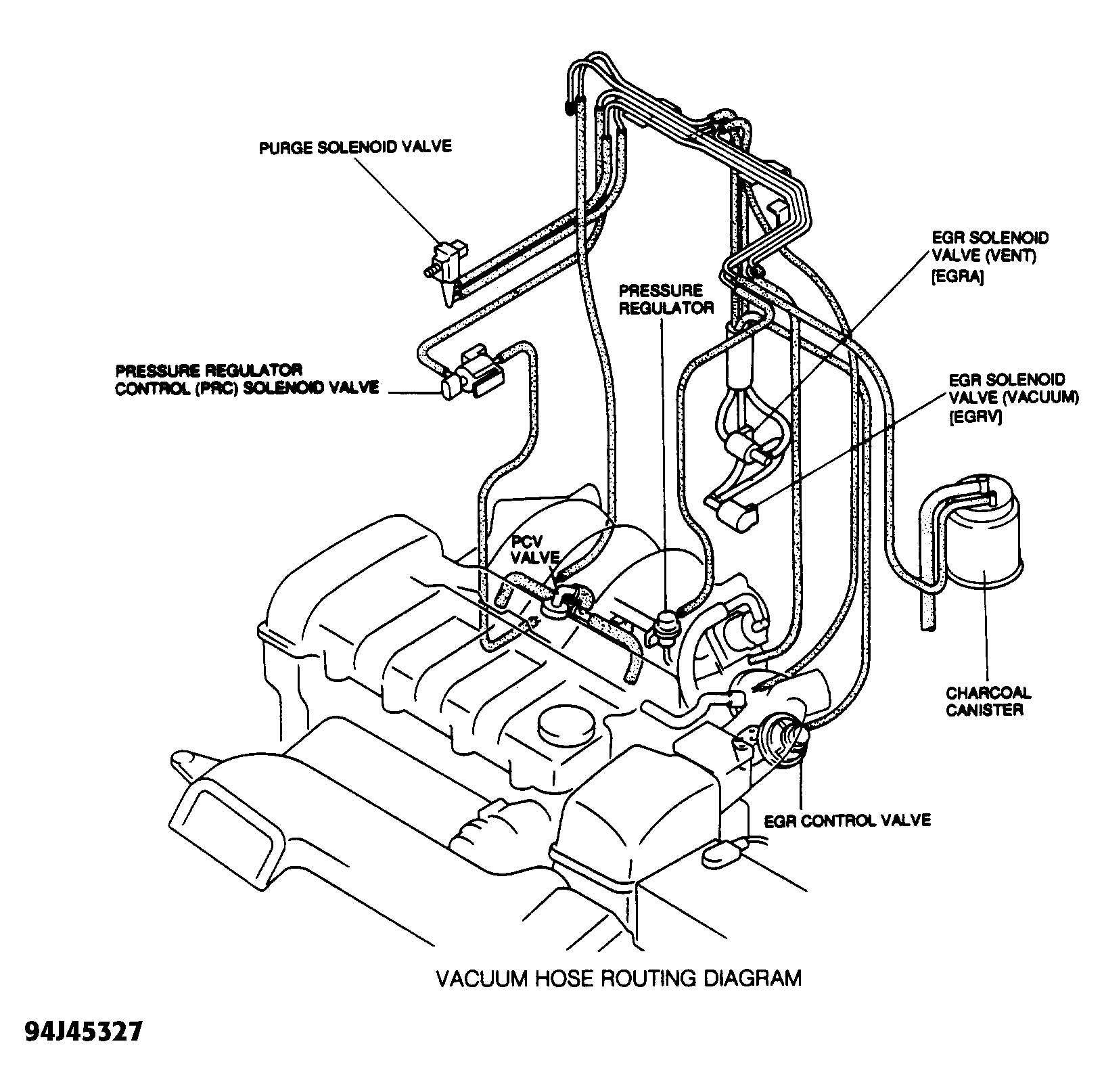

Fig 2: Vacuum Diagram (MX-6 & 626 2.0L A/T) Vacuum Hose Routing

Courtesy of MAZDA MOTORS CORP.

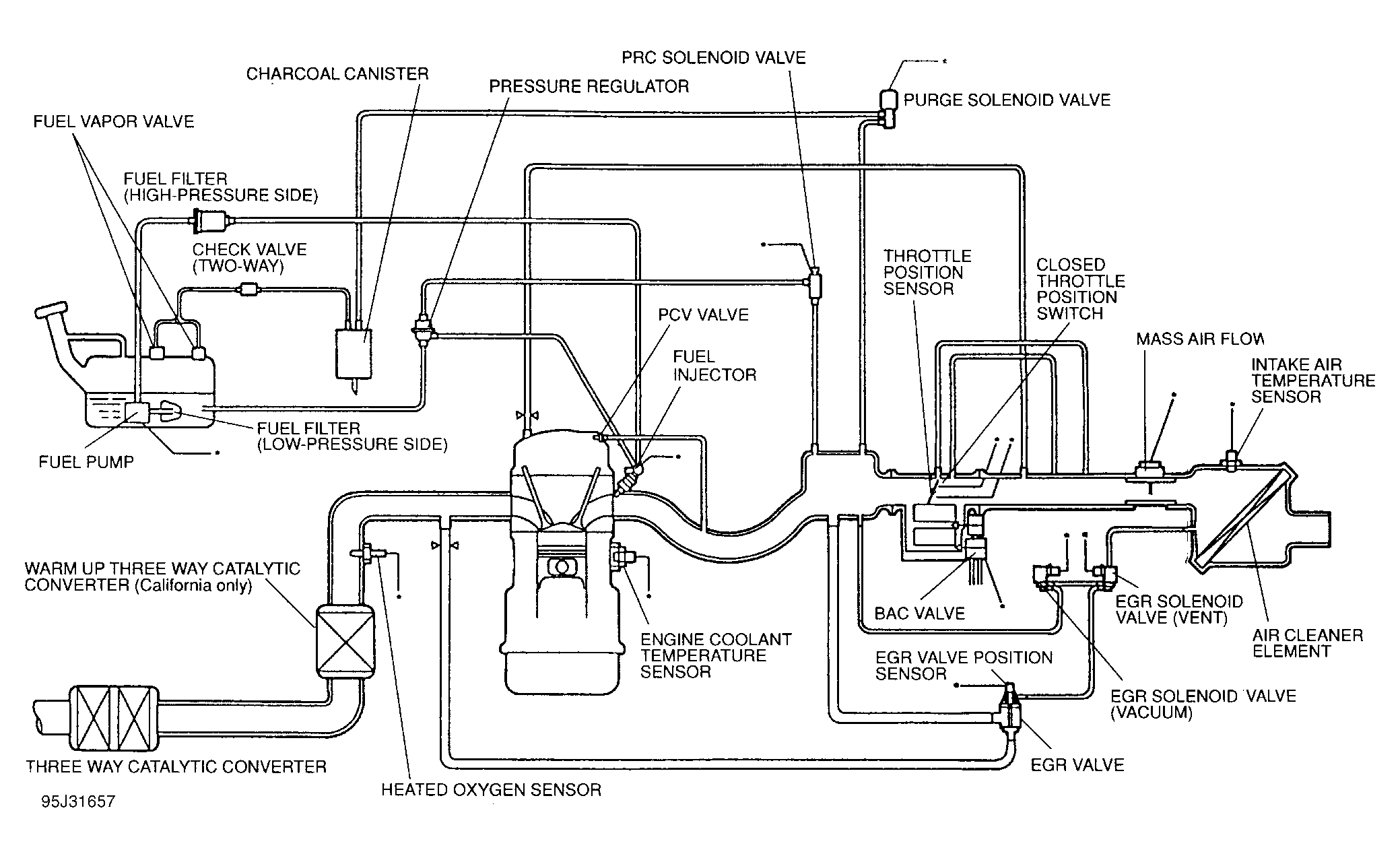

Fig 3: Vacuum Diagram (MX-6 & 626 2.0L M/T) Vacuum System Schematic

Courtesy of MAZDA MOTORS CORP.

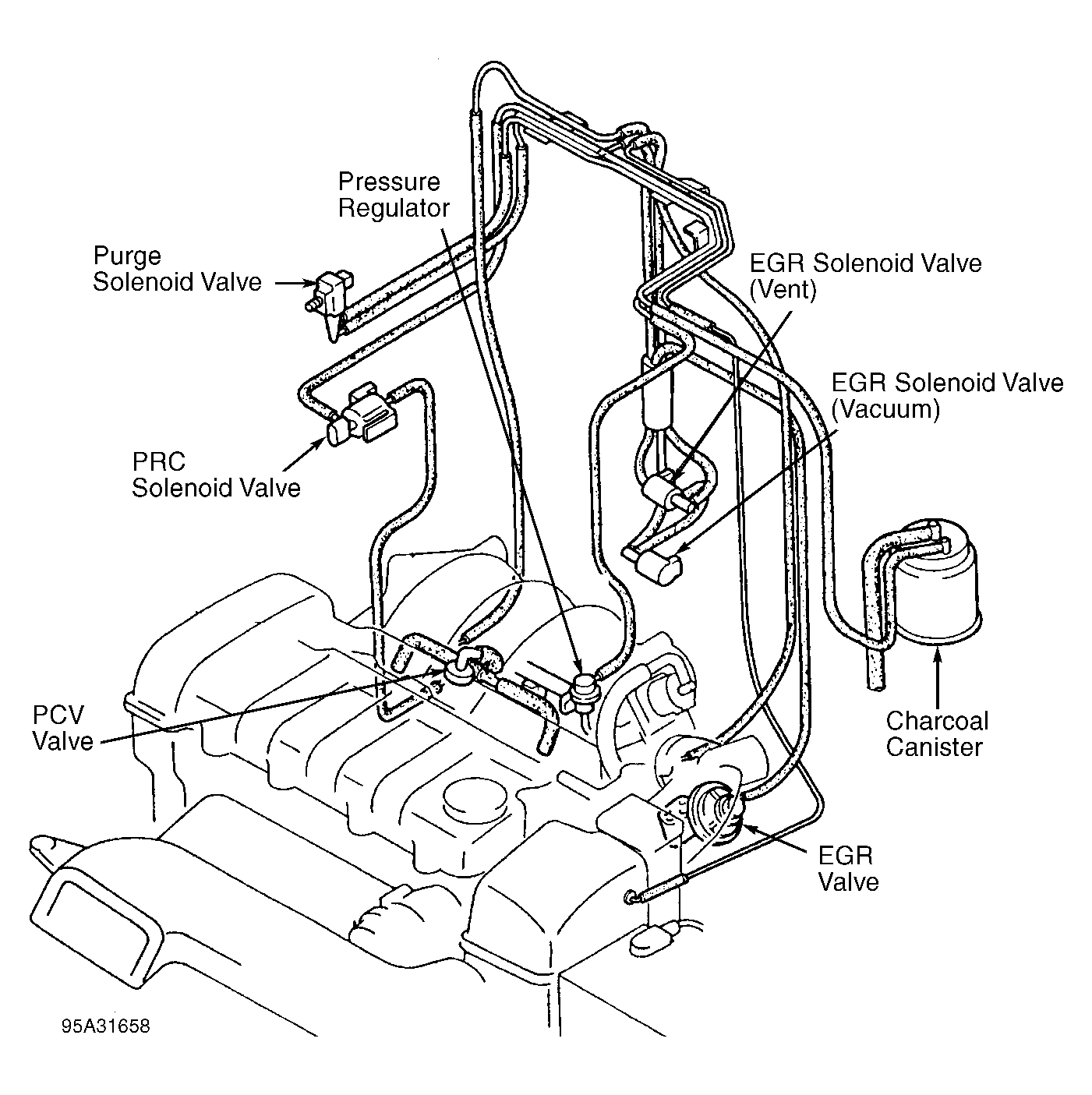

Fig 4: Vacuum Diagram (MX-6 & 626 2.0L M/T) Vacuum Hose Routing

Courtesy of MAZDA MOTORS CORP.
