Section 48 (Vacuum Diagrams): Introduction

WARNING: This page is about a different car, the 1995 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC TESTING article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer indicated malfunctions.

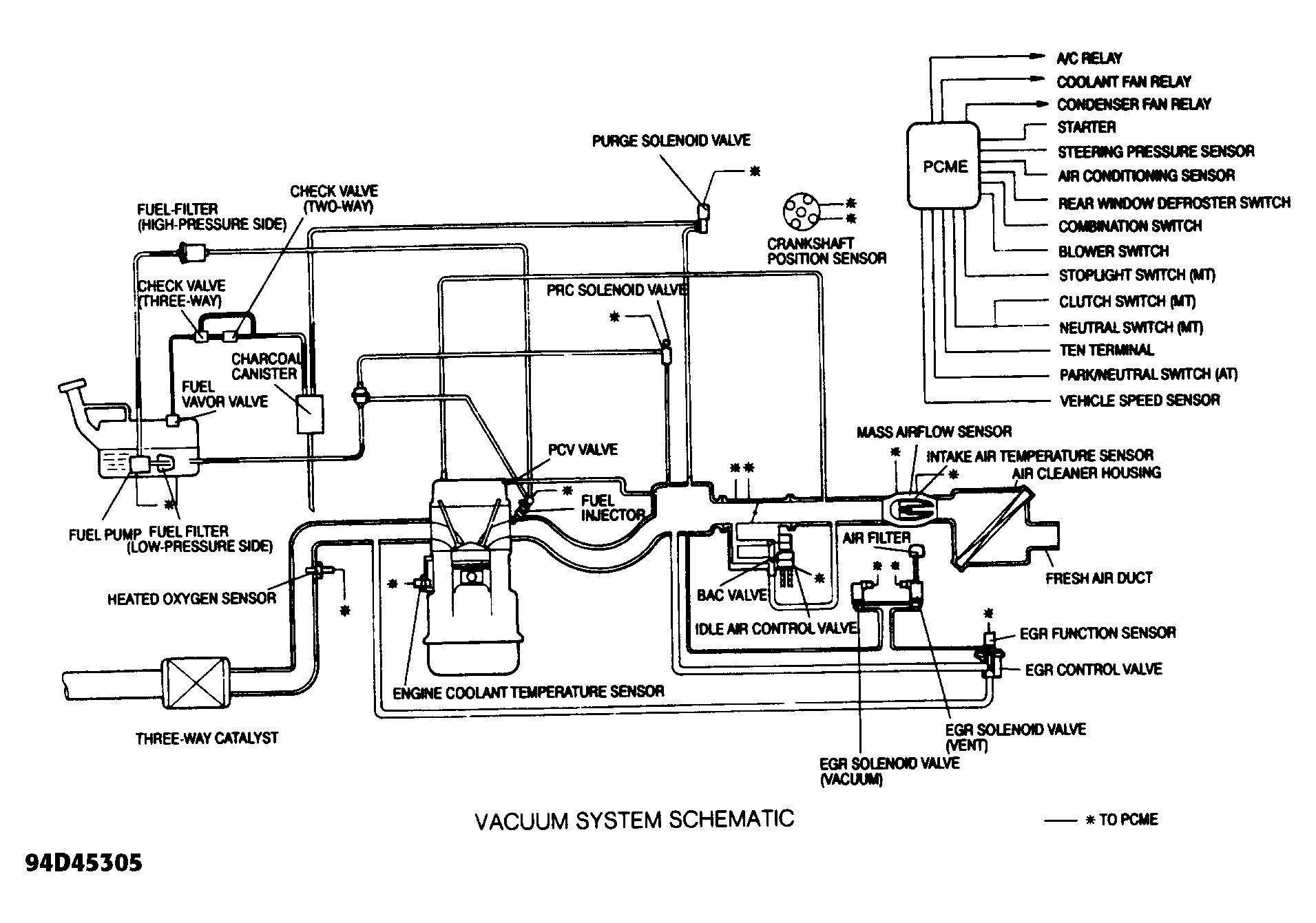

Fig 1: Vacuum Diagram System Schematic

Courtesy of MAZDA MOTORS CORP.

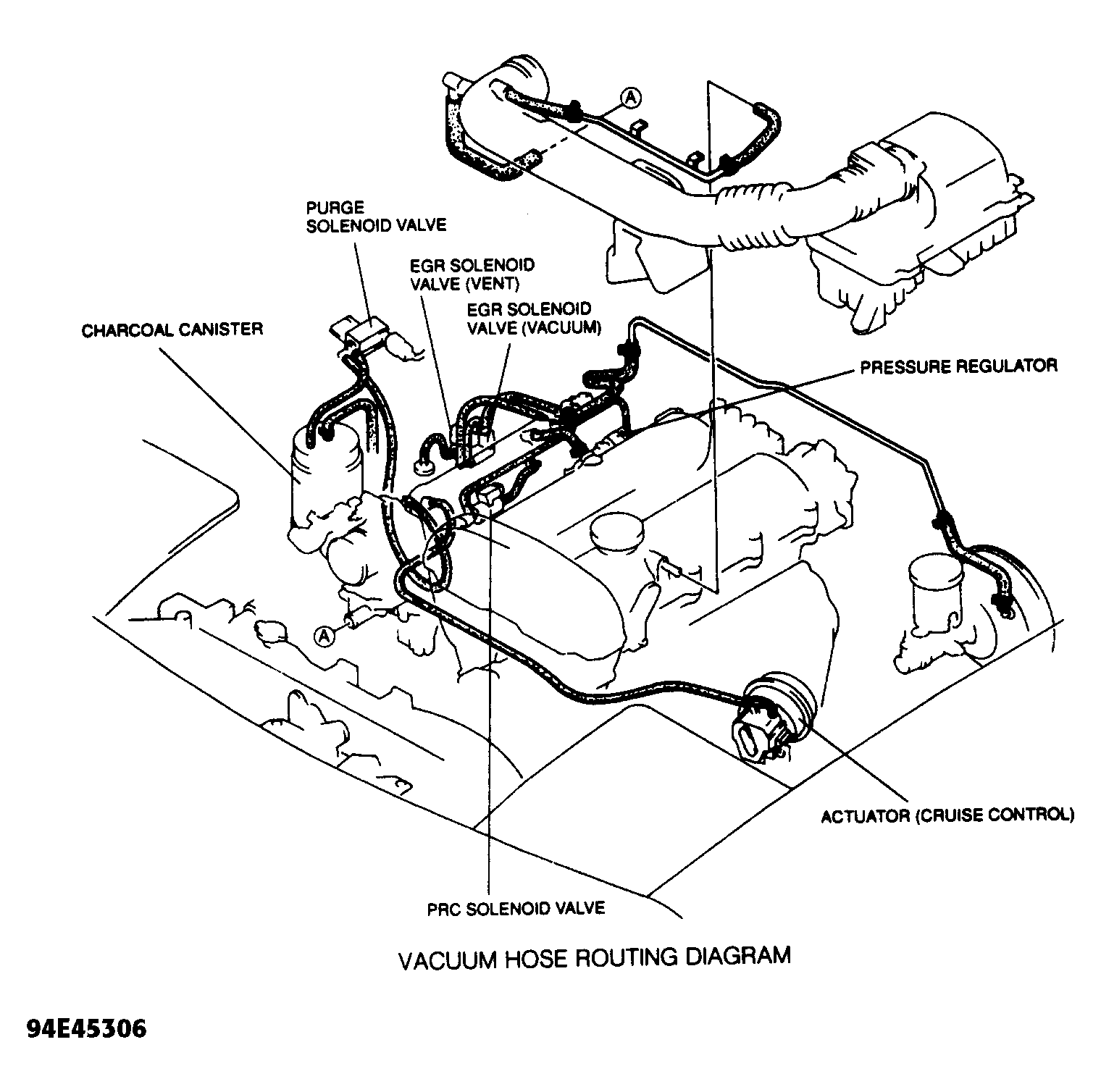

Fig 2: Vacuum Diagram Hose Routing

Courtesy of MAZDA MOTORS CORP.
