Section 44 (Engine Controls - Tests W/Codes - 2.5L)
>>
Trouble Code Charts
>>
Code 41: VRIS No. 1 Solenoid Valve
Code 41: VRIS No. 1 Solenoid Valve
WARNING:
This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

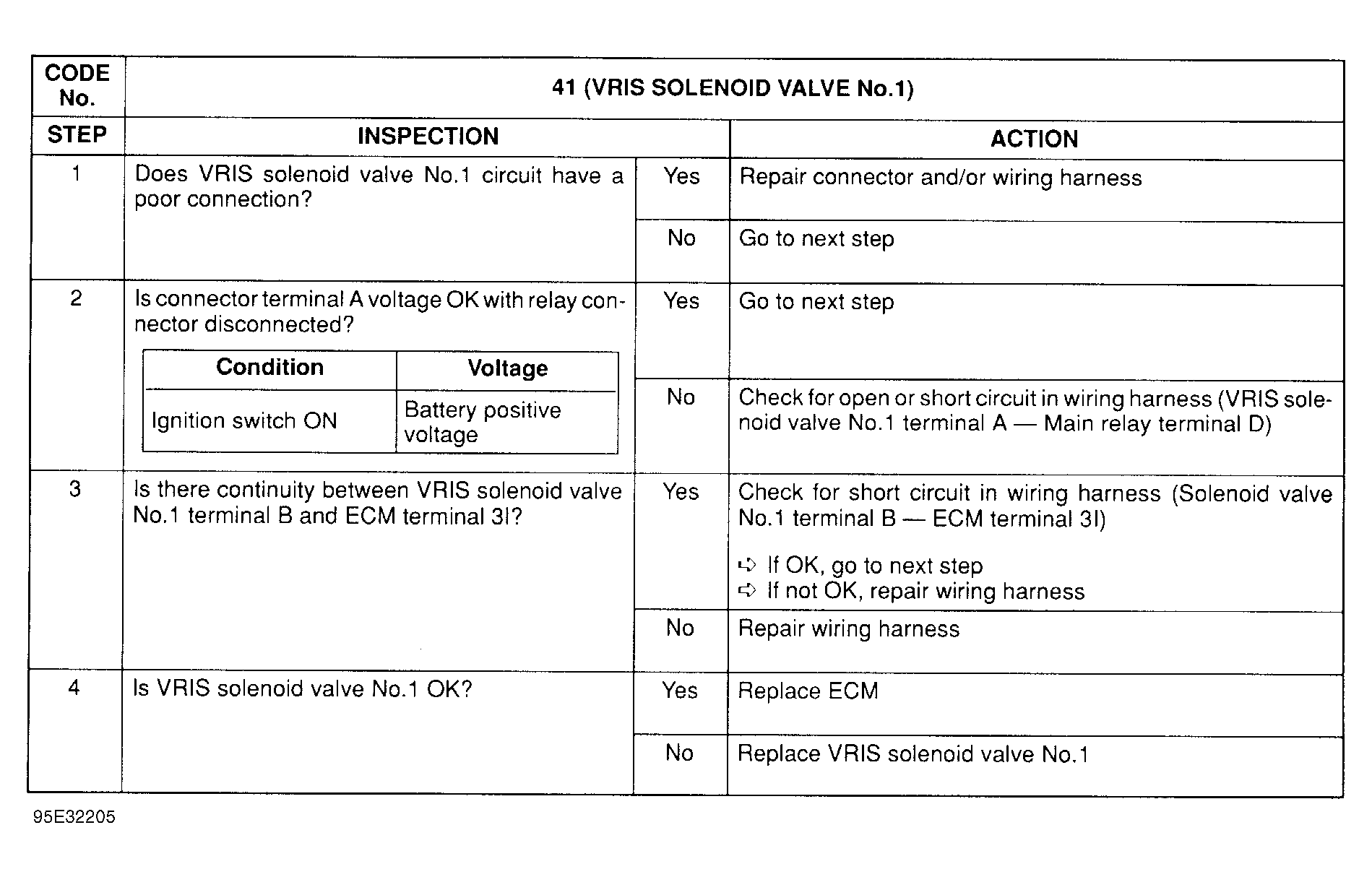

Fig 1: Trouble Code No. 41 VRIS No. 1 Solenoid Valve

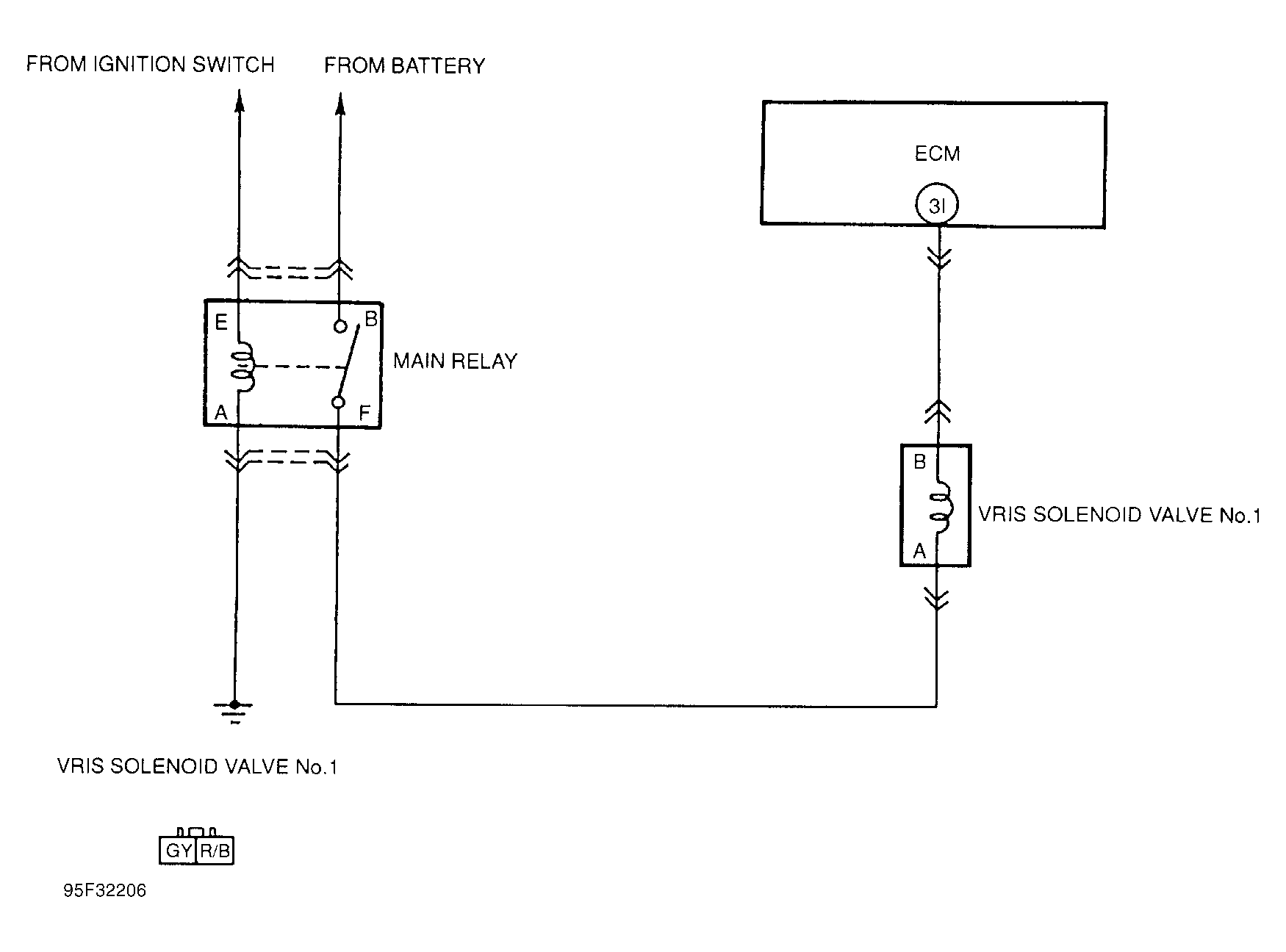

Fig 2: Trouble Code No. 41 VRIS NO. 1 Solenoid Valve Circuit Diagram
