Code 17 & 24: Heated Oxygen Sensor - Inversion

WARNING: This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

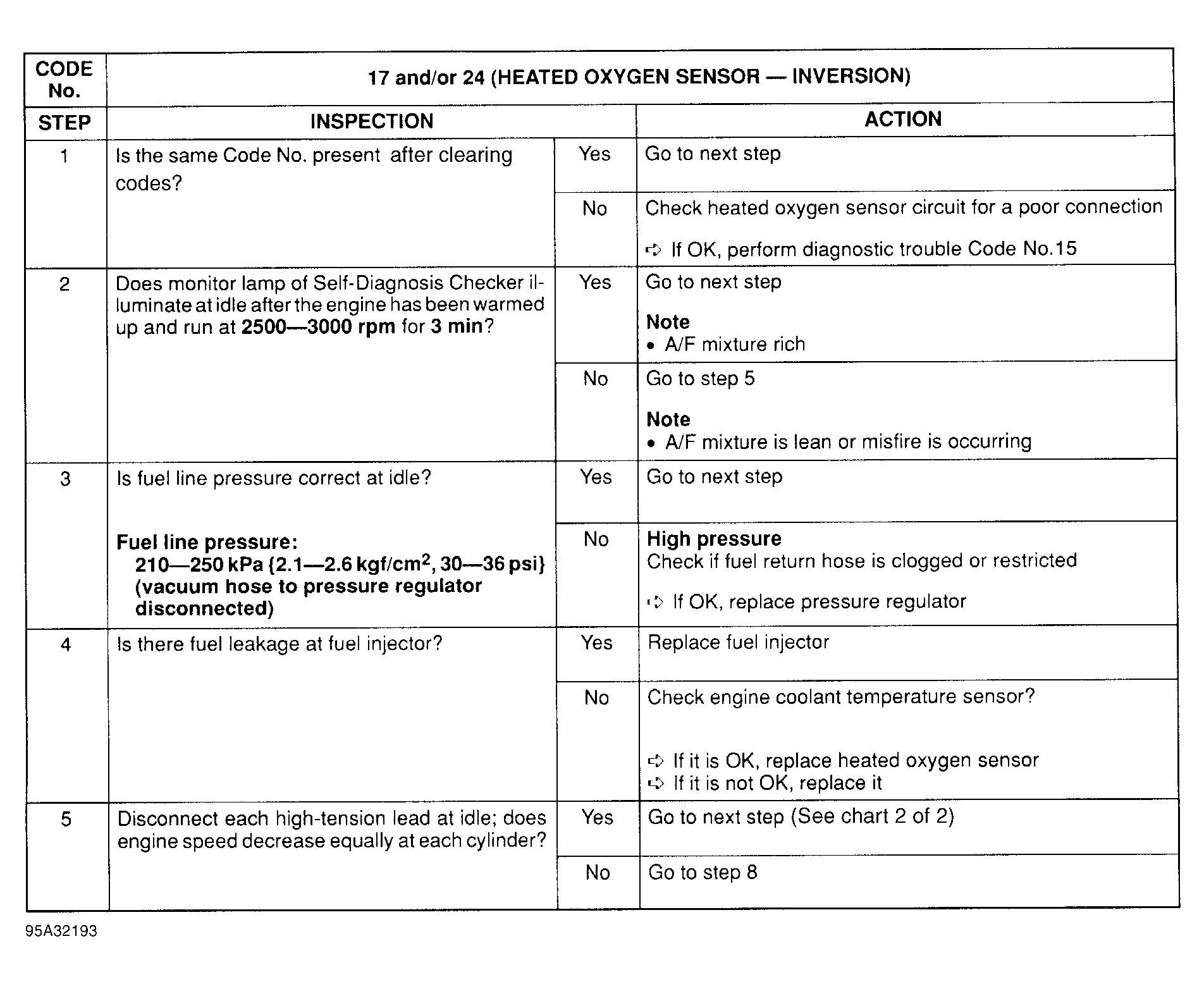

Fig 1: Trouble Code No. 17/24 Heated Oxygen Sensor - Inversion (1 Of 2)

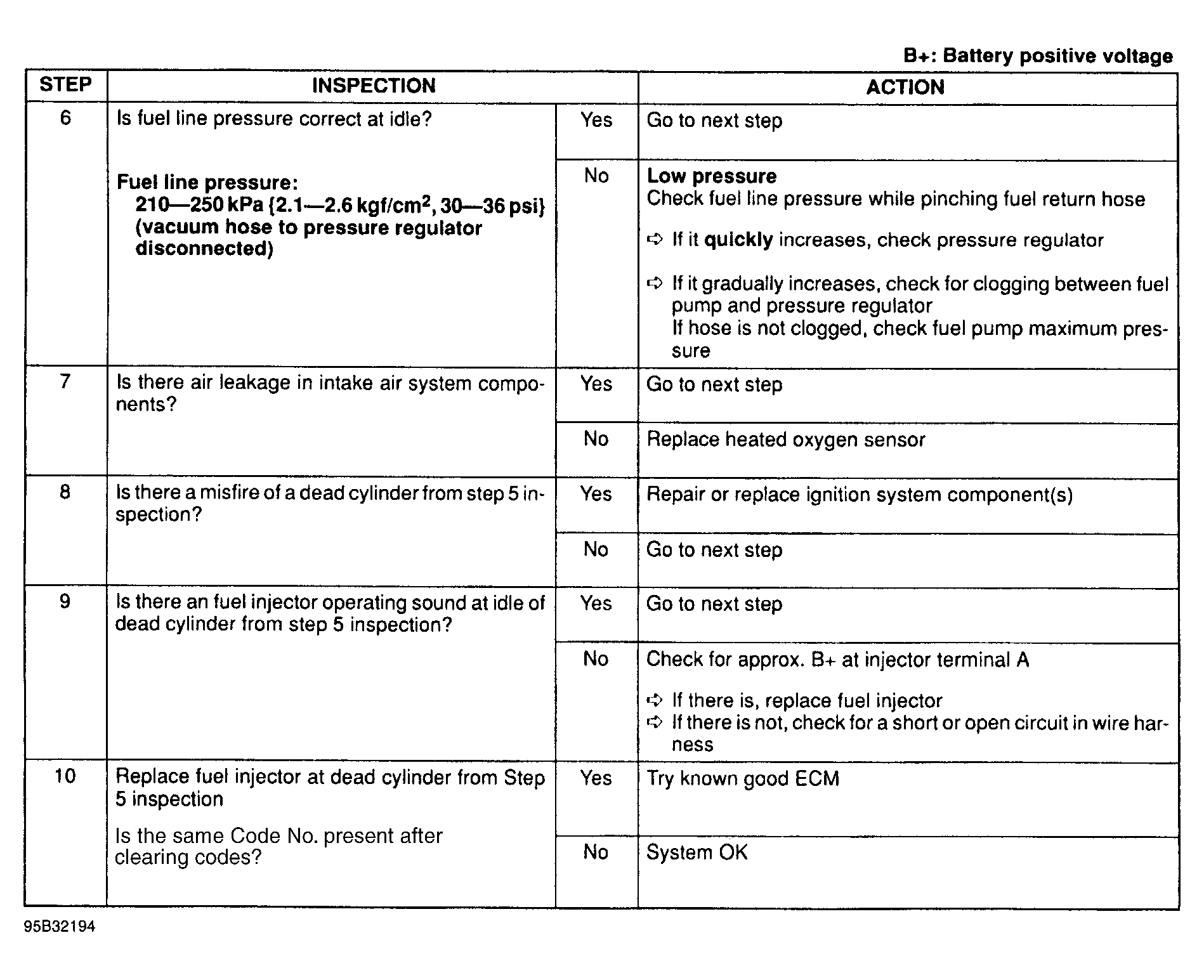

Fig 2: Trouble Code No. 17/24 Heated Oxygen Sensor - Inversion (2 Of 2)

Fig 3: Trouble Code No. 17/24 Heated Oxygen Sensor Circuit Diagram
