Code 28: EGR Vacuum Solenoid Valve

WARNING: This page is about a different car, the 1995 Mazda 929. However, it is still accessible from the selected car via links, so may be relevant.

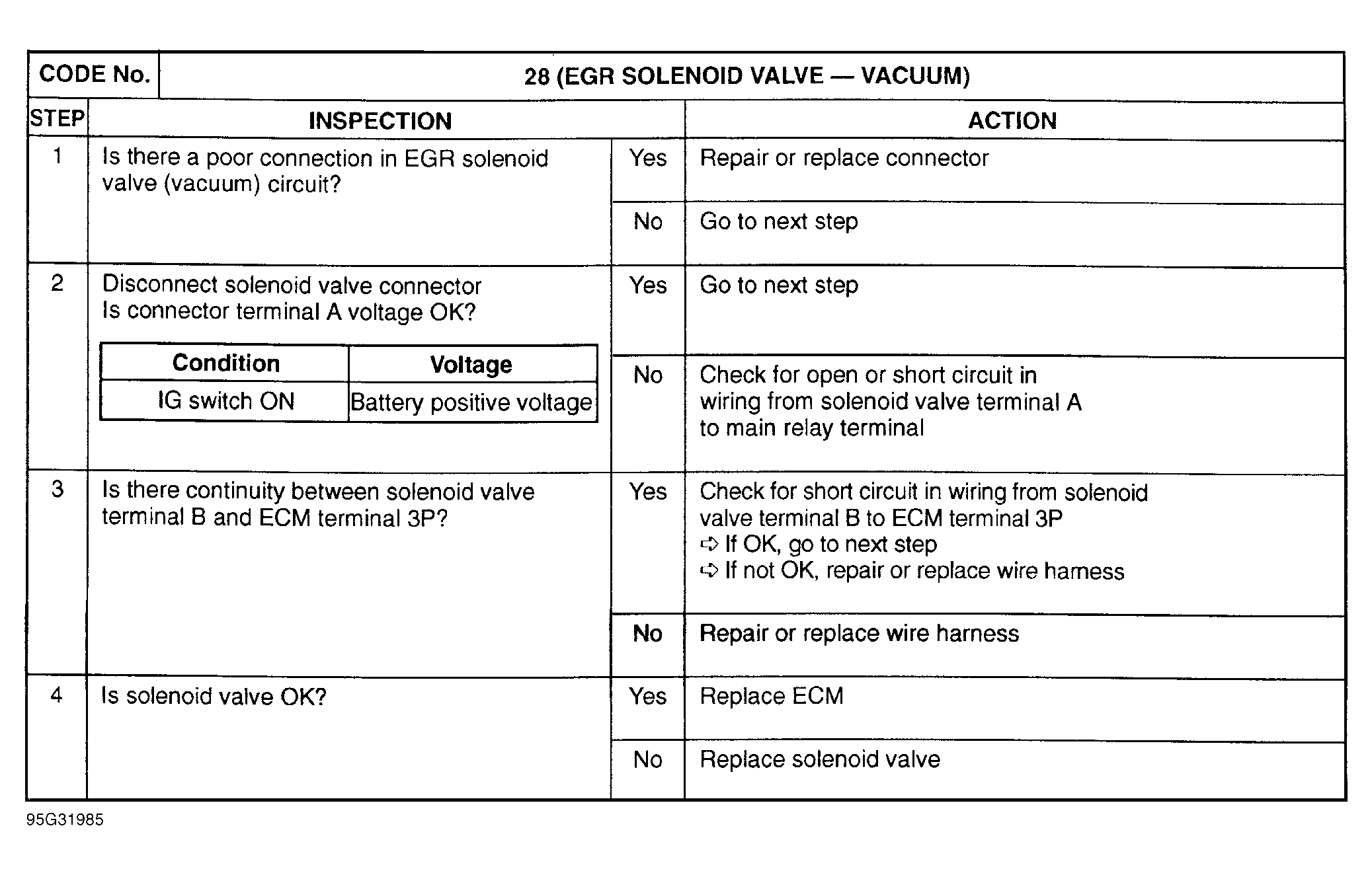

Fig 1: Trouble Code No. 28 EGR Vacuum Solenoid Valve
G95G31985

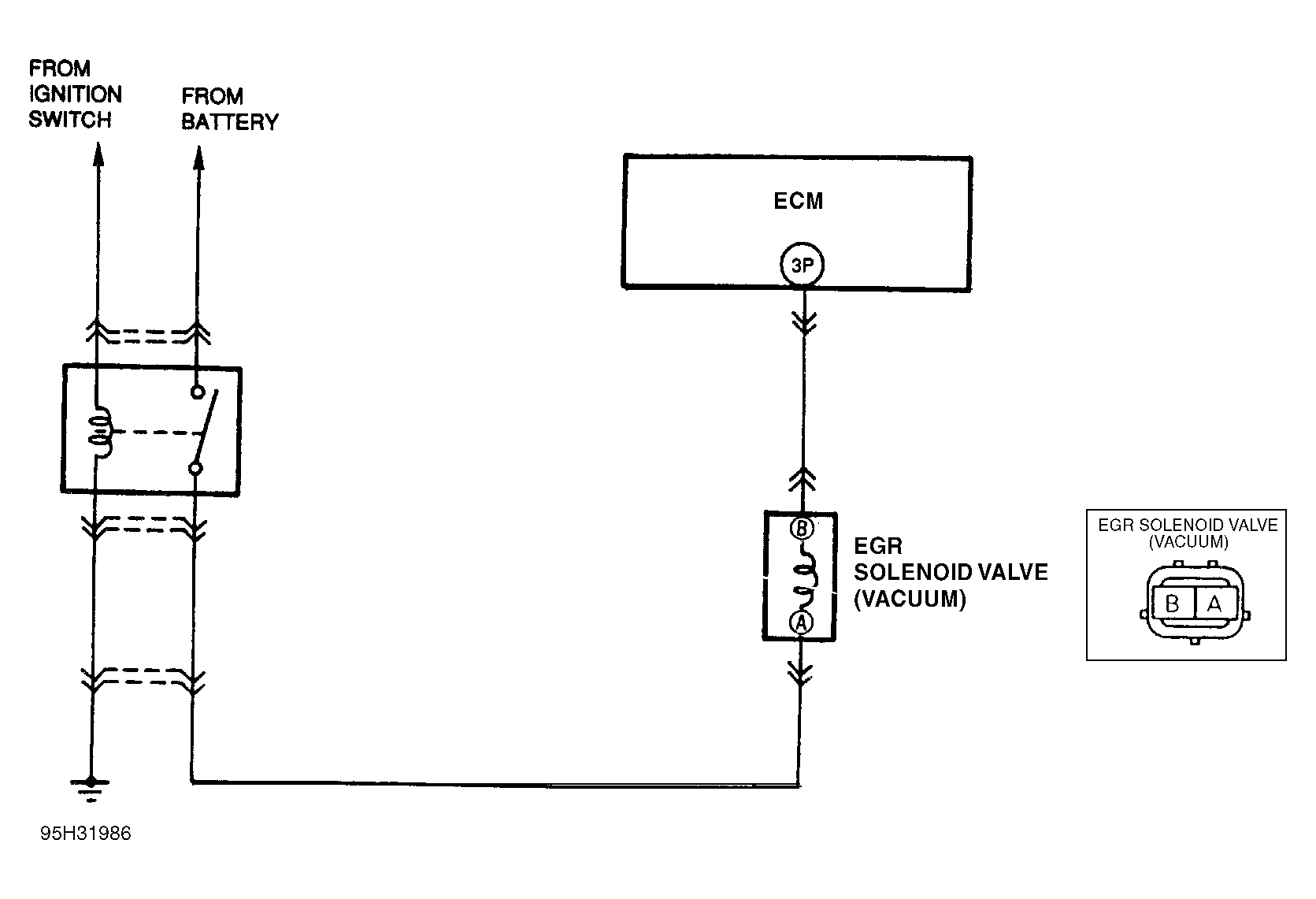

Fig 2: Trouble Code No. 28 EGR Solenoid Valve Circuit Diagram
G95H31986
