Codes P1650 & P1651: Power Steering Pressure Switch Circuit Malfunction

WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

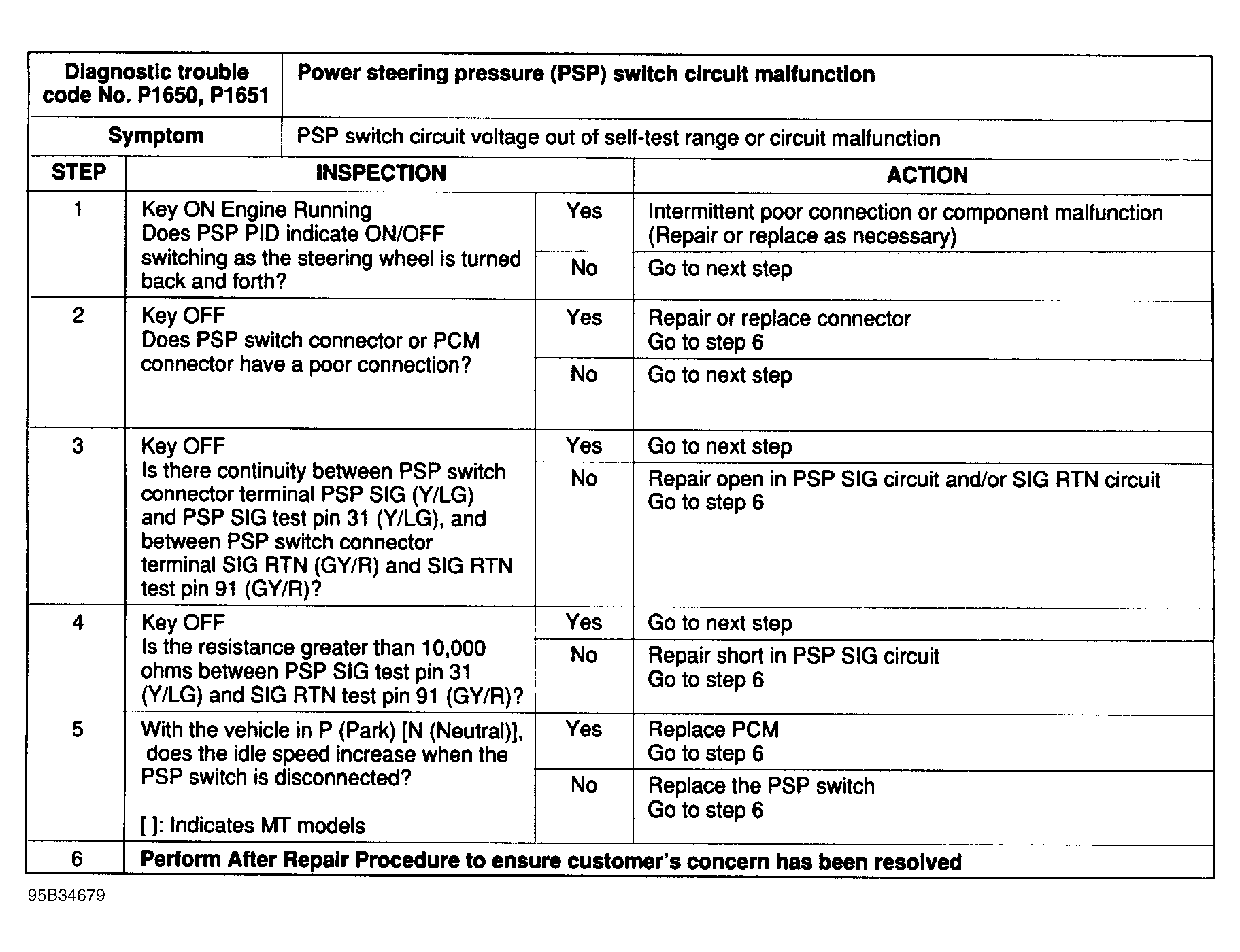

Fig 1: Trouble Codes No. P1650 & P1651 Power Steering Pressure Switch Circuit Malfunction (B2300)
G95B34679
Fig 2: Trouble Codes No. P1650 & P1651 Power Steering Pressure (PSP) Switch Circuit Diagram (B2300)
G95E34680
