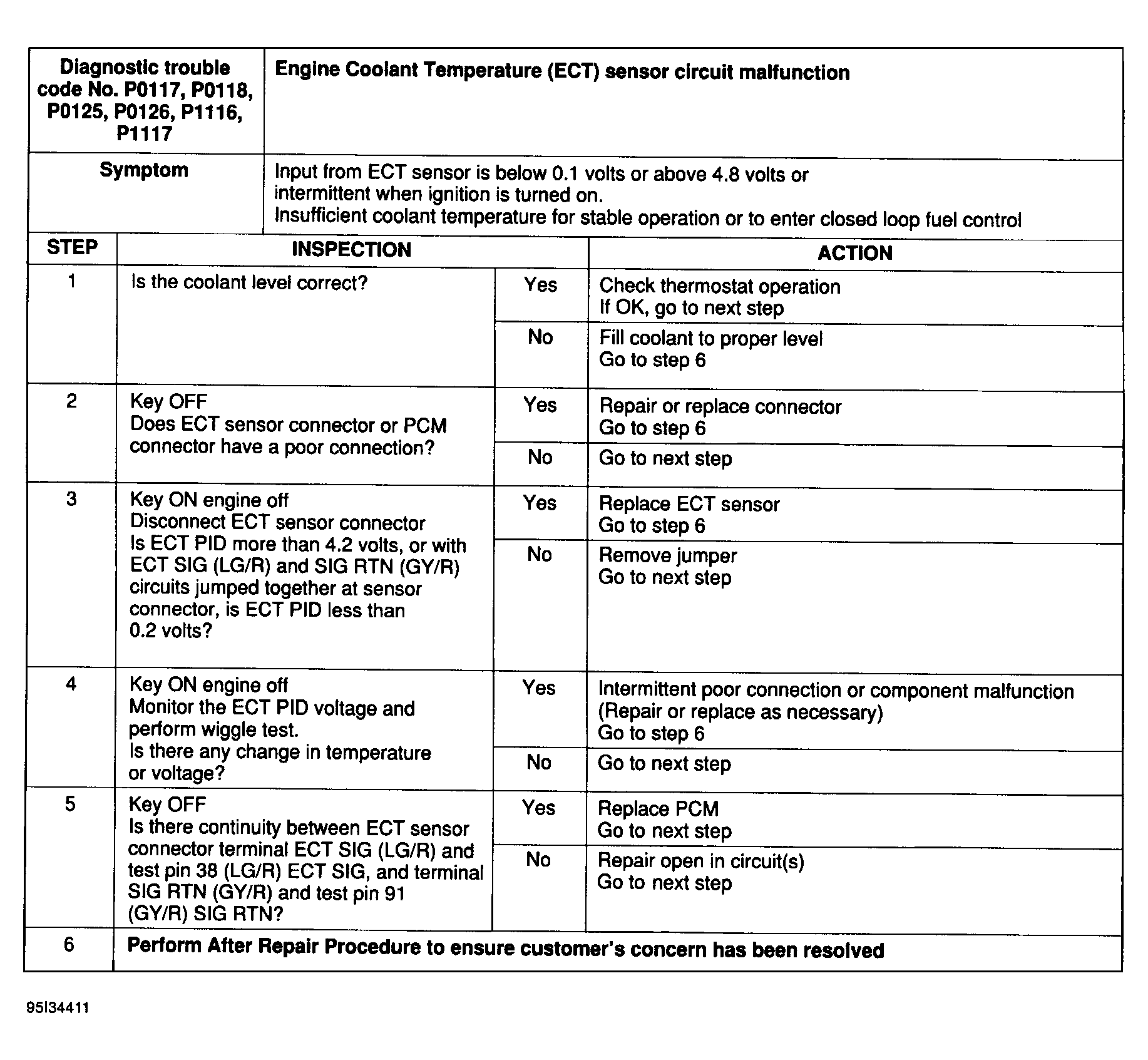

Codes P0117, P0118, P0125, P0126, P1116 & P1117: Engine Coolant Temperature Sensor Circuit Malfunction

WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
