Codes P0112, P0113 & P1112: Intake Air Temperature Sensor Circuit Malfunction

WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

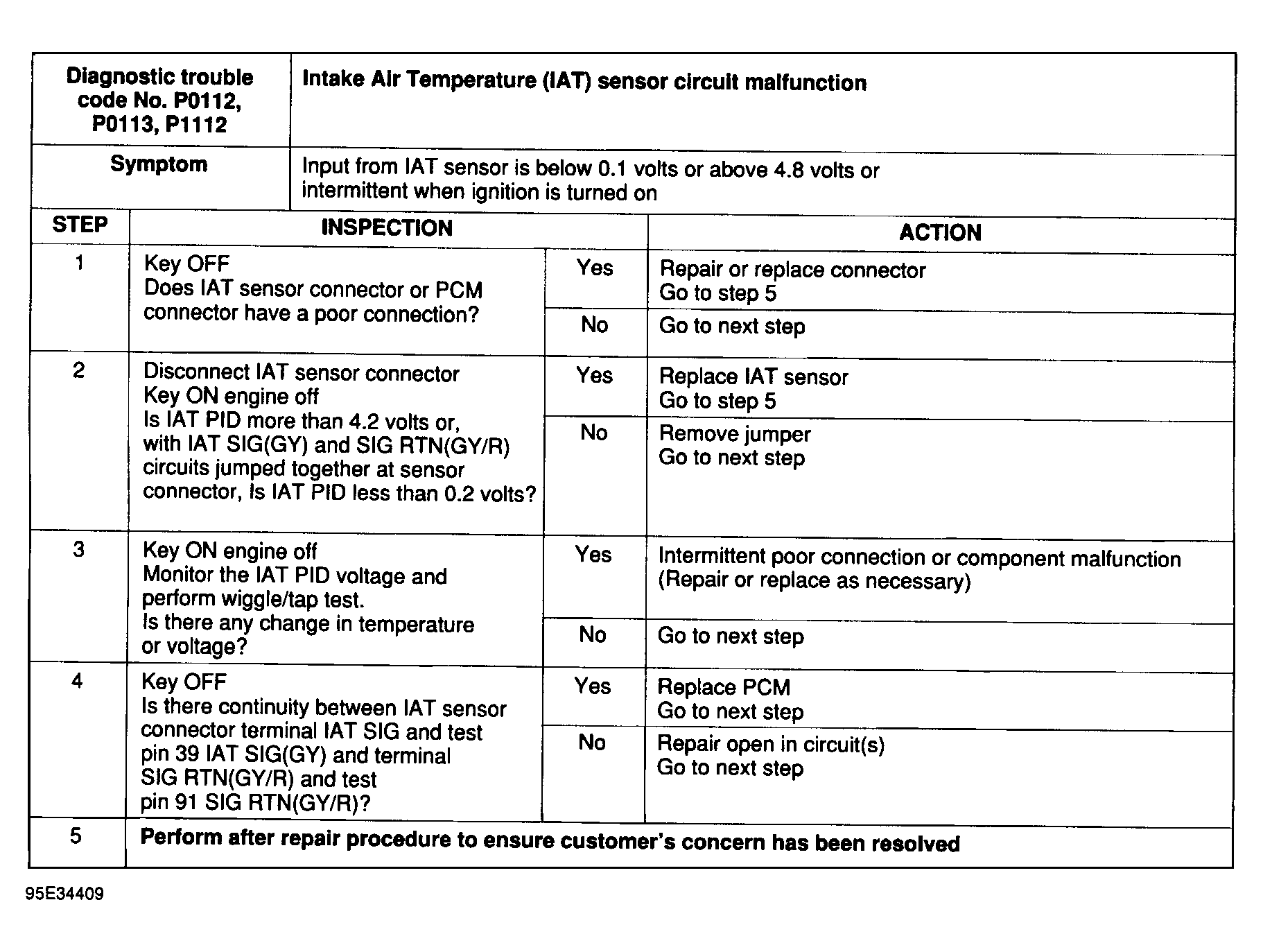

Fig 1: Trouble Codes No. P0112, P0113 & P1112 Intake Air Temperature Sensor Circuit Malfunction
G95E34409
Fig 2: Trouble Codes No. P0112, P0113 & P1112 Intake Air Temperature - IAT) Sensor & Engine Coolant Temperature (ECT) Sensor Circuit Diagram
G95H34410
