Section 37 (Engine Controls - Tests W/Codes)
>>
Trouble Code Charts
>>
Code 32: Secondary Air Switching Valve
Code 32: Secondary Air Switching Valve
WARNING:
This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

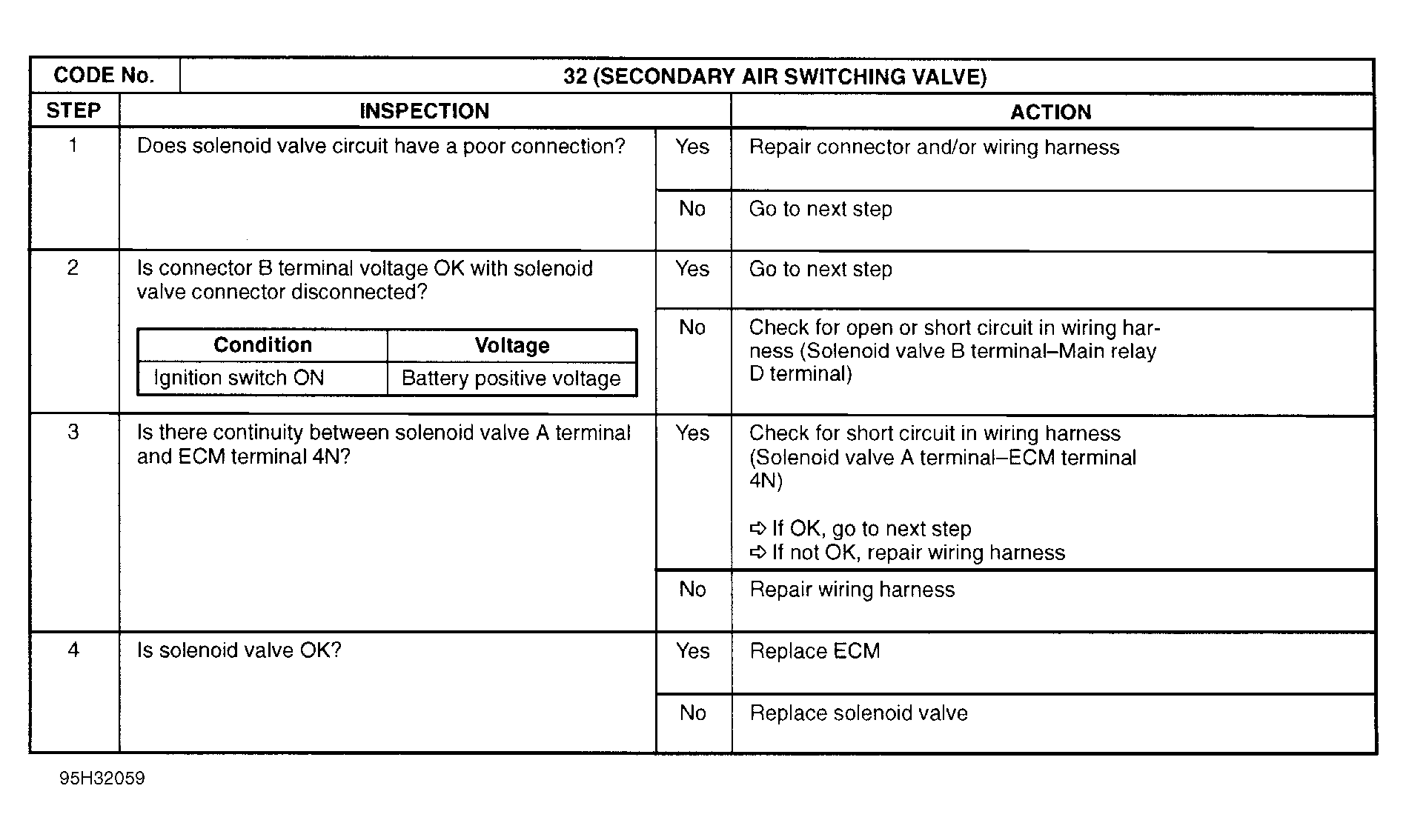

Fig 1: Trouble Code No. 32 Secondary Air Switching Valve

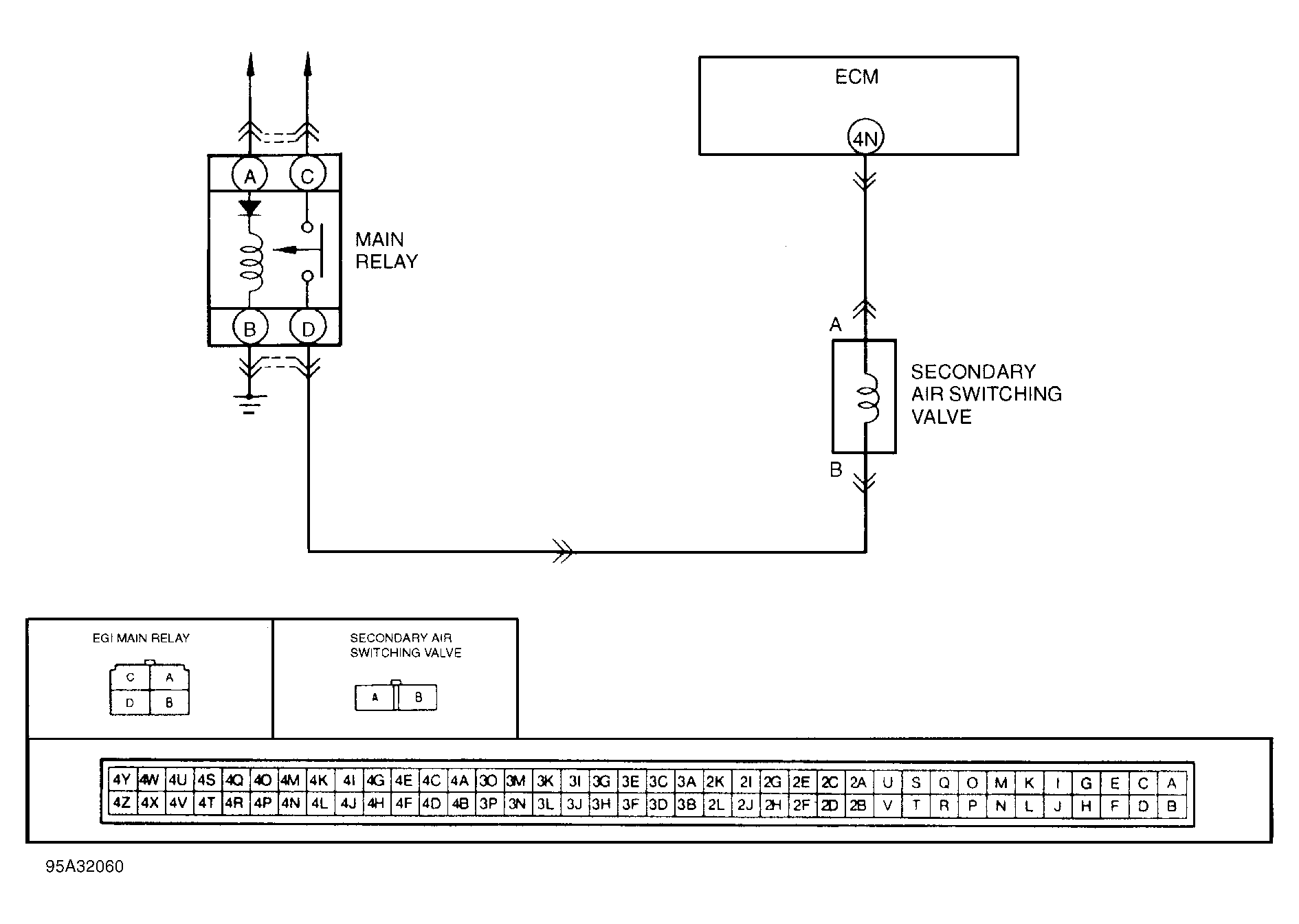

Fig 2: Trouble Code No. 32 Secondary Air Switching Valve Circuit Diagram
