CODE 50: DOUBLE THROTTLE CONTROL SOLENOID VALVe

WARNING: This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

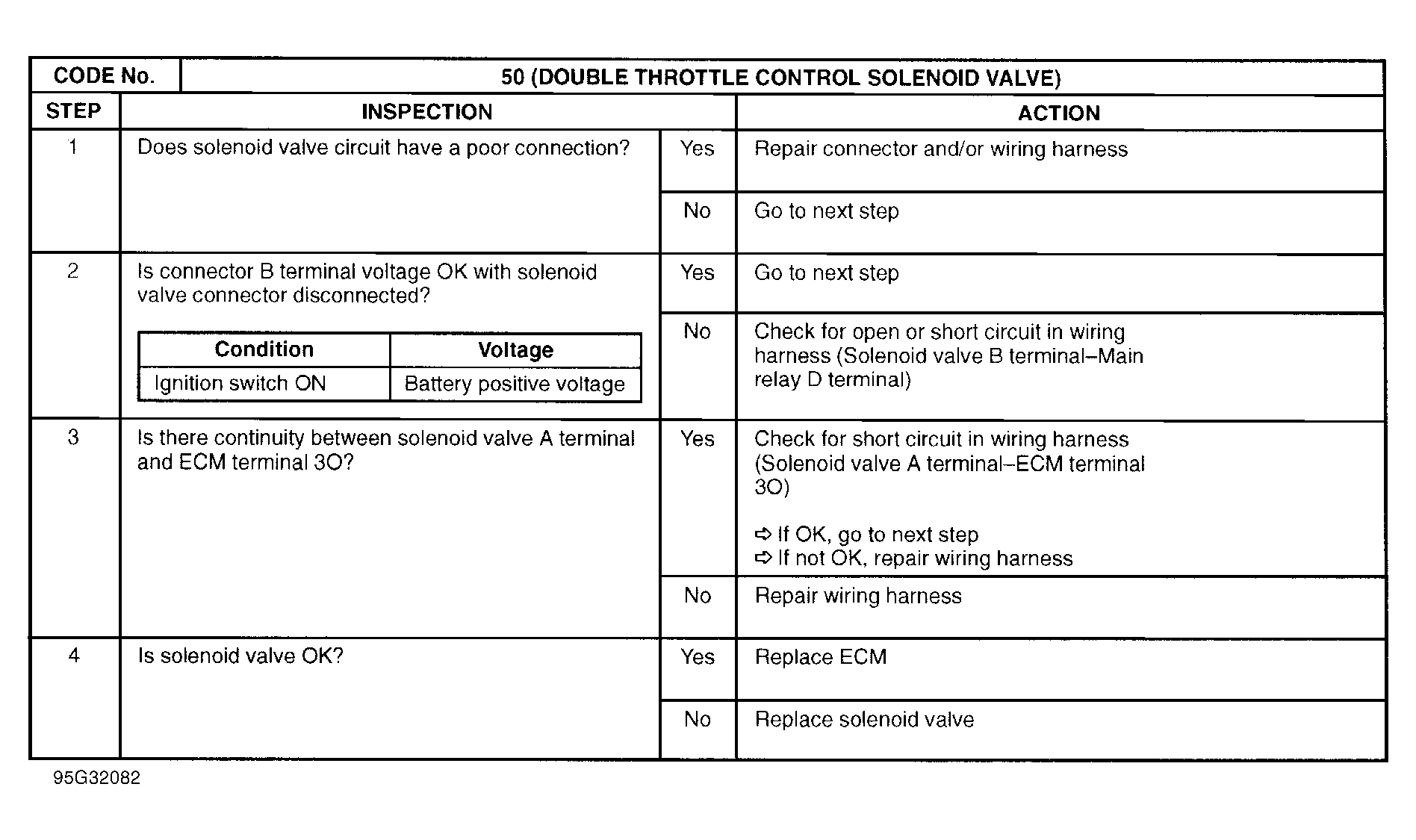

Fig 1: Trouble Code No. 50 Double Throttle Control Solenoid Valve
G95G32082

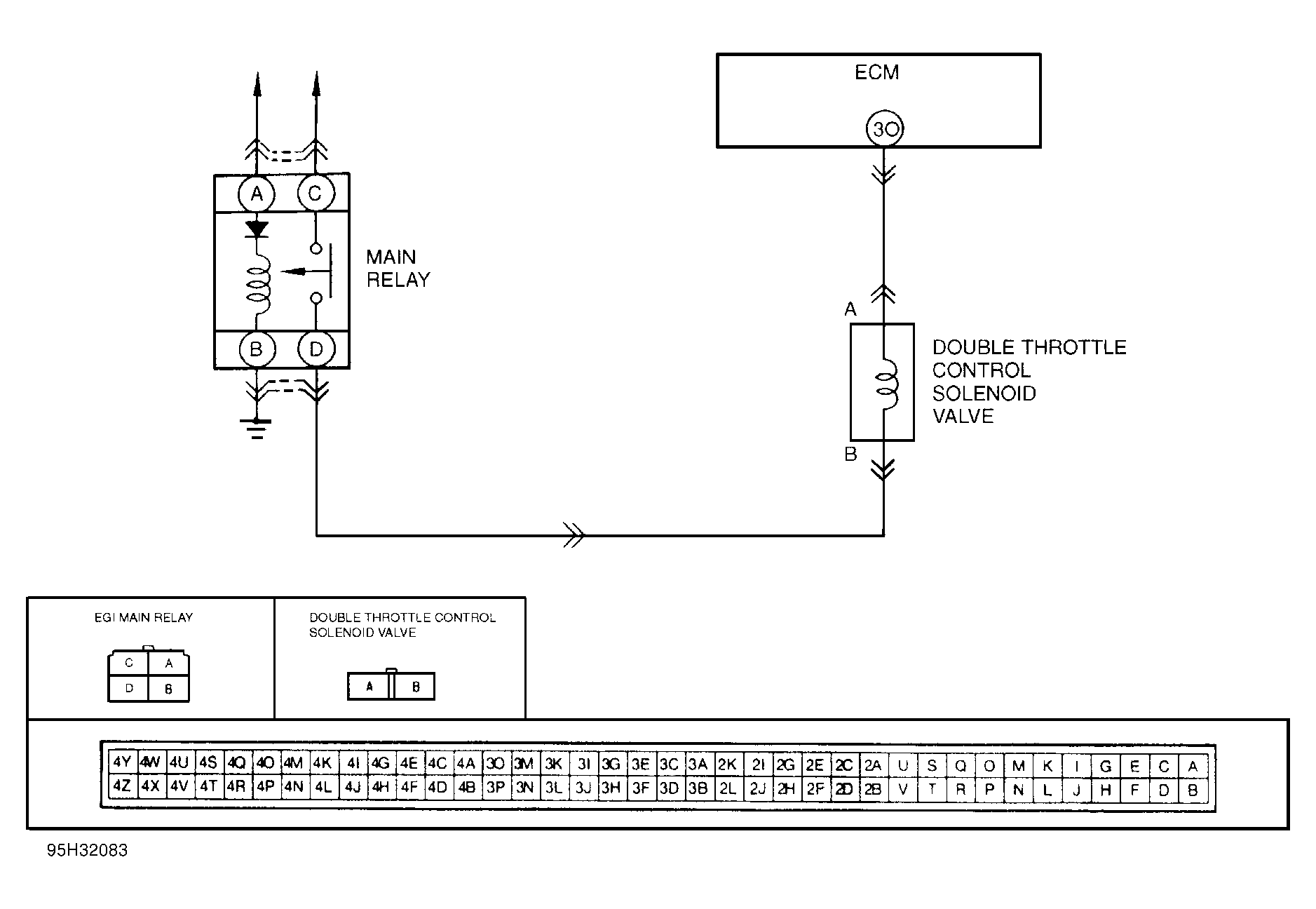

Fig 2: Trouble Code No. 50 Double Throttle Control Solenoid Valve Circuit Diagram
G95H32083
