High Tension Wire Routing

WARNING: This page is about a different car, the 1995 Mazda RX-7. However, it is still accessible from the selected car via links, so may be relevant.

For high tension wire routing, see Fig 1 .

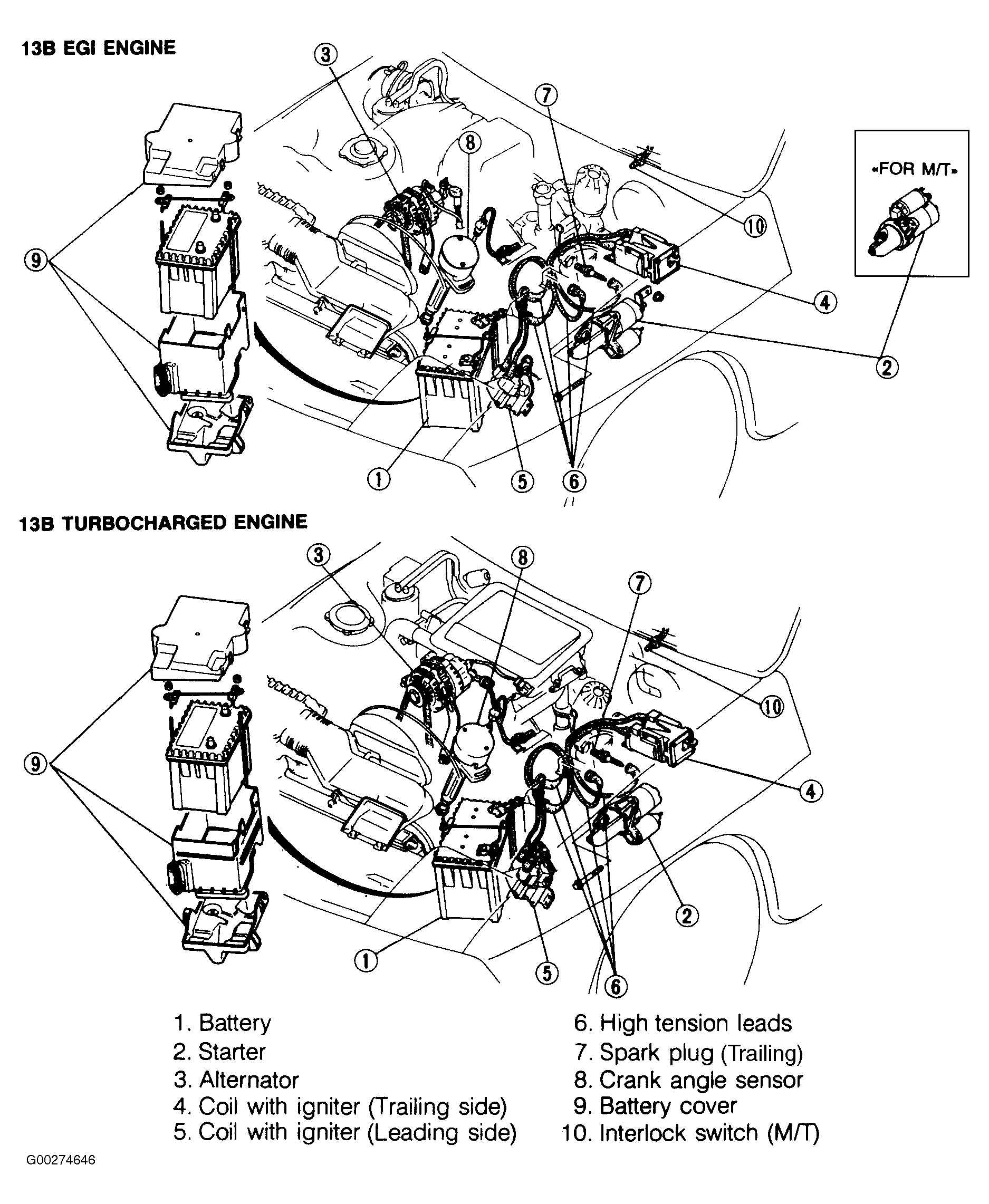

Fig 1: Identifying High Tension Wire Location
G00274646Courtesy of MAZDA MOTORS CORP.
