Trouble Code Identification Charts: Notes

WARNING: This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

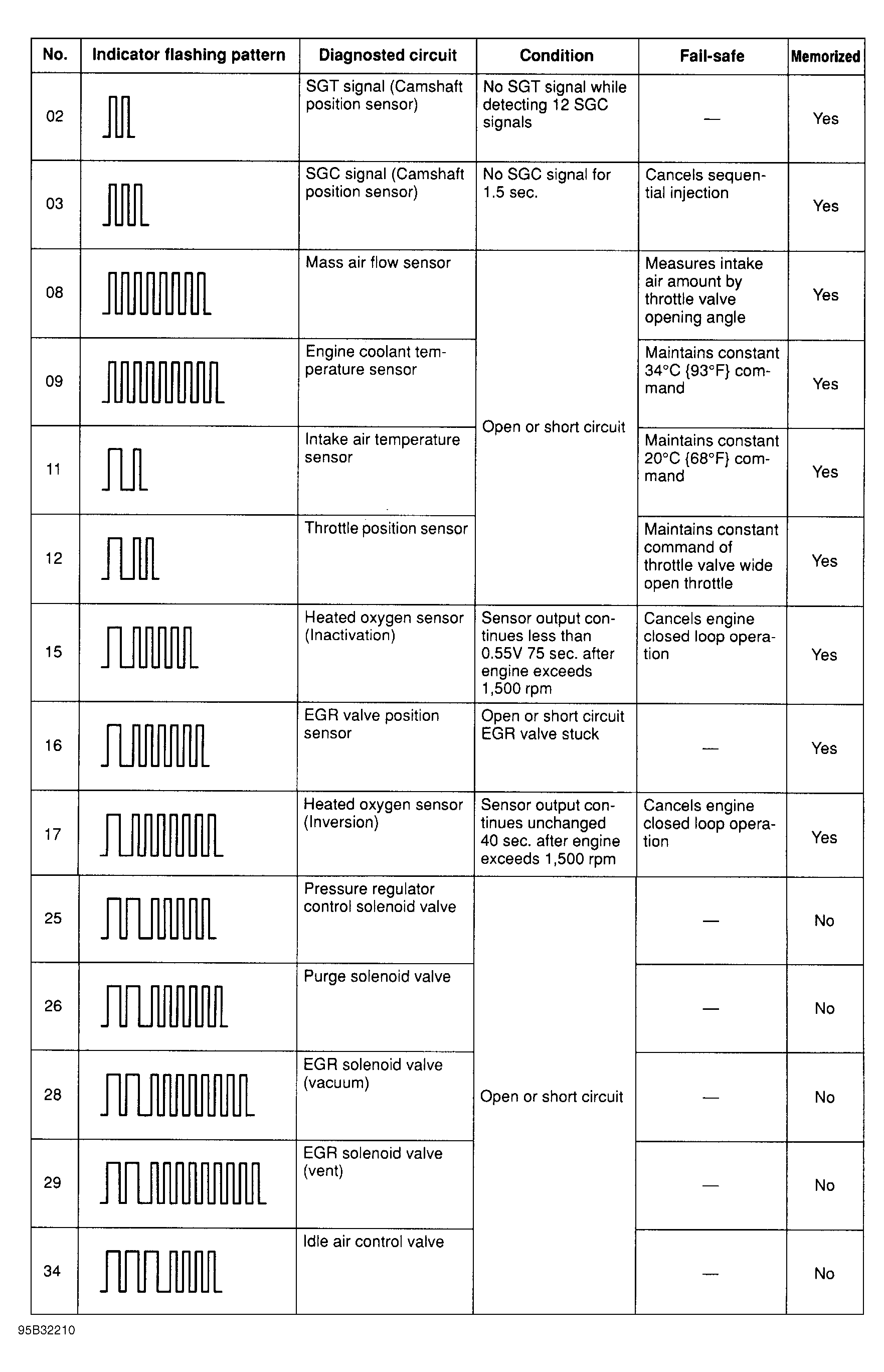

Fig 1: Diagnostic Trouble Code Definition Chart
G95B32210Courtesy of MAZDA MOTORS CORP.
