Code 9: Engine Coolant Temperature Sensor

WARNING: This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

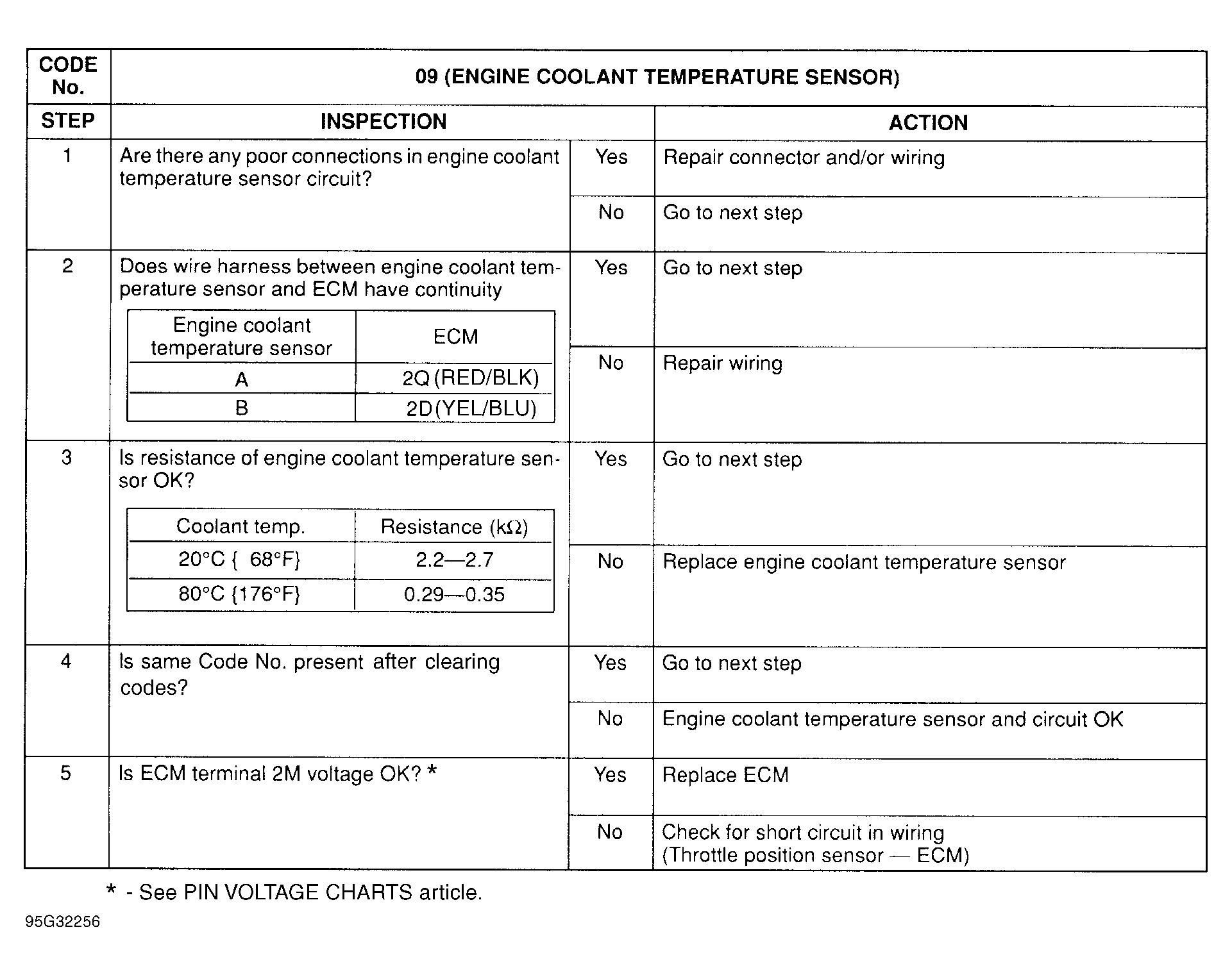

Fig 1: Trouble Code No. 9 Engine Coolant Temperature Sensor
G95G32256

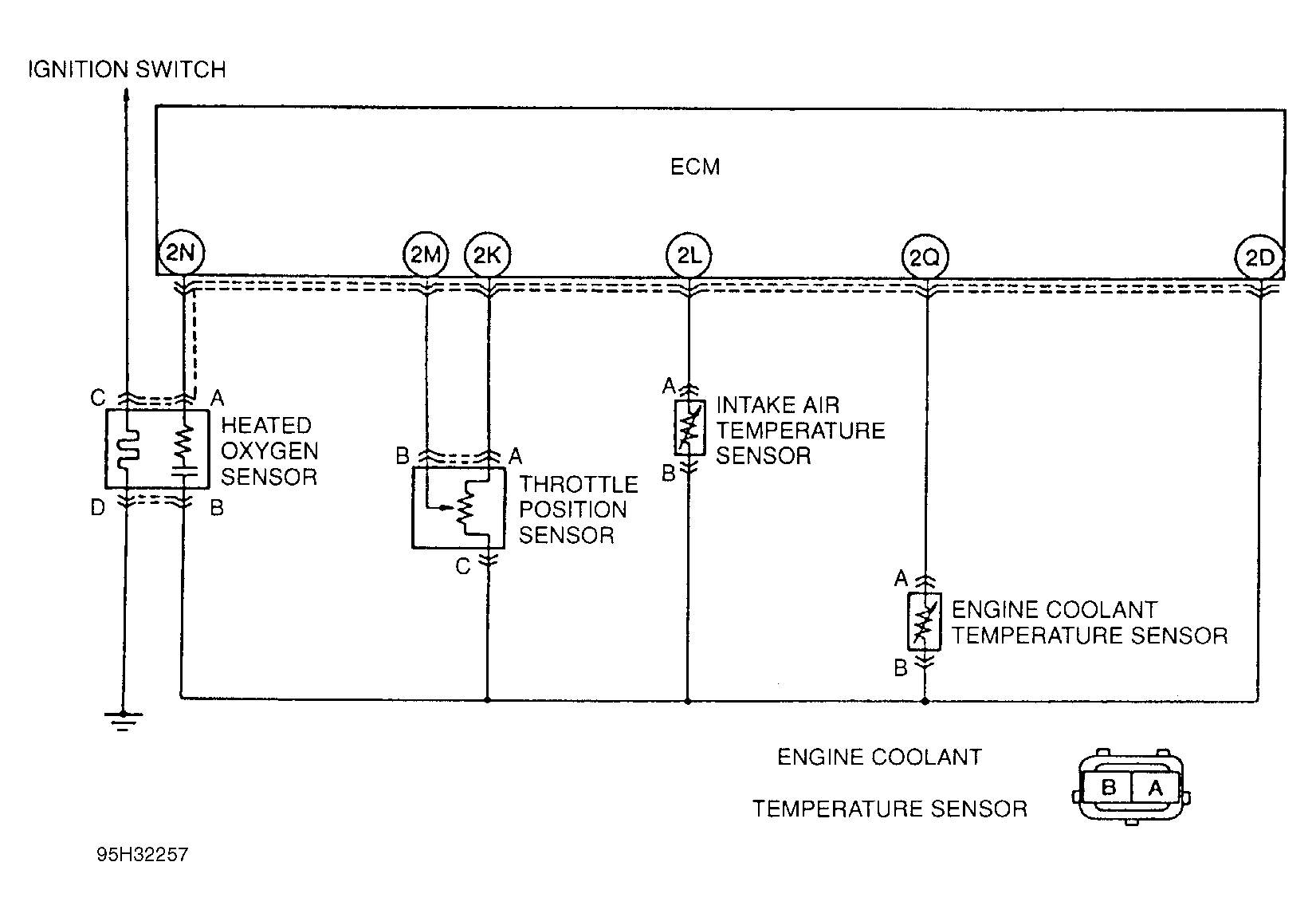

Fig 2: Trouble Code No. 9 Engine Coolant Temperature Sensor Circuit Diagram
G95H32257
