WARNING: This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

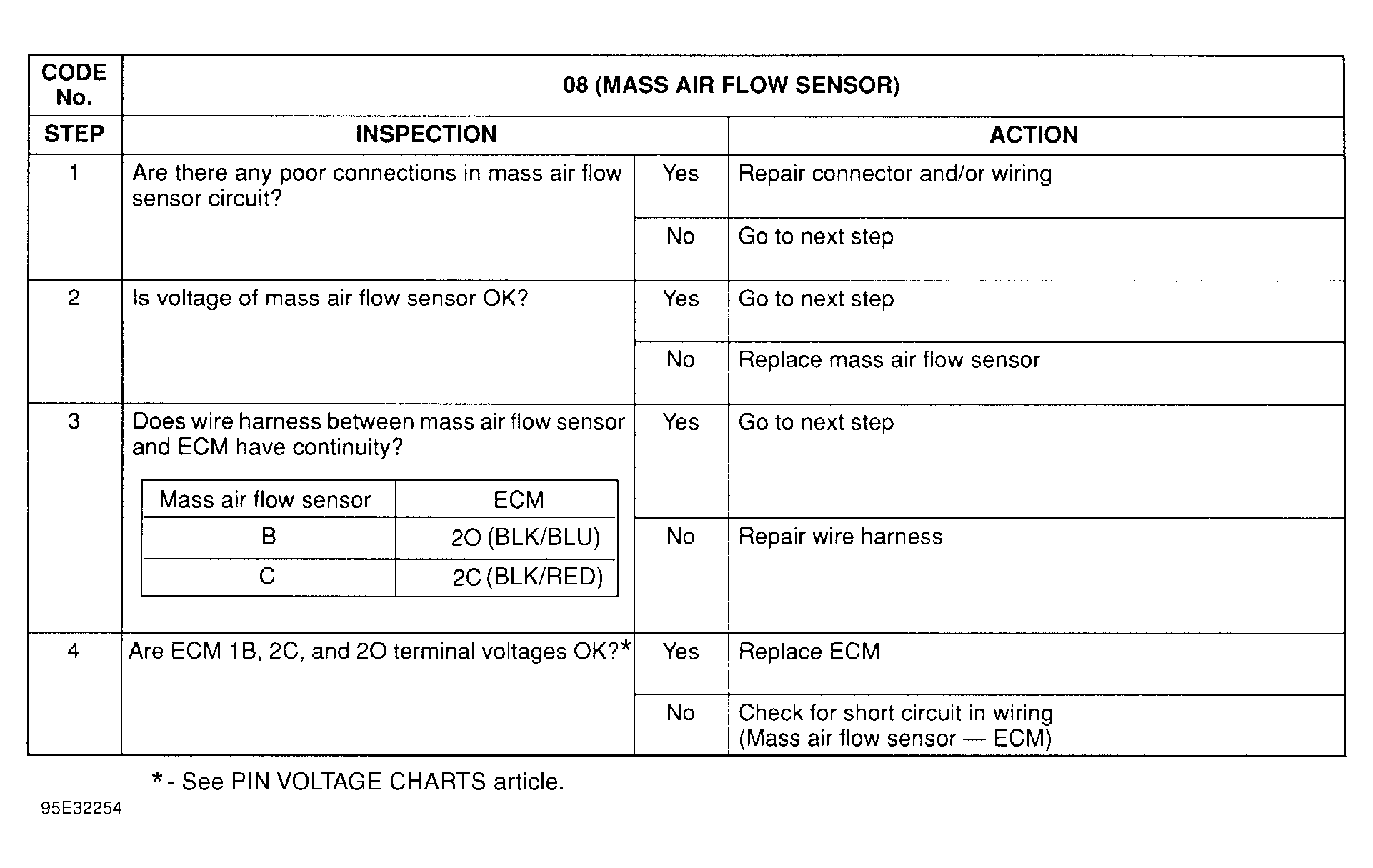

Fig 1: Trouble Code No. 8 Mass Air Flow Sensor

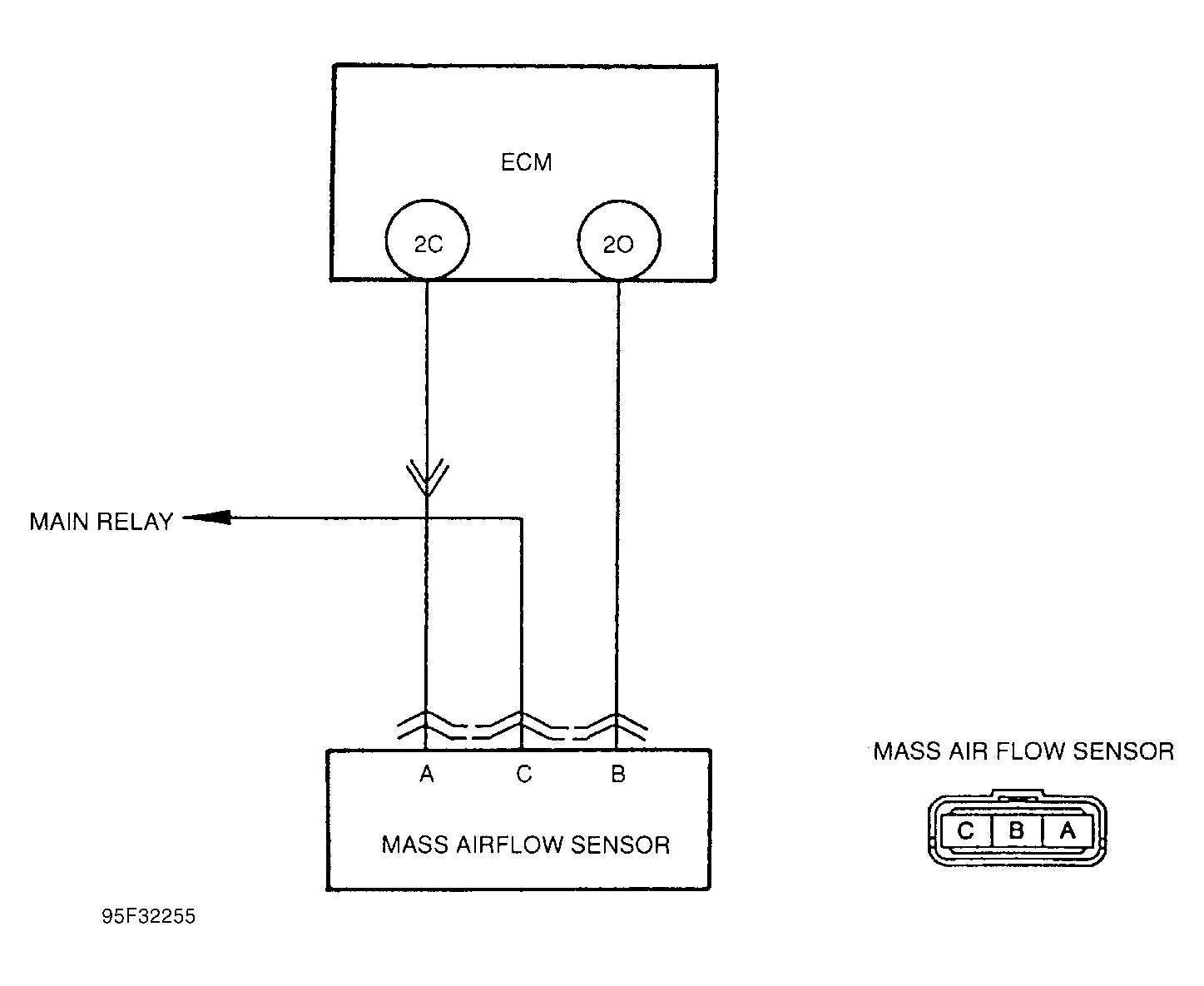

Fig 2: Trouble Code No. 8 Mass Air Flow Sensor Circuit Diagram
