Code 12: Throttle Position Sensor

WARNING: This page is about a different car, the 1995 Mazda MX-6 and 1995 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

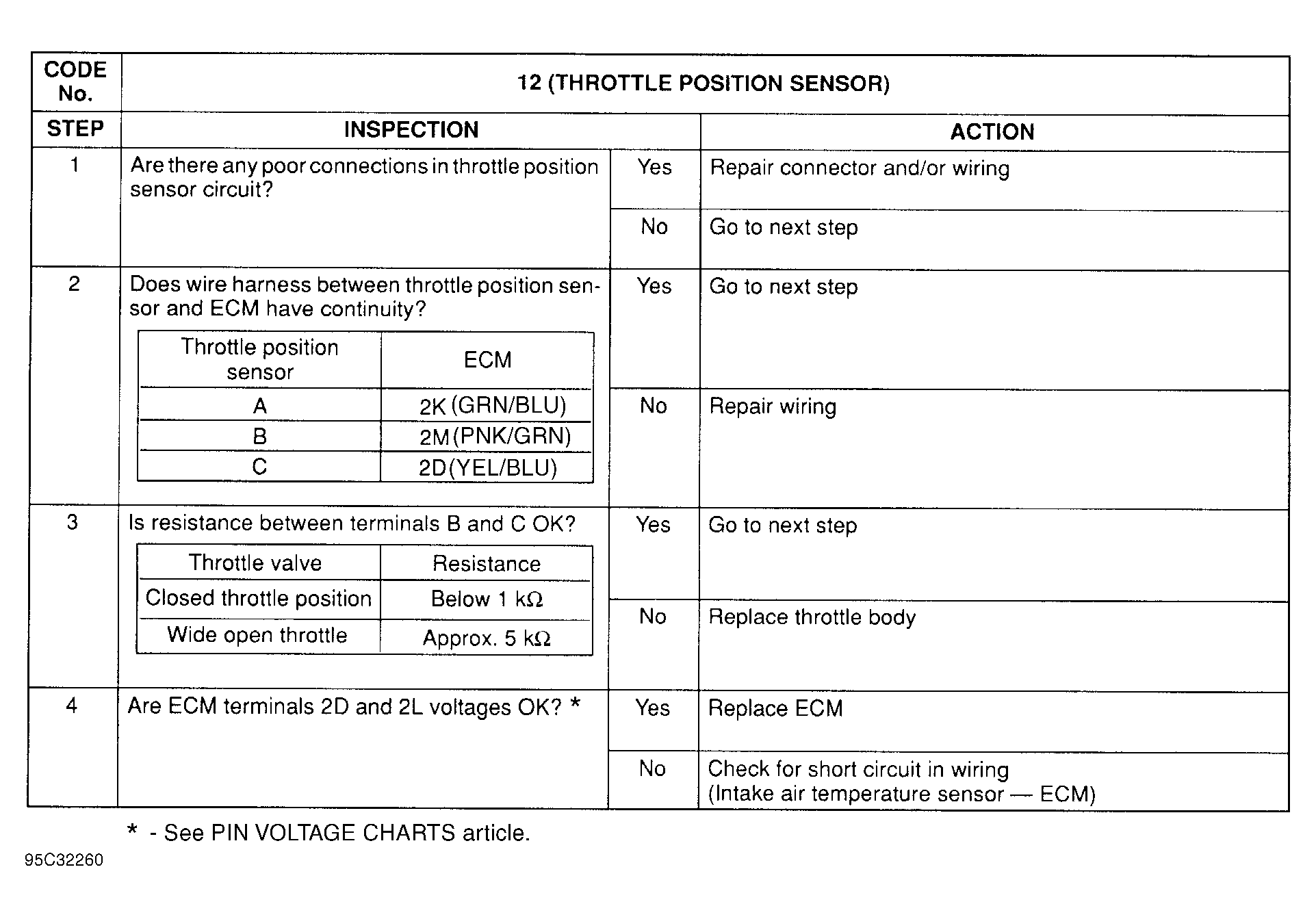

Fig 1: Trouble Code No. 12 Throttle Position Sensor
G95C32260

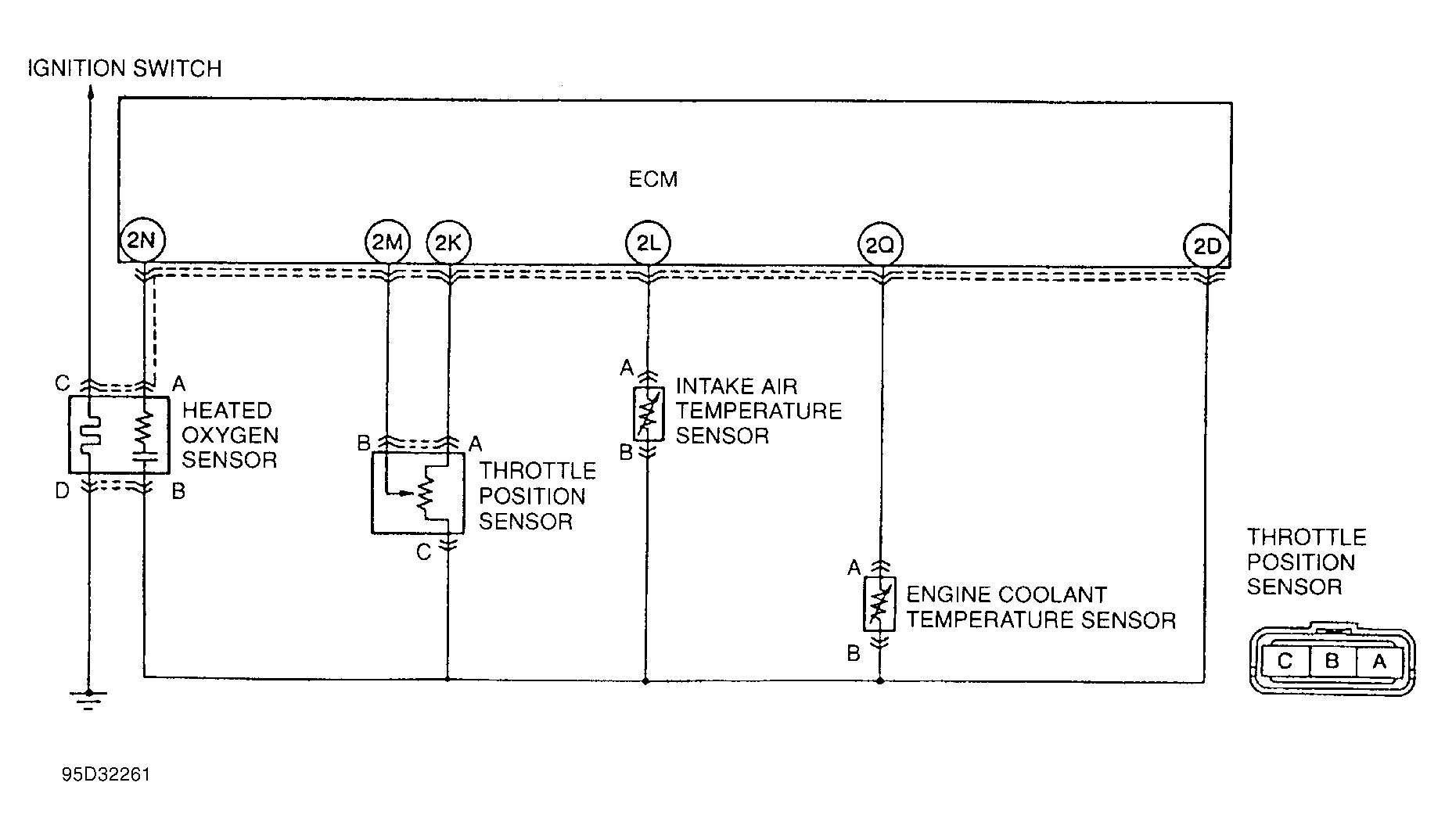

Fig 2: Trouble Code No. 12 throttle position sensor circuit diagram
G95D32261
