Installation (Ranger)

WARNING: This page is about a different car, the 1997 Ford Ranger, 1996 Ford Ranger, and 1996 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.

Install stud in axle (if removed). Install lower seat and spacer over stud bolt. Position upper end of spring coil in spring stop area of upper spring seat. To complete installation, reverse removal procedure.

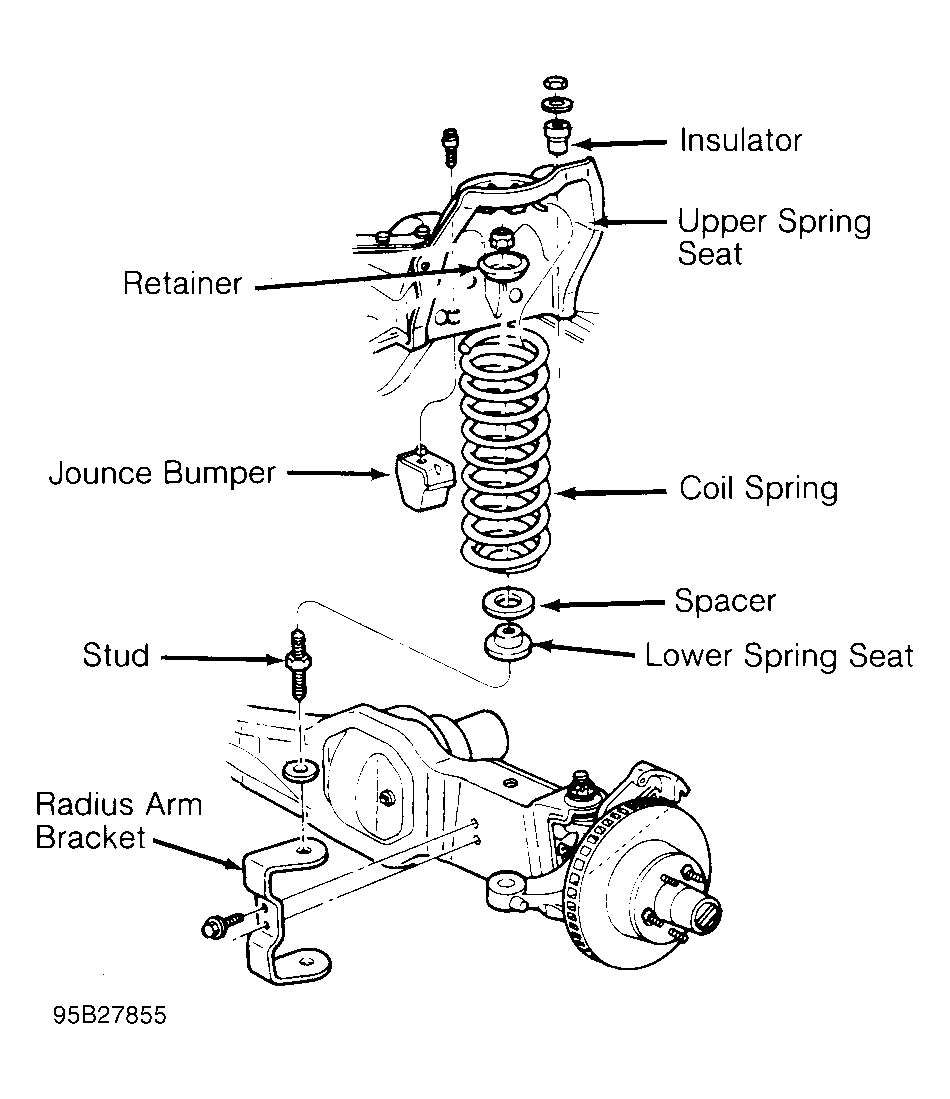

Fig 1: Exploded View Of Coil Spring (Ranger)

Courtesy of FORD MOTOR CO.
